Dip switch
1. Soft start function. OFF - enabled; ON - disabled.
2. Limit switch setting. OFF- normal open (N.O.); ON - normal close (N.C.).
3. Automatic close time.
4. Automatic close time.
Setting for automatic close time:
3 OFF 4 ON: automatic close time is 12s,
3 ON 4 OFF: automatic close time is 24s,
3 ON 4 ON: automatic close time is 36s,
3 OFF 4 OFF: no automatic close function.
5. Must at ON position (PY600AC without obstacle detection function, must put 5 at ON position).

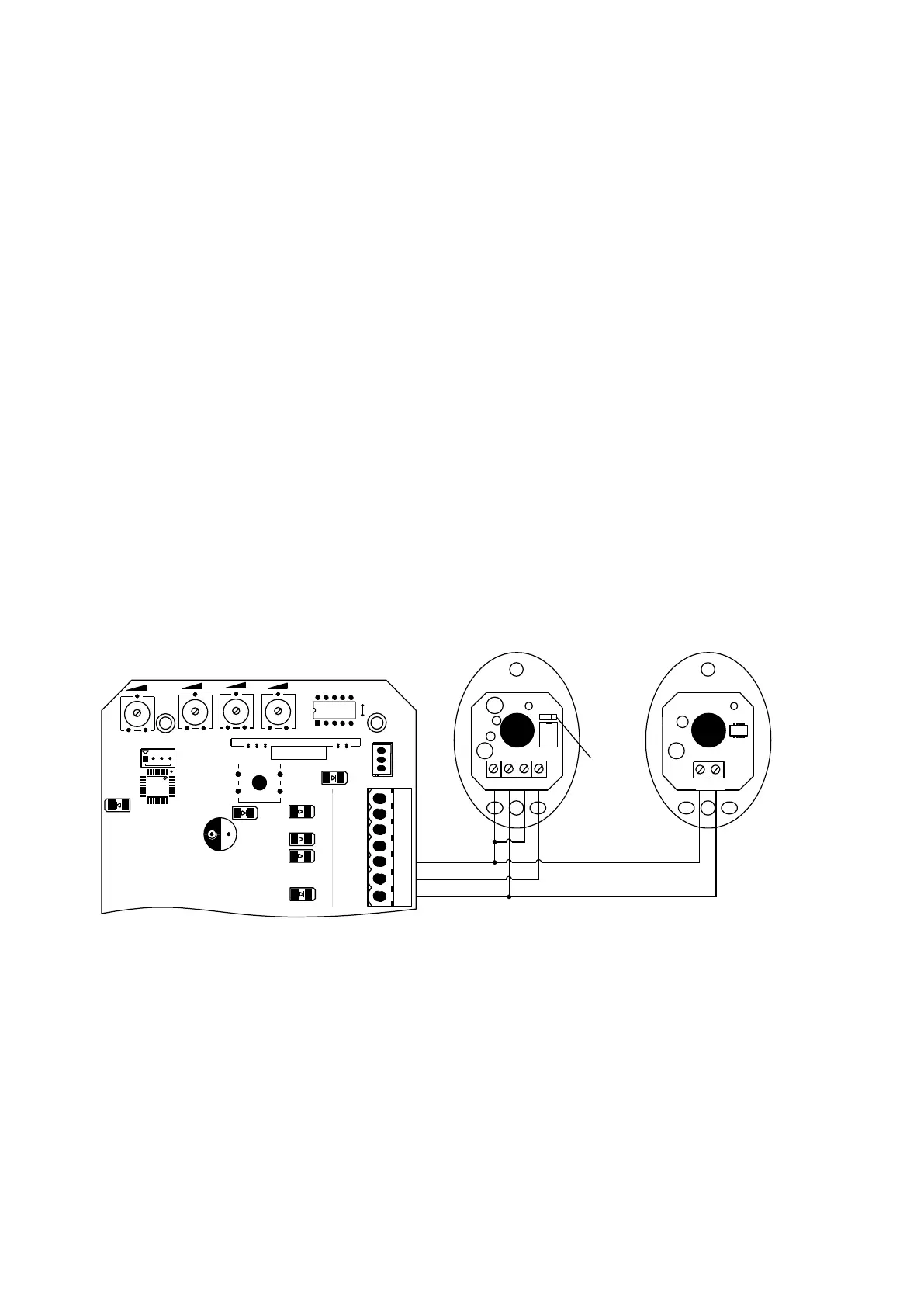

Infrared connection
Infrared photocell function: In the closing process, when infrared ray of the infrared sensor is
covered, the gate will open immediately, to protect user and property security.
The distance between photocell receiver and photocell emitter should be not less than 2 meters,
otherwise will affect the induction of the photocell.
If connect the infrared photocell, please remove the short connection between 8 and 9 on the J5
terminal.
1313
7
9
1010
1111
1212
8
SPEEDSPEED GNDGND VCCVCC
OFFOFF
ONON
X1X1
J5J5
U1U1
HALLHALL
U2U2
S1S1
VR3VR3
VR4VR4
LEARNLEARN
POWERPOWER
J1J1
1313
1111
VR1VR1
VR2VR2
8
1010
SW1SW1
ComCom OutOut
SetSet NCNC
InfraredInfrared receiverreceiver connectingconnecting
InfraredInfrared emitteremitter connectingconnecting
－ ＋
－ ＋
