JOYTECH PY600AC - Installation; Installation Drawing; Size of Main Engine and Accessories

4
/ Three button mode
Limit switch
Spring limit switch
Magnetic limit switch
Noise
≤58dB
Working duty
S2, 15min
Recording of up remote controls
25
Frequency
433.92 MHz
Working temperature
-20°C ~ +70°C
Package weight
9.4Kg
4. Installation
PY600AC sliding gate opener is applicable to gate weight less than 600kg, and length of the sliding
gate should be less than 12m. The drive mode adopts the gear and rack transmission. This gate
opener must be installed inside the enclosure or yard for protection.
4.1 Installation drawing
⑤
④
③
②
0
8
5 6
97
4
1 2 3
⑧
①
⑦
⑥
Figure 1

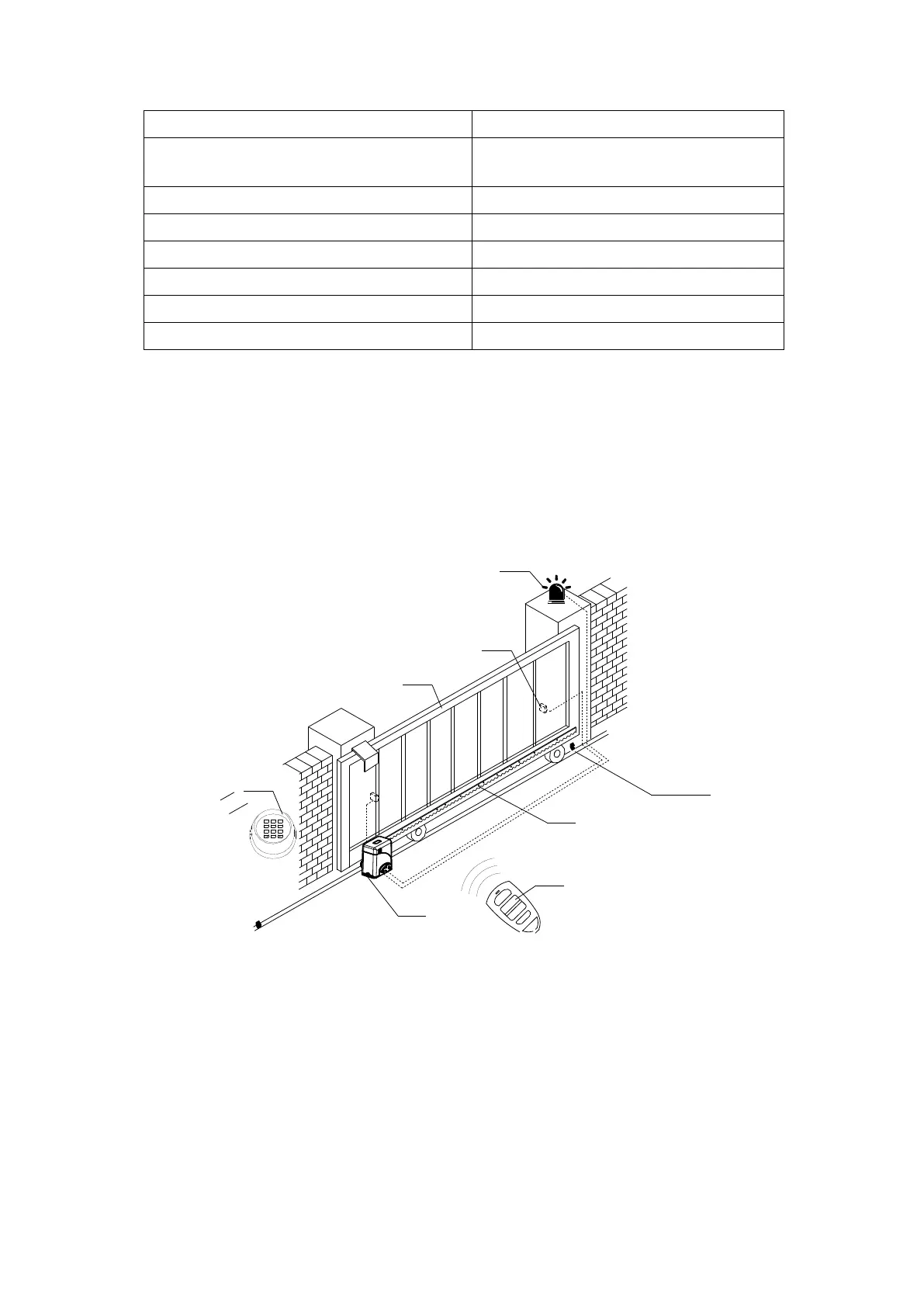

① Gate opener; ② Wireless keypad (optional); ③ Gate; ④ Infrared sensor (optional);
⑤ Alarm lamp (optional); ⑥ Safety stop block; ⑦ Gear rack; ⑧ Remote control;
4.2 Size of main engine and accessories
4.2.1 Size of main engine
