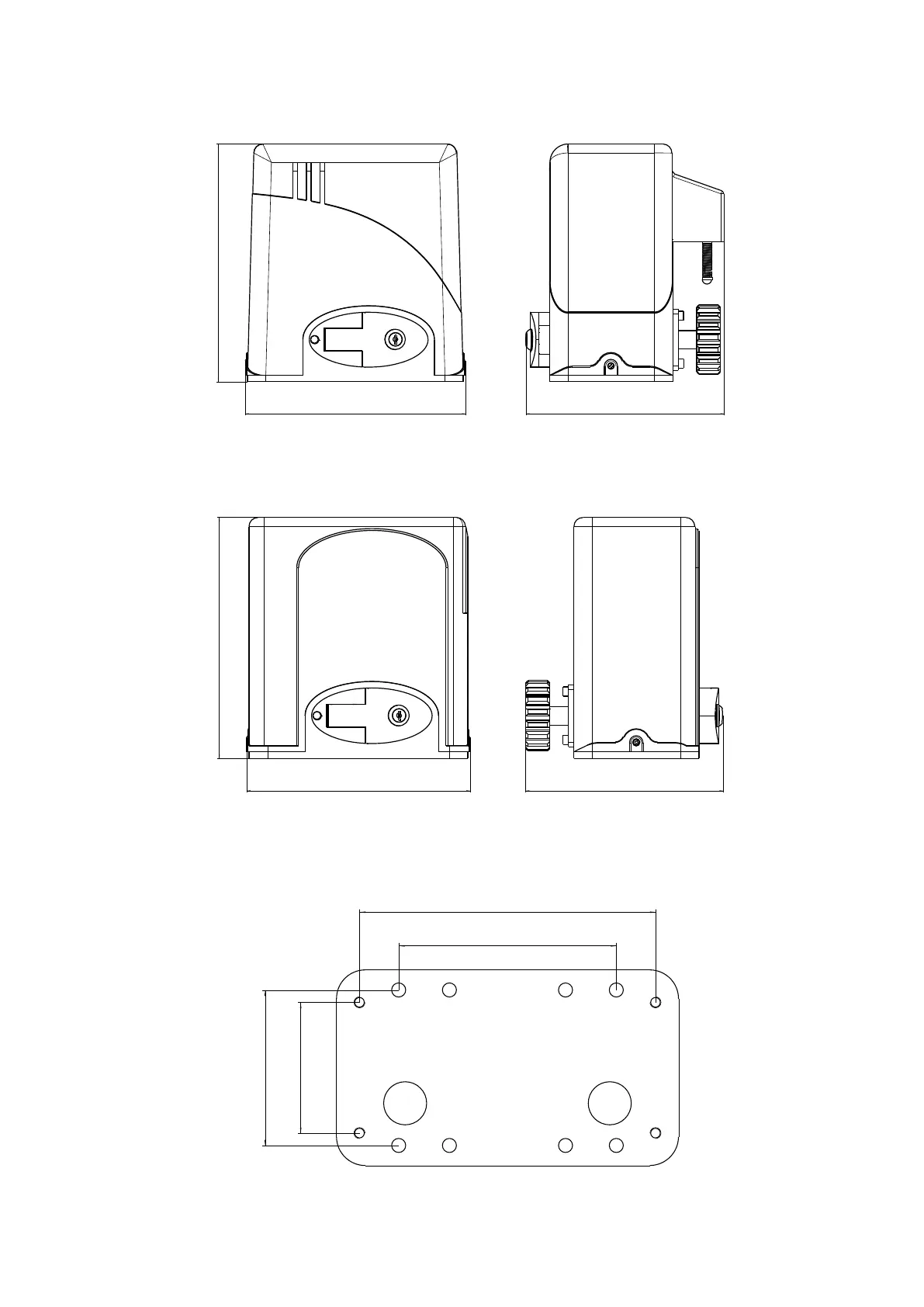

The PY600AC Sliding Gate Opener is a robust and versatile system designed to automate the operation of sliding gates, enhancing convenience and security for residential and commercial properties. This opener is engineered for gates that slide horizontally, utilizing a gear and rack transmission system for smooth and reliable movement. Its design prioritizes ease of use and safety, incorporating features that protect both the user and the gate itself.

Function Description

The primary function of the PY600AC is to open and close sliding gates automatically. It achieves this through a motor that drives a gear, which in turn engages with a gear rack attached to the gate, causing it to slide along its track. The system supports both single-button and three-button remote control modes, offering flexibility in how users interact with the gate. In single-button mode, a single press cycles through open, stop, and close commands, providing a streamlined user experience. The three-button mode, on the other hand, dedicates separate buttons for open, close, and stop functions, offering more precise control.

A crucial safety feature of the PY600AC is its disengagement mechanism. In the event of a power outage or system malfunction, the gate can be manually operated by unlocking the main engine with a disengagement wrench. This ensures that the gate can always be opened or closed, even without power, preventing entrapment or inconvenience.

The opener incorporates limit switches to define the gate's fully open and fully closed positions. These can be either spring limit switches or magnetic limit switches, depending on the specific model and installation requirements. These switches are essential for preventing the gate from overshooting its intended travel limits, which could cause damage to the gate or the opener itself. The system also supports optional infrared sensors, which act as a safety photocell. If an infrared beam is interrupted while the gate is closing, the gate will immediately reverse direction and open, preventing collisions with vehicles, people, or objects. This is a critical safety measure, especially in areas with frequent pedestrian or vehicle traffic.

The control board, available in standard and intelligent versions, manages all operational aspects of the gate opener. It handles power supply, motor control, remote control signals, and inputs from safety devices like limit switches and infrared sensors. The intelligent control board offers additional functionalities and adjustments, such as soft start, brake force adjustment, slow stop width adjustment, and motor output force adjustment, allowing for fine-tuning of the gate's performance to suit specific site conditions.

Usage Features

The PY600AC is designed for user-friendly operation. The remote control unit provides convenient access to the gate's functions from a distance. The indicator light on the remote control unit flickers when a button is pressed, confirming signal transmission. The system allows for the learning of multiple remote controls, with a capacity for up to 25 units, making it suitable for multi-user environments. There is also a feature to delete all learned remote controls, useful for security management.

For enhanced security and access control, the system can be integrated with optional accessories such as wireless keypads, allowing entry via a PIN code. Alarm lamps can also be connected to provide visual warnings during gate operation. The intelligent control board further introduces a pedestrian mode, where a dedicated button on the remote control opens the gate partially (approximately 1 meter), allowing pedestrians to pass without fully opening the gate. This feature is particularly useful for quick access and reduces wear and tear on the gate opener.

The system's adaptability is evident in its support for different power voltages (AC110V or AC220V) and its ability to accommodate various gate lengths and weights within specified limits. The installation process is detailed, emphasizing the importance of a level gate rail and smooth manual operation before the opener is installed. The control board also includes DIP switches and potentiometers for adjusting various parameters, such as automatic close time, soft start function, limit switch settings, and motor force. These adjustments allow installers to customize the gate's behavior to match specific environmental conditions and user preferences, ensuring optimal performance and safety.

Maintenance Features

Regular maintenance is crucial for the longevity and reliable operation of the PY600AC Sliding Gate Opener. The manual recommends monthly checks to ensure the gate operates normally. This includes verifying the smooth movement of the gate, checking the functionality of safety devices like infrared sensors, and ensuring that the mechanical components are in good condition.

The design of the opener facilitates maintenance by allowing access to the main engine and control board for inspection and adjustments. The manual provides clear instructions for troubleshooting common issues, such as the gate not opening or closing, remote control malfunctions, or the gate not stopping at the limit positions. These troubleshooting steps guide users and professionals in identifying potential problems, such as power supply issues, blown fuses, wiring errors, or sensor obstructions, and offer corresponding solutions.

For instance, if the gate does not open or close and the LED does not light, the manual suggests checking the power supply, fuse, and control board wiring. If the gate opens but does not close, it directs attention to the photocell wiring, mounting, and potential obstructions. The ability to adjust motor output force (VR4 knob) is a maintenance feature that allows users to compensate for changes in gate friction or weight over time, ensuring the gate continues to operate effectively without excessive strain on the motor.

The emphasis on professional installation and maintenance underscores the importance of proper setup and ongoing care to ensure the safety and optimal performance of the gate opener. The manual also highlights the need for an earth leakage circuit breaker and appropriate mounting height to protect against electrical hazards and accidental contact. By following the provided guidelines for installation, adjustment, and maintenance, users can ensure their PY600AC Sliding Gate Opener remains a reliable and secure part of their property for years to come.
