4.3 Installation procedures
4.3.1 Preparation work before installation
Please ensure that the sliding gate is correctly installed, the gate rail is horizontal, and the gate can
glide back and forth smoothly when moved by hands before installing the gate opener.
Cable installation
Please bury the motor & power cable and controlling cable with PVC tube, and use two PVC tubes
to bury (motor & power cable) and (controlling cable) separately, so as to guarantee normal
operation of the gate opener and protect the cables from damages.

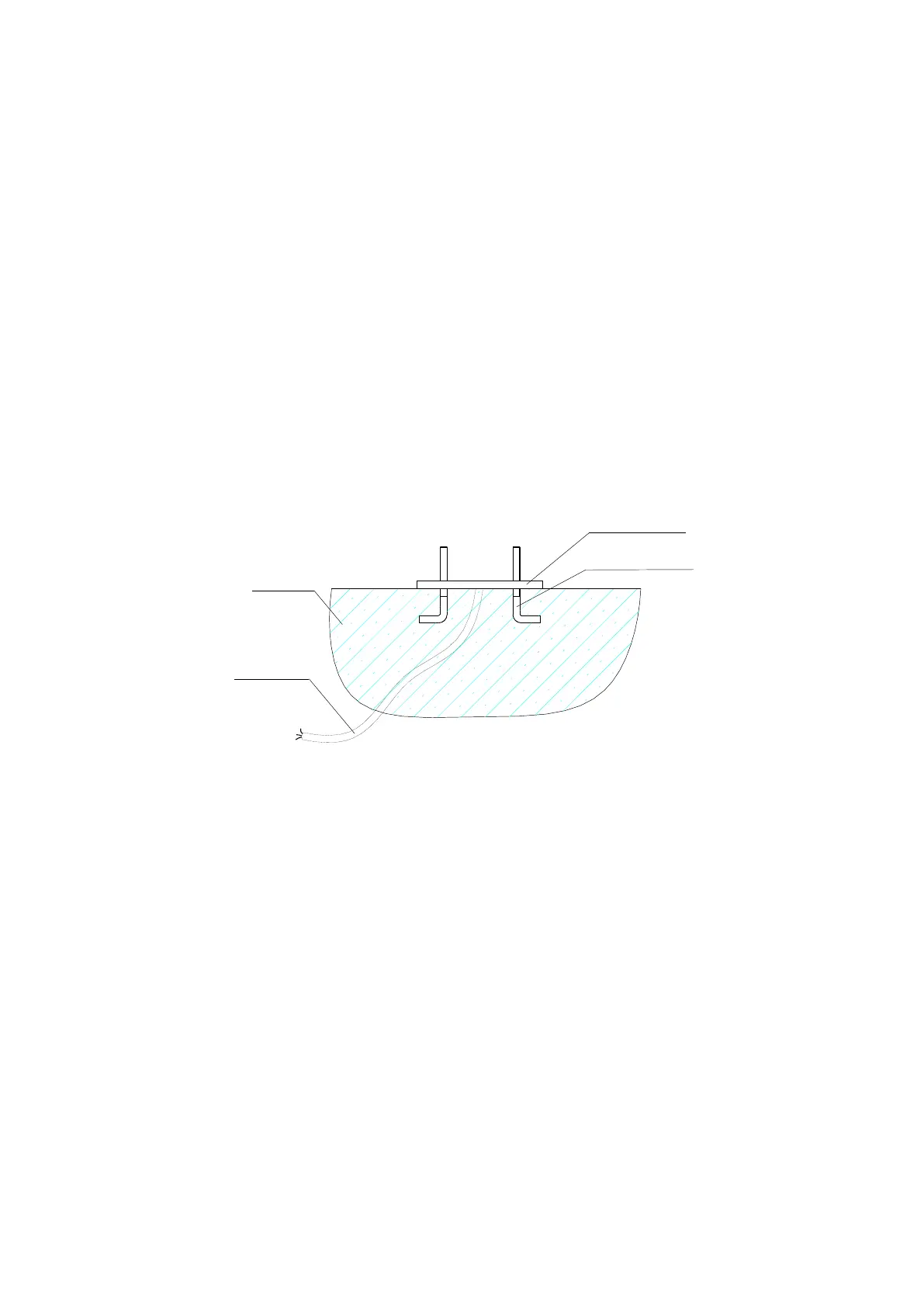

Concrete pedestal
Please cast a concrete pedestal with the size of 400mm x 250mm and depth of 200mm in advance,
so as to firmly install PY600AC gate opener. Please verify whether the distance between the
gate and gate opener is suitable before casting the pedestal.
Embedded screws
Figure 4
4.3.2 Main engine installation
a) Dismantle the plastic housing on the main engine before installation and keep relevant fasteners
properly;
b) Please prepare the power line for connecting mounting plate and main engine (the number of
power supply cable core shall not be less than 3 PCS, the sectional area of cable core shall not be
lower than 1.5mm² and the length shall be determined by users according to the field situation) due
to different installation environments;
c) Please unlock the main engine before installation, the unlock method is: insert the key, open the
manual release bar till it rotates by 90° as shown in Figure 5. Then turn the output gear and the gear
can be rotated easily;
