S-8
Simplified Manual
Cancellation
1 Press the [EBL1] or [EBL2] key again.
The selected EBL display will disappear.
[II] Moving the Starting Point of EBL
The system provides three types of EBL starting points. Select one of them in accordance with
purpose.
:The EBL starting point is defined as the own ship's position.
C :The EBL starting point is moved and fixed on the radar display.
D :The EBL starting point is moved and fixed at the latitude and longitude.

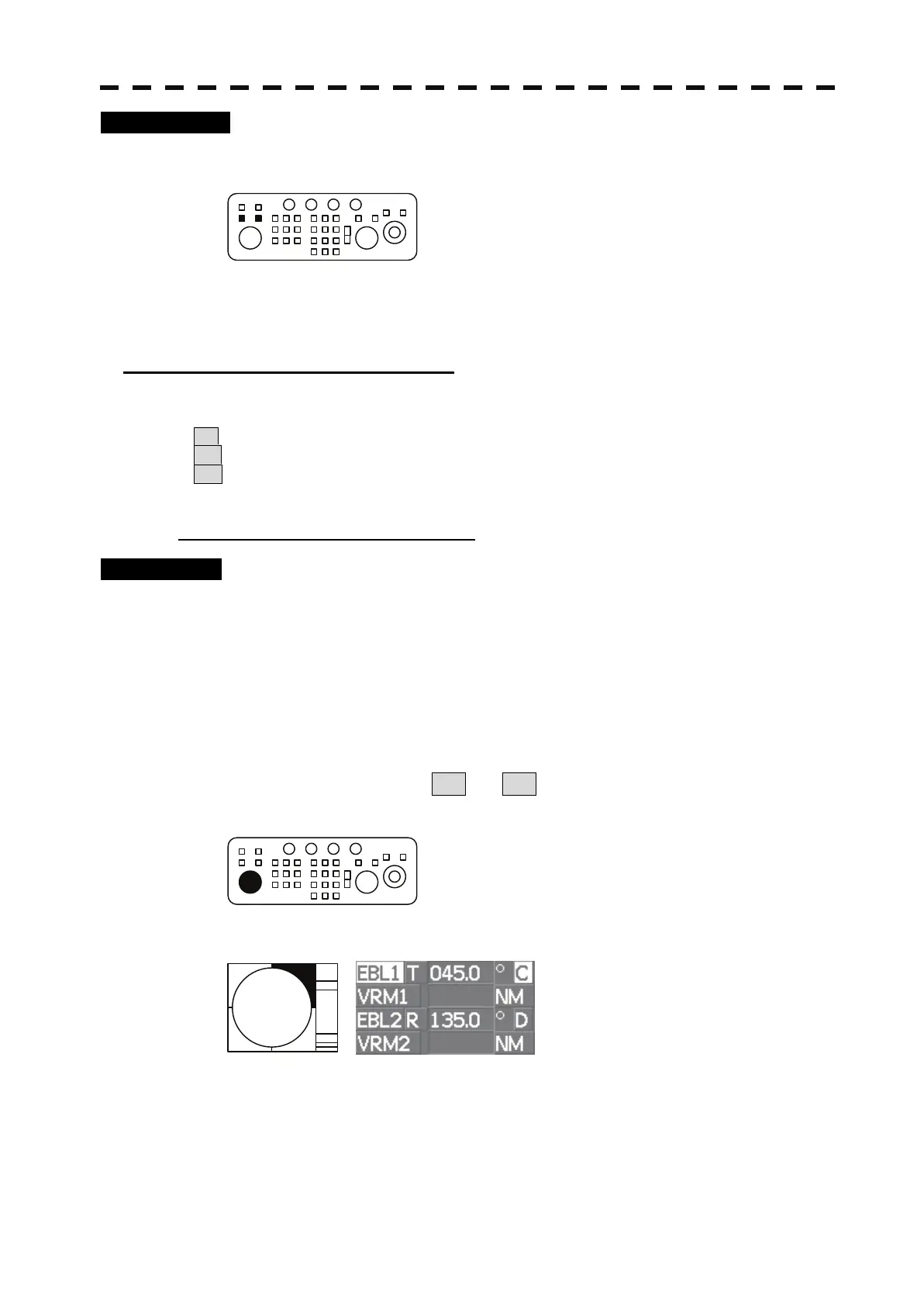

To move the starting point of EBL
Procedures
1 Hold down [EBL] control.
The Jog Dial Button Mode will appear
2 Select 2 Floating EBL using Left Jog Dial, and set Floating EBL for Left
Jog Dial Mode.
3 When setting completes, EBL1 or EBL2 become operable
4 Press the [EBL] dial to set C or D for the EBL1 / EBL2 starting
point mode switching.
The selected EBL starting point mode is switched as shown below each time the dial is pressed.
To Next Page
