[II] Numeric Display
When the sleeping AIS-SART symbol is clicked once, the symbol changes into
activated AIS-SART symbol.
And then activated AIS-SART symbol is clicked once more, the symbol changes into
numeric displayed AIS-SART symbol and their information is displayed.

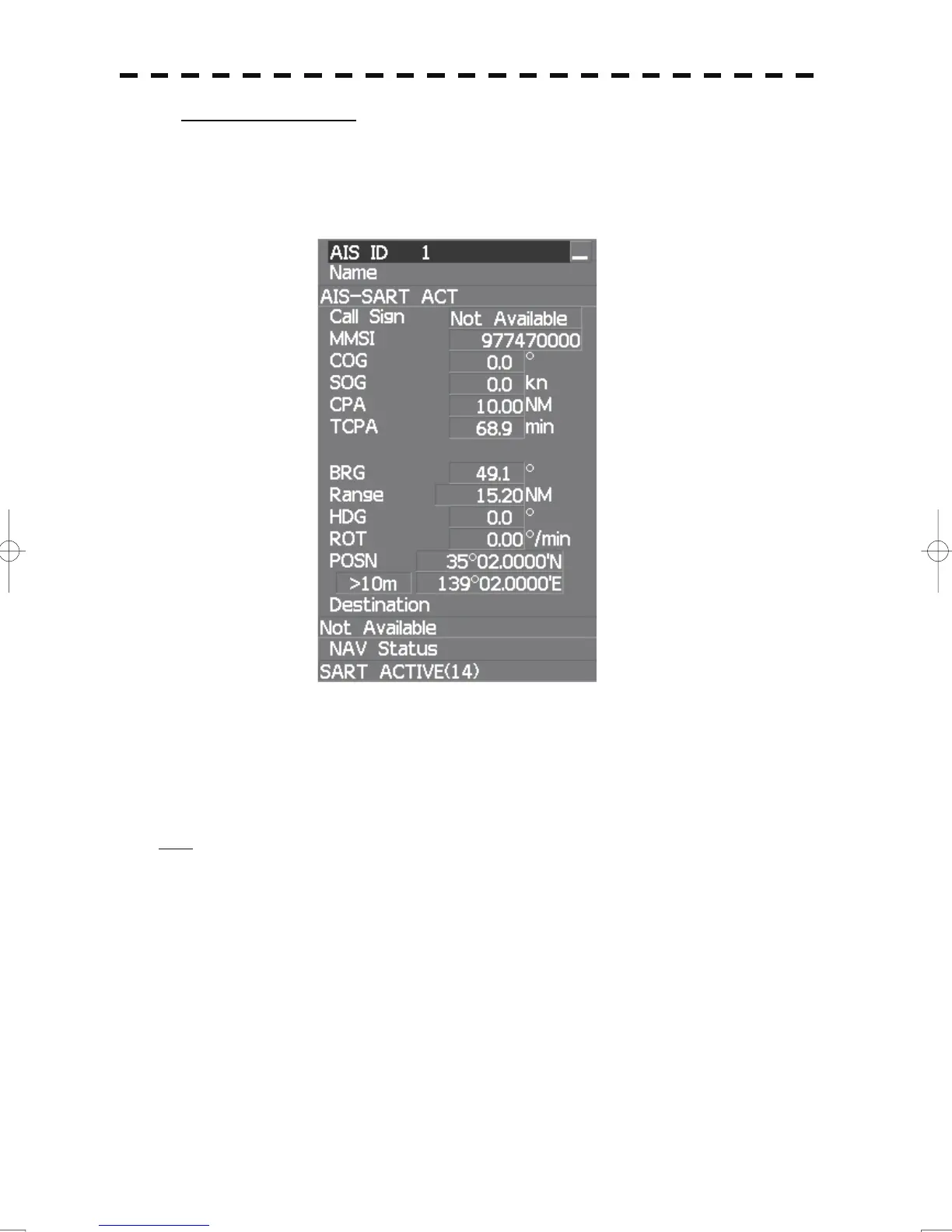

[Example of numeric information display of AIS-SART]
Depending on operation condition, Navigation Status is displayed as follows.
Normal operation: AIS-SART ACTIVE(14)
Test operation: AIS-SART TEST(15)
It means operation test of AIS-SART when “AIS-SART TEST(15)” is displayed.
Note:
AIS-SART function is available in the display software ver. 1.01 or later. As for method of
confirming software version, refer to section 8.3.1 " Check Performance on Test Menu ".
6-15
