CFQ-6912
MAX φ14.5 (JRC SUPPLY)
19 CORES COMPOSITE CABLE
NJU-85 PERFORMANCE MONITOR
SHIP'S MAIN
NKE-2103-6/6HS SCANNER UNIT
0.6/1kV-DPYC-1.5
NQE-3167 POWER CONTROL UNIT
RG-10/UY (JRC SUPPLY)
H-2695110056
MAX φ23 (JRC SUPPLY)
14 CORES COMPOSITE CABLE
COAXIAL CABLE for VIDEO
(OPTION)
AC100-115/220-240V,
50/60Hz,1φ
NCM-853-E CONTROL UNIT
NCE-5171 OPERATION UNIT
NCA-877WA/877A
(JRC SUPPLY) 5m
NWZ-173 LCD MONITOR
NCD-4530 DISPLAY UNIT
(JRC SUPPLY) 5m
(JRC SUPPLY) 5m
0.6/1kV-DPYC-6
CFQ-5436-5
MAX φ10 (JRC SUPPLY) 5m
NBA-5111 POWER SUPPLY
GYRO
LOG(200P)
250V-TTYCS-4
250V-TTYCS-1
250V-MPYCYS-7
250V-DPYCYS-1.5
250V-TTYCS-1
GPS
SHIP'S MAIN
H-2695111153 MAX φ18
(JRC SUPPLY, OPTION)
INTERSWITCH
AIS
LOG(NMEA)
(JRC SUPPLY) 5m
ARPA/ATA PROCESS UNIT (OPTION)
(OPTION)
NCT-59A GYRO INTERFACE UNIT
NQA-2103 AIS PROCESS UNIT
NDB-34A PLOTTER CONTROL UNIT
(OPTION)
(OPTION)
NOTE: Eliminating the interference on frequencies used for marine communications and navigation due to
operation of the radar.
All cables of the radar are to be run away from the cables of radio equipment.
(Ex. Radiotelephone. Communications receiver and direction finder, etc. )
Especially inter-wiring cables between scanner unit and display unit of the radar should not be run parallel
with the cables of radio equipment.
Performance monitor, ARPA/ATA Process Circuit, AIS Process Circuit and GYRO Interface Unit must be
fitted on ships compliant to IMO.
DC24V
JRC LAN
LAN CABLE H-7ZCNA0483
(JRC SUPPLY, OPTION)
NDC-1417 RADAR PROCESS UNIT
AC100-120/220-240V,50/60Hz,1φ
(OPTION)
(X-BAND 10 kW RADAR)
付図 18 JMA-5312-6/6HS 形レーダー、NQE-3167 パワーコントロールユニット総合系統図
（オプション）

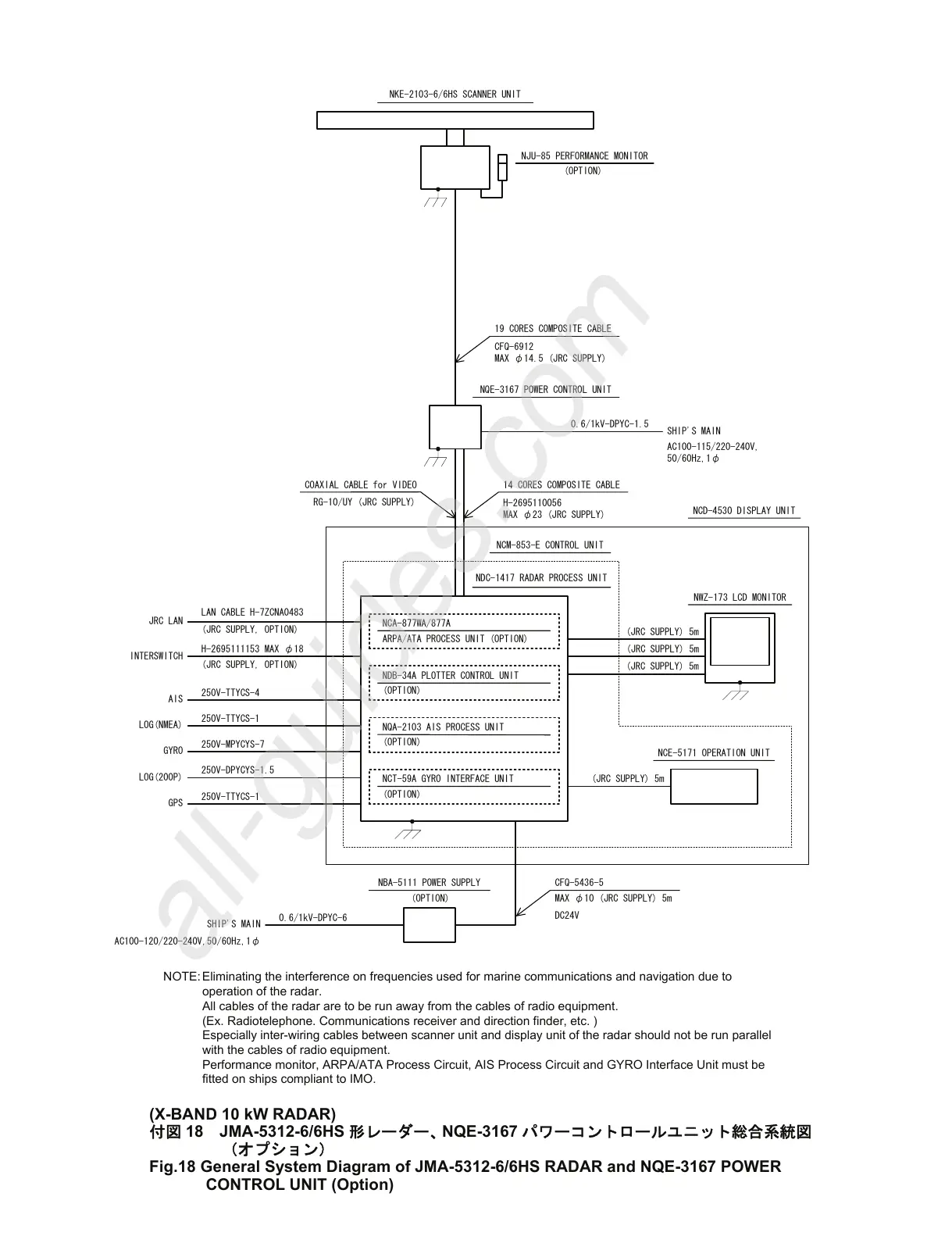

Fig.18 General System Diagram of JMA-5312-6/6HS RADAR and NQE-3167 POWER
CONTROL UNIT (Option)
