DC24V

+50%

-10%

Filter

Motor

Control

AVR

internal circuit

power

Motor

SCANNER UNIT NKE-2103/2254

Filter

PWR

SENSE

P12V

±12V

AVR

PWR

CONT

Relay

+5V AVR

+3.3V AVR

Poly-SW

-12V 0.2A

+12V 1.0A

Analog

Logic

PWR-ON

0.5A

RADAR PROCESS UNIT NDC-1417

LCD MONITOR

NWZ-173

POWER-SW

OPERATION UNIT NCE-5171

To GPS (SW)

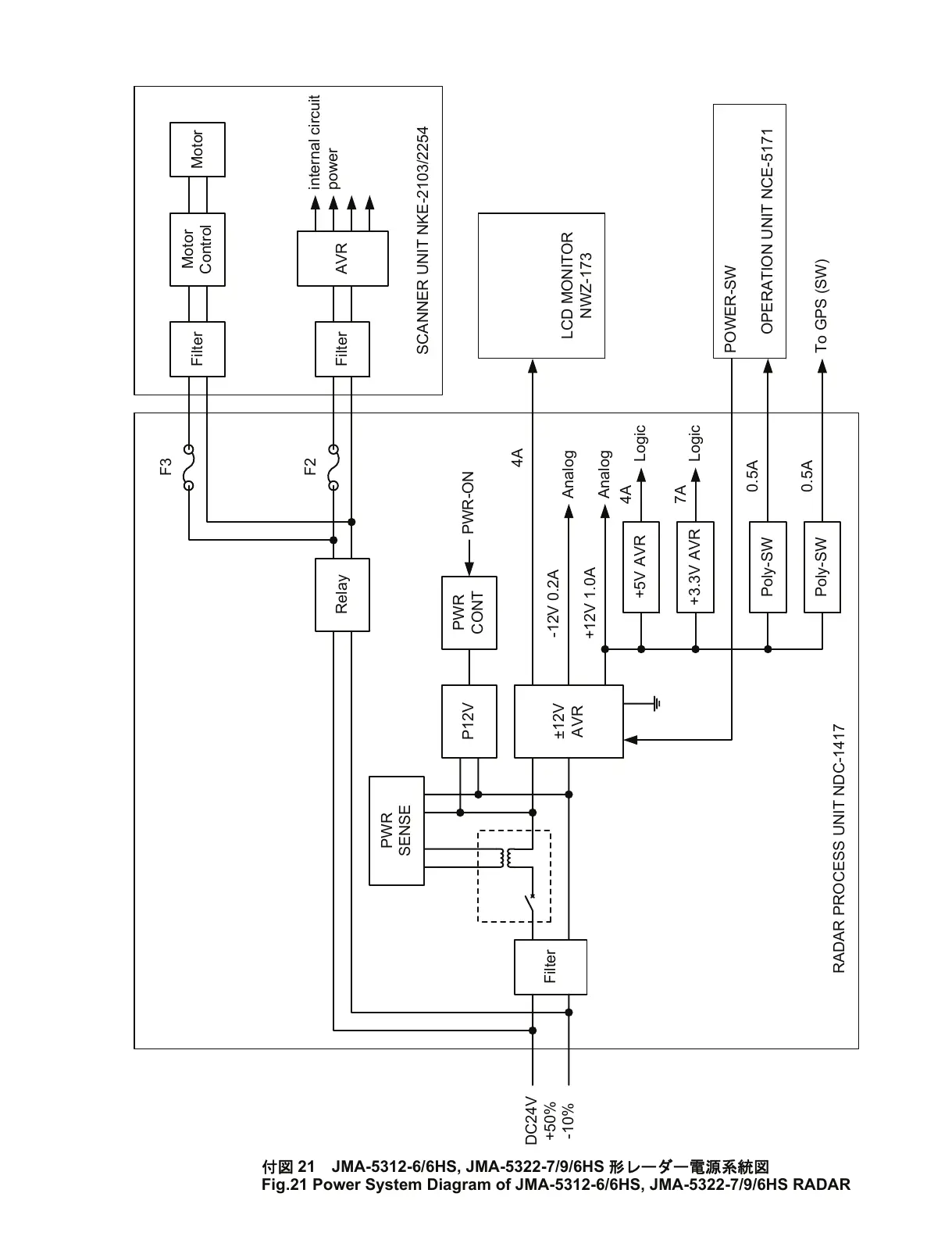

付図 21 JMA-5312-6/6HS, JMA-5322-7/9/6HS 形レーダー電源系統図

Fig.21 Power System Diagram of JMA-5312-6/6HS, JMA-5322-7/9/6HS RADAR
