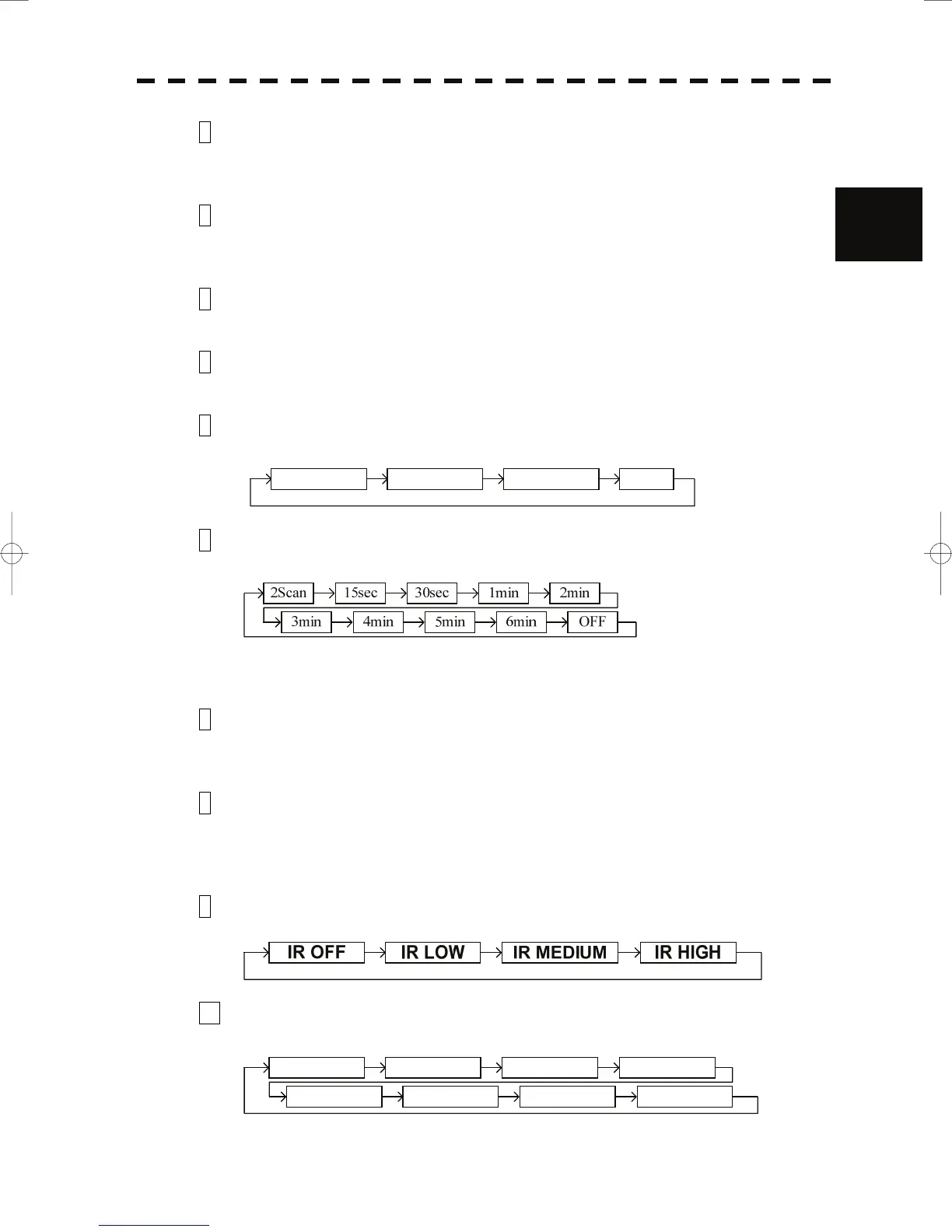

2.3 NAMES AND FUNCTIONS OF ON-SCREEN CONTROLS
1 【RANGE】
A click on “+” will increment the RANGE SCALE.
A click on “-“ will decrement the RANGE SCALE.
2 【AUTO TUNE】
A click on the box will select either Manual tune, “M” or Auto
tune, ”A”.
3 【TX/STBY】
A click on the box will select either TRANSMIT or STANDBY.
4 【PULSE LENGTH】
A click on the box will cycle through the available pulse lengths.
5 【OFF-CENTER】
A click on the box will cycle the center mode as follows.
CENTER1 OFFCENTER3 CENTER2
6 【LENGTH OF TRAILS】
A click on the box will cycle the length of trails as follows.
Clicking and holding down the box over 2 seconds
will set the trails to OFF.
7 【MODE OF THE TRAILS】
A click on the box will select TRUE TRAILS,”T”, or RELATIVE
TRAILS,”R”.
8 【BRILLIANCE】
A click on the box will enable brilliance adjustment.
The brilliance can be change by [JOG DIAL] or [TRACK-BALL] and
[ENTER] key.
9 【INTERFERENCE REJECTION】
A click on the box will cycle IR mode as follows.
10 【DAY/NIGHT】
A click on the box will cycle the display mode as follows.
DAY1 DAY4DAY3DAY2
NIGHT1 NIGHT4NIGHT3NIGHT2
