5－8
JMA-9100 Instruction Manual > 5.OPERATION OF TARGET TRACKING AND AIS > 5.1 PREPARATION

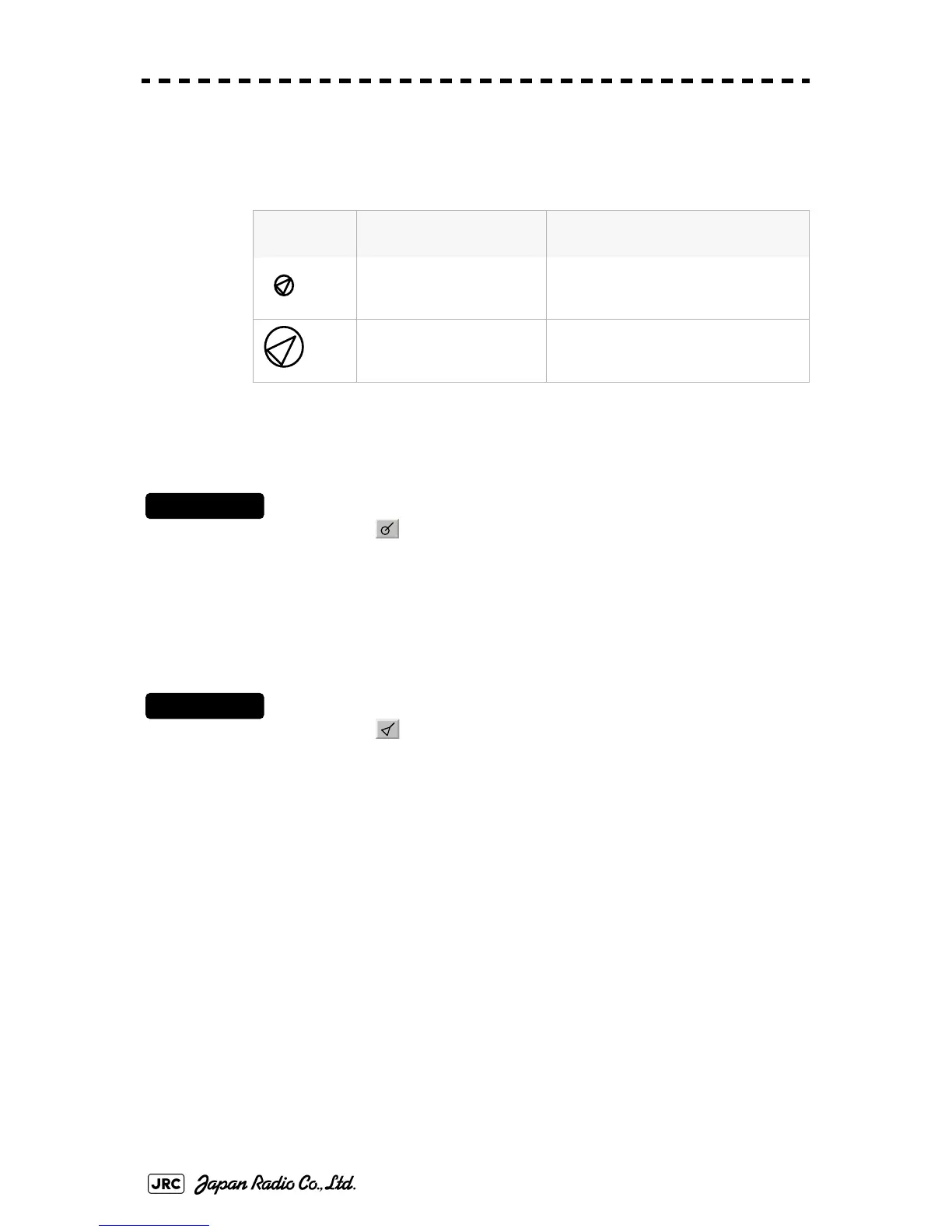

5.1.2.3 Types and Definitions of Association Target Symbols
When a tracked target and an AIS target are decided as identical, it is displayed
with either of the following symbols:
a. Setting of Tracked Target Symbol Display
This function switches the tracking target symbol display between on and
off.Even if the tracking target symbol display is turned off, the data is retained.
Procedures
1) Left-click the button in the Target Information located at the
upper right of the display.
The tracking target symbol display will be set to on or off.
b. Setting of AIS Target Symbol Display
This function switches the AIS target symbol display between on and off.
Procedures
1) Left-click the button in the Target Information located at the
upper right of the display.
The AIS target symbol display will be set to on or off.
Vector/
Symbol
Definition Remarks
Priority for tracked target
Association target
Priority for AIS target
Association target
