JMA-9100 Instruction Manual > 2.CONTROL PANEL KEYS and SOFTWARE BUTTONS> 2.1 NAMES OF DISPLAY
2ļ¼3
2

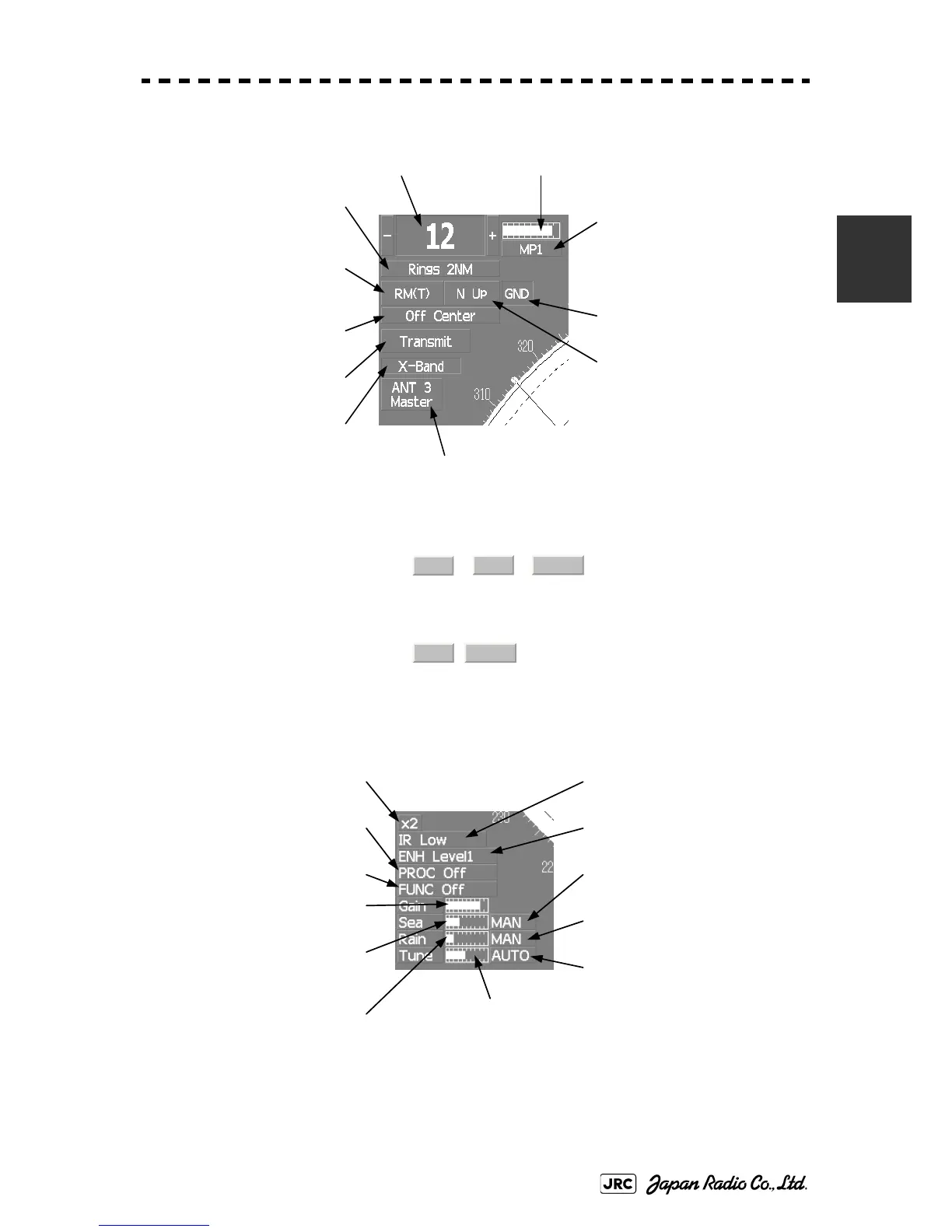

Upper left of the display
About ground and sea stabilization
Lower left of the display
Speed sensor source is , ,
If Set/Drift Setting menu is on
ļ¼GND (Ground stabilization)
If Set/Drift Setting menu is off
ļ¼Sea (Sea stabilization)
Speed sensor source is ,
ļ¼GND (Ground stabilization)
Range scale
Range rings display On / Off
Range rings interval
Motion mode true / relative
Radar trail true / relative
Off center
On / Off
Transmission / standby
X / S band
Interswitch connection status
Tuning indication
Transmission pulse length
Stability mode
Azimuth display mode
MAN
LOG
2AXW
GPS
2AXG
Target enhance (ENH) mode
Radar video processing (PROC)
mode
Function (FUNC) mode
Double zoom On / Off
Interference rejection (IR) mode
Sea clutter uppression (Sea)
dial position
Rain / snow clutter
suppression (Rain)
dial position
Tune dial position
Sea clutter suppression (Sea)
mode
Rain / snow clutter suppression
(Rain) mode
Gain dial position
Tune mode
