5－16
JMA-9100/7100 Installation Manual > 5.OPTION UNIT > 5.2 INSTALLATION OF POWER CONTROL UNIT
5.2.2 Connections to NKE-1125, NTG-3225, NKE-1130, and NTG-
3230
Use 14-core composite cable 2695110056 for the installation of those types of
antennas.
For the procedures for processing the cable end, see Fig 5-15: Equipment cable
end processing.
For the wiring procedures, see Section 5.2.8Inter-board connection diagram of
power control unit.
5.2.3 Equipment cable end processing

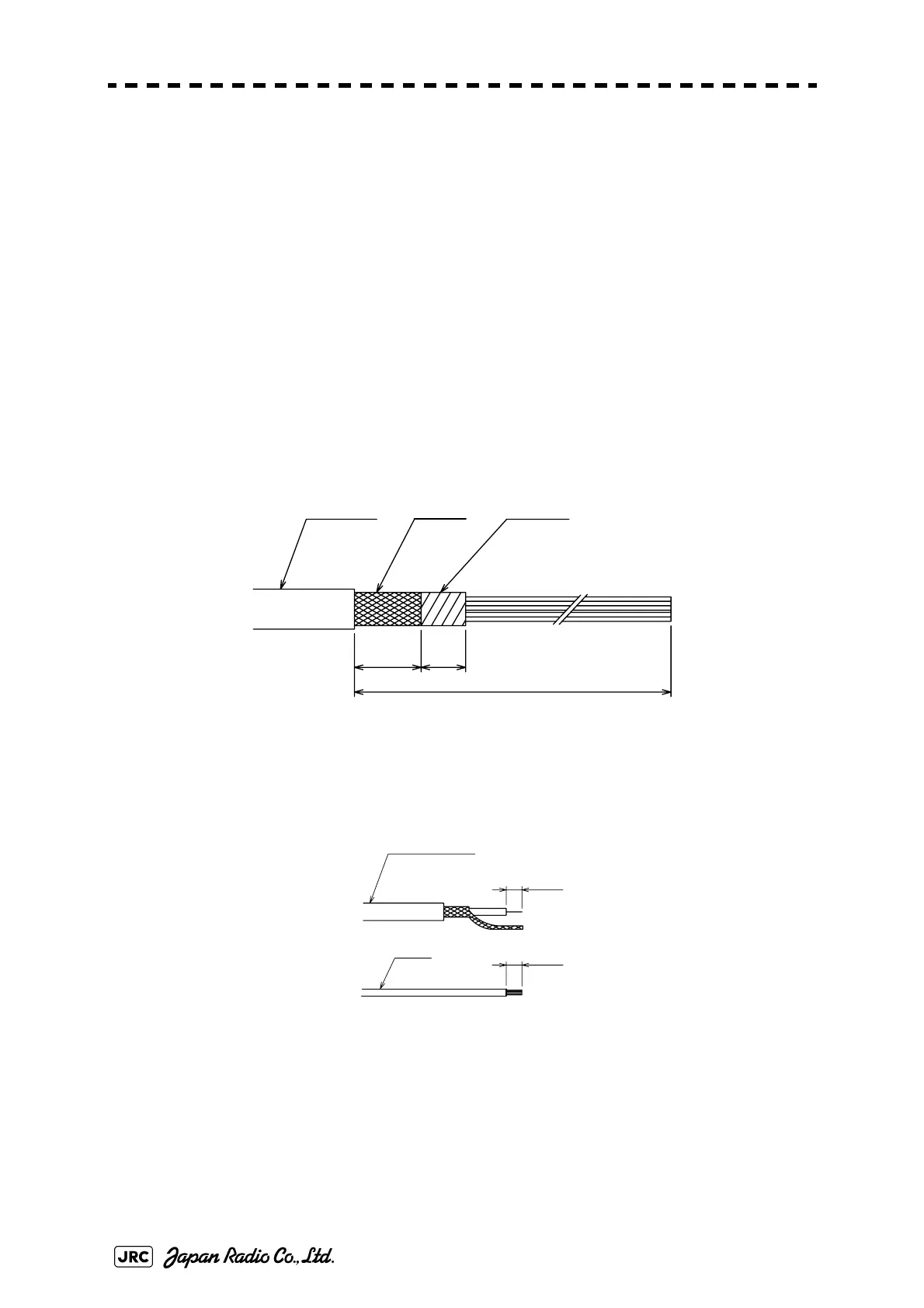

Fig 5-15: Equipment cable end processing
5.2.4 End processing of each cable core
Fig 5-16: End processing of each cable core
5.2.5 Connection to display unit
Use 14-core composite cable 2695110056 and coaxial cable RG-10/UY to connect
power control unit NQE-3167 to each display unit of NCD-4790/T and NCD-
4990/T.
Shielding
Equipment
cable
Tape
30mm 20mm
280mm
Coaxial or Shield cable
Vinyl cable
6～7mm
6～7mm
To Next Page
