JMA-9100 Instruction Manual > B.DRAWINGS > B.1 Interconnection Diagram of Display Unit
B.1.5 NWZ-170-R

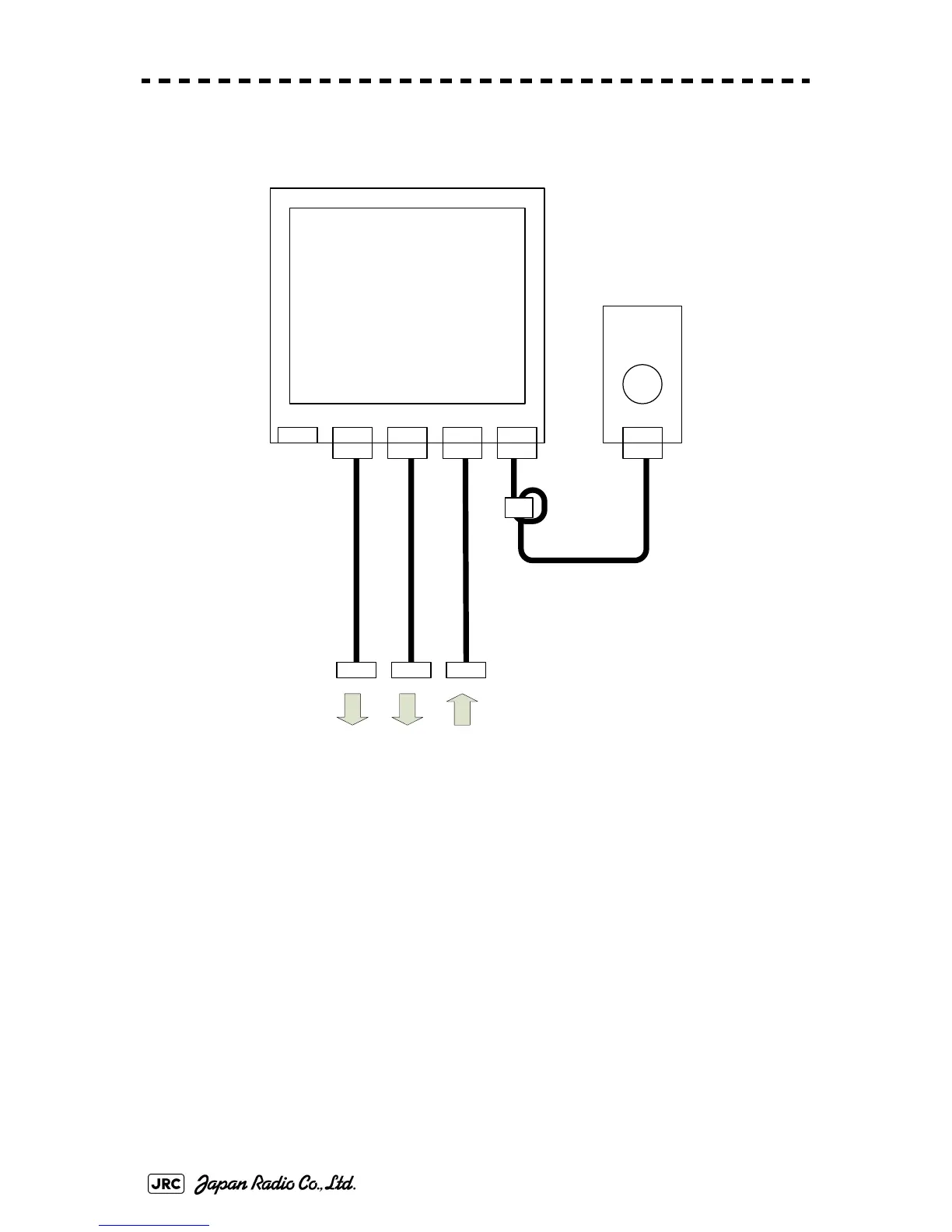

Fig B-5: Interconnection Diagram of NWZ-170-R
J7101
BRILL
AC 1 0 0V
240V
FAN
ALM
DVIRGB
CCK-972A
PC710
CML-799L
(H-7WSRD0002C)
LCD
8P
H-7ZCRD1328
FL1
9P 2m H-7ZCRD1329A
DVI 2m H-7ZCRD1345
AC 2m VM0301-VM0303B2Mｸﾛ
CDC-1324
J4406
CQD-2097A
J4309
CBD-1661
OUTLET
Monitor Unit Interconnection
CML-764-R (NWZ-170-R)
