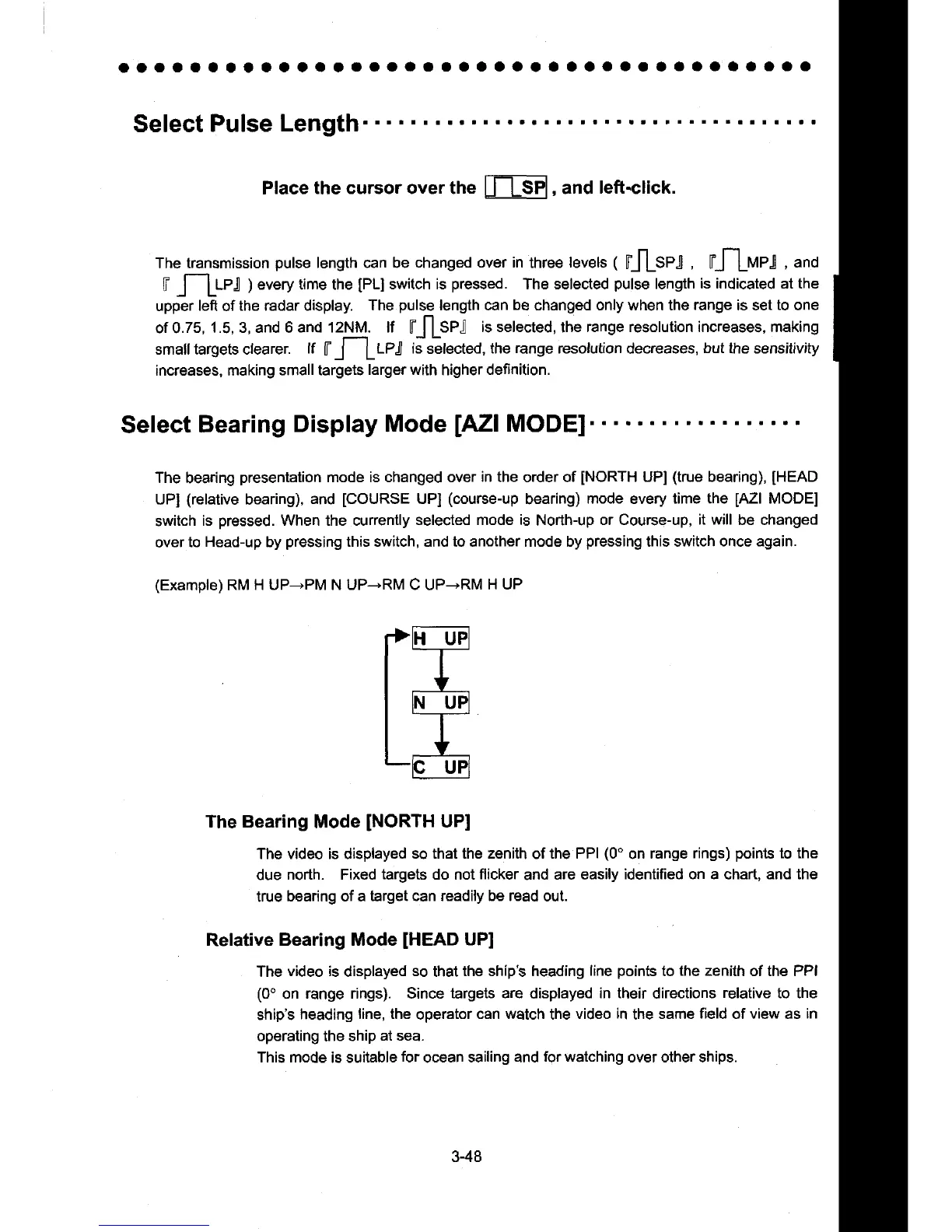

Select
Pulse
Length
..
..
'
Ptace
the cursor over the
ITSE,
and
left-click.
The transmission
pulse
length can be
changed over in
three
levels
(
fJLSpl
,
F-l*l-rr,reJ
,
ano
n
_[-lt-el
)
every time the
[PL]
switch is
pressed.
The selected
pulse
length
is indicated at the
upper
left
of
the radar display.
The
pulse
length can
be
changed only when the
range
is set
to
one
of 0.75,
1.5,
3, and 6
and 12!1V1. f
fJlSPi
is selected, the range resolution increases, making
small targets clearer.
f
f
J ILPJ
is
selected,
the
range
resolution
decreases,
but
lhe sensitivity
increases, making small
targets
larger with
higher
definition.
Select
Bearing
Display Mode
[AZl
MODEI'
' '
The
bearing
presentation
mode is changed over
in the
order of
INORTH
UP]
(true
bearing),
[HEAD
UPI
(relative
bearing),
and
[COURSE
UP]
(course-up
bearing)
mode
every
time the
[AZl
MODE]
switch
is
pressed.
When the currently
selected mode is
North-up
or Course-up,
it will
be changed
over
to
Head-up
by
pressing
this switch, and to another mode by
pressing
this switch
once again.
(Example)
RM
H UP_+PM 11
gp---RM
C
UP--RM
H UP
r>FUFI
II
I lN
uPl
t:t
Llc
uPl
The Bearing
Mode
[NORTH
UPI
The video is displayed
so that the zenith
of
the PPI
(0"
on
range
rings)
points
to the
due
north. Fixed
targets
do not
flicker
and
are easily
identified on a
chart,
and the
true
bearing of a
target can readily be read
out.
Relative
Bearing Mode
IHEAD
UPI
The
video is
displayed
so
that
the ship's heading
line
points
to
the zenith
of the PPI
(0'
on range rings). Since
targets are
displayed
in their
directions
relative
to the
ship's
heading
line, the
operator
can watch
the
video
in
the
same
field
of view as
in
operating
the
ship
at sea.
This mode
is suitable
for
ocean
sailing and
for watching
over other ships
