Note: The bearing of the
parallel
index lines
that
are
displayed in
the
Pl
menu
represents the true
value when
the bearing display of the radar reads N
UP or C
UP and the
relative value
when
it reads H
UP.

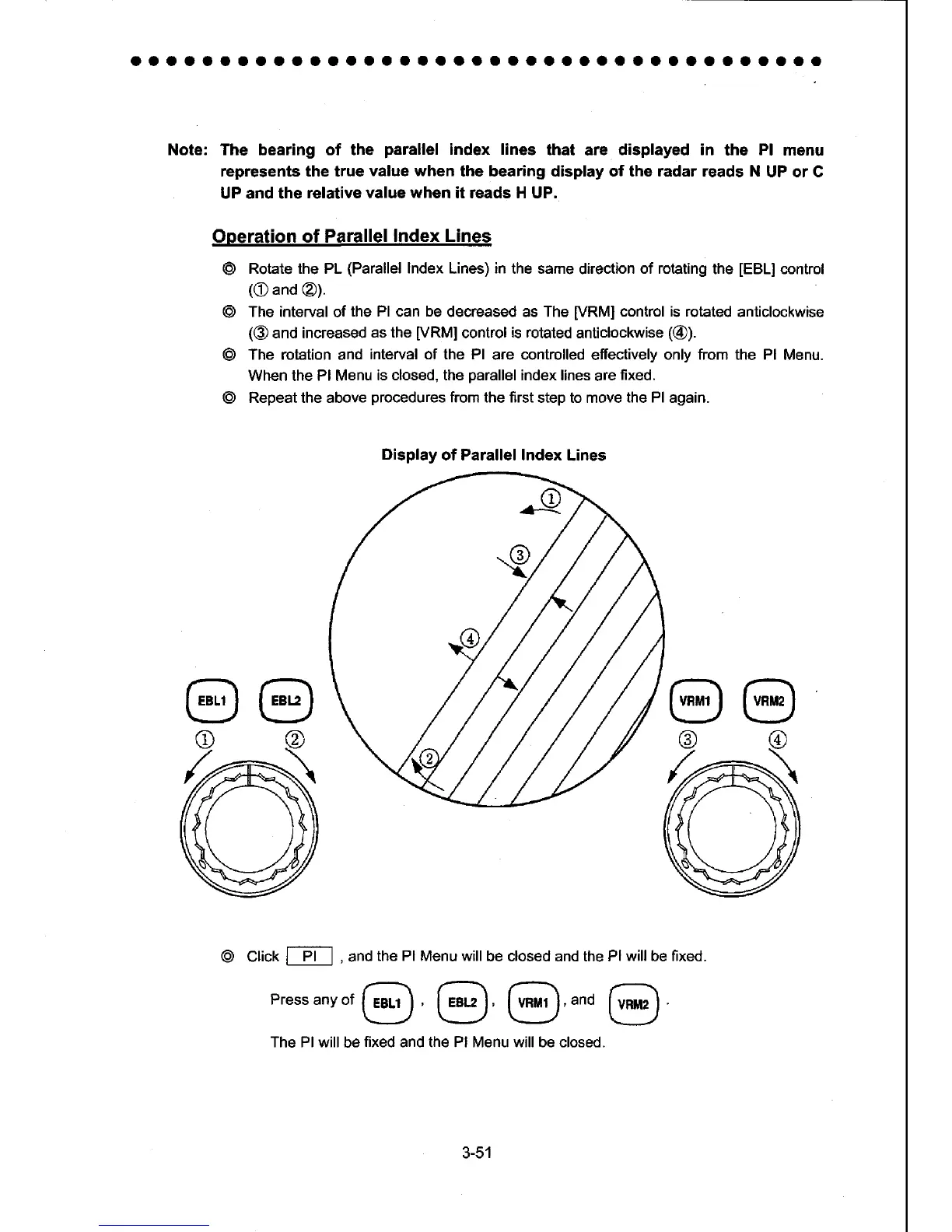

Operation of Parallel
Index Lines
@
Rotate the PL
(Parallel
lndex
Lines)
in
the same
direction
of rotating
the
[EBL]
control
(Oand
@).
@
The interval
of
the Pl
can
be
decreased as The
[VRM]
control is rotiated
anliclockwise
(@
and increased
as the
[VRM]
control
is rotated
anticlockwise
(@).
@
Tne rotation and
interval of the Pl
are controlled
efiectively
only from the Pl
Menu.
When the Pl Menu
is closed, the
parallel
index lines
are
fixed.
@
Repeat the above
procedures
from the first
step to move
the Pl
again.
Display
of Parallel Index
Lines
@@
@
Click
I
Pl
| ,
and
the Pl Menu will
be closed and the Pl
will
be fixed.
Pressany"@
@
@,".0@
The Pl will
be
fixed
and the Pl Menu will be closed.
3-51
