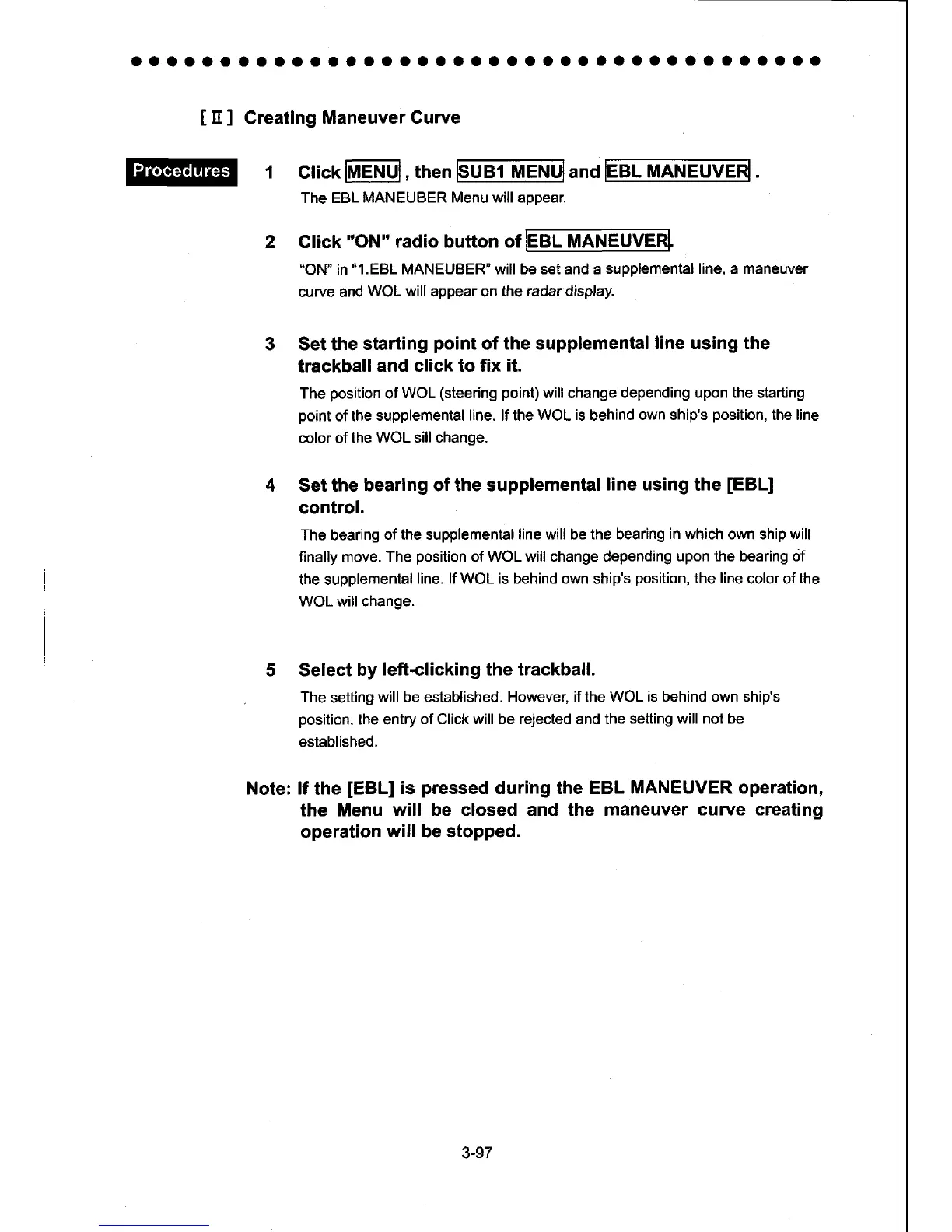

JRC JMA-9932-SA User Manual

aaaaaaaaaoaaaaaoaaaaaooooo
aaaaaoaaaaaaa
I
II
]
Greating
Maneuver Curve
@
I
cricklMENul,then
81 MEN and
L MANE
The EBL
MANEUBER Menu will appear.
2 Glick
"ON" radio button of L MANE
"ON"
in
'1.EBL
MANEUBER' will be set and a
supplemental line, a maneuver
curve and
WOL will
appear on
the radar display.
Set the
starting
point
of
the supplemental
line using the
trackball
and click to fix it.
The
position
of
WOL
(steering point)
will change
depending upon the
starting
point
of the
supplemental line. lf the
WOL is
behind
own ship's
position,
the line
color
of the
WOL sill change.
Set the
bearing of the supplemental
line
using the
IEBLI
control.
The bearing
of the supplementral
line will be the bearing
in which
own ship
will
finally move.
The
position
of WOL will change depending
upon the bearing of
the supplemental
line. lf WOL is behind own
ship's
position,
the line
color of
the
WOL will change.
Select
by
left-clicking
the
trackball.
The
setting
will
be
established. However, if the
WOL is behind
own ship's
position,
the entry
of Click will be rejected and the
setting will not be
established.
Note: lf
the
[EBL]
is
pressed
during the EBL
MANEUVER operation,
the Menu
will be closed and the maneuver
curve creating
operation
will
be stopped.
3-97
