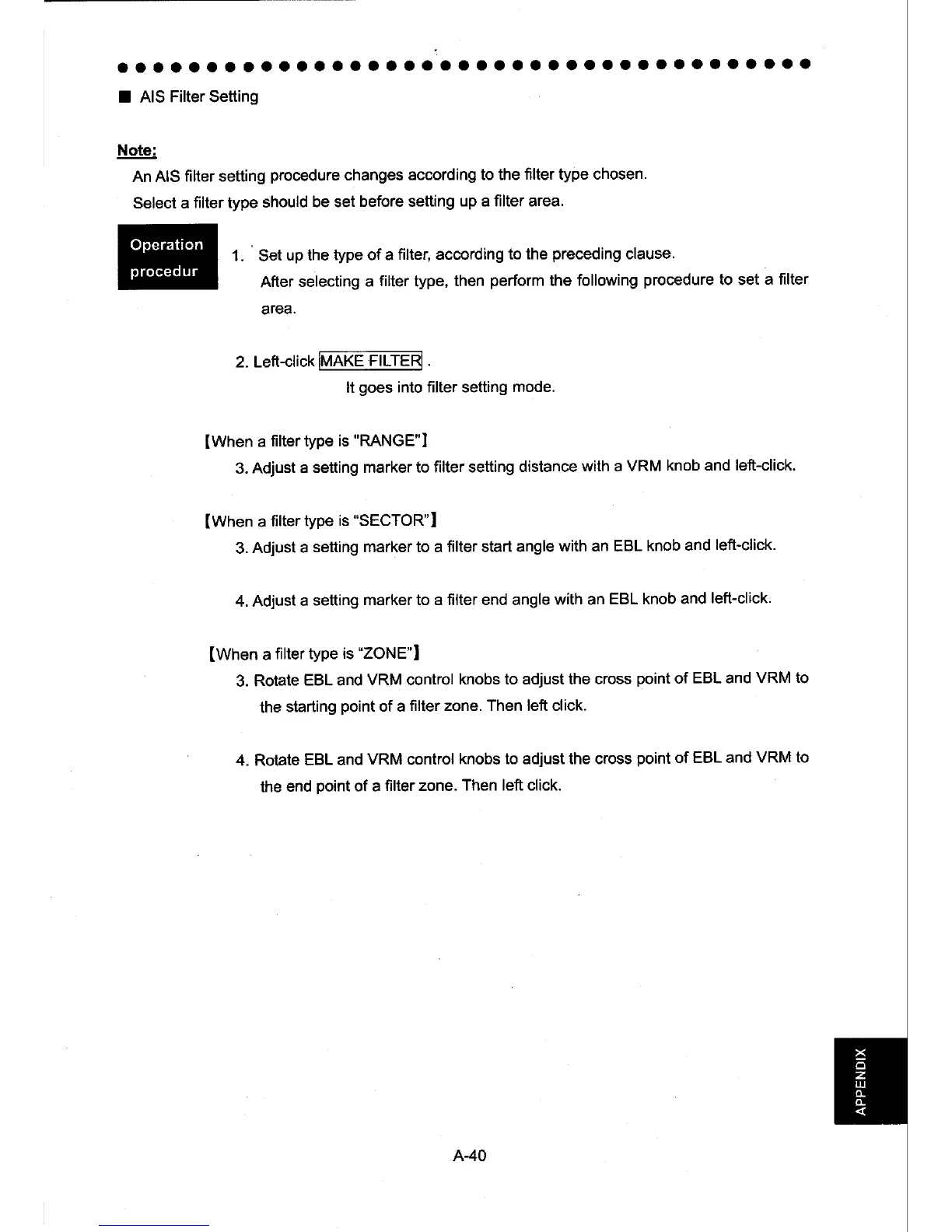

JRC JMA-9932-SA User Manual

aaalaaaaaoooooaaaaaaaoo
I AIS
Filter Setting
Note:
An AIS
filter setting
procedure
changes
according to the
filter
type
chosen.
Select a
filter type
should
be set
before setting
up a filter area.
a oooaaaaaooaaaoa
1. Set
up the
type of a
filter, according
to the
preceding
clause.
After
selecting
a
filter
type,
then
perform
the following
procedure
to set
a filter
atea.
z. teft-ctict
IMAxE
rtLTER .
It
goes
into filter setting
mode.
IWhen
a
filtertype is
"RANGE"I
3.
Adjust
a setting marker
to filter setting
distance
with a VRM
knob and left-click.
(When
a
filter
type
is
"SECTOR"I
3.
Adjust
a
setting marker to a
filter
start
angle
with an EBL
knob
and
left-click.
4. Adjust
a
setting
marker to a filter end angle
with an
EBL knob
and
left-click.
[When
a
filter type
is
"ZONE"I
3.
Rotate
EBL and
VRM control
knobs to adjust the cross
point
of
EBL and VRM
to
the
starting
point
of a
filler zone. Then left click.
4. Rotate
EBL and
VRM
control
knobs to adjust the cross
point
of
EBL and
VRM to
the
end
point
of a
filter zone.
Then left click.
A-40
