JRC JSB-196 User Manual

SYSTEM CONFIGURATION
General
Frequency range
Transmit 1.6 to 29.9999MHz
Receive 0.1 to 29.9999MHz
Frequency increments 100Hz
Frequency tolerance 40Hz or better
User definable channels 200ch (20ch X 10 Groups)
Emission mode J3E (USB), LSB, A1A, F1B,
H2B, H3E (Reception only)
Preset ITU channels 1693ch
283 ITU SSB
519 ITU A1A
891 ITU F1B
Scanning channels 20 user defined channels
Antenna impedance 50Ω
Operating temperature -15
˚C to +55˚C
Power requirement 13.6VDC10%
(12.3VDC to 15.0VDC)
negative-grounded
Tx:40Amax Rx:2Amax
(openable between 10.2VDC
and 16.2VDC)
Transmitter
Output power 150
W pep
Carrier suppression 40dB or better
Spurious suppression 40dB or better
AF frequency response 350 to 2700Hz
(6dB bandwidth)
Microphone input 600Ω
Line input 600Ω, 0dBm (balanced)
Receiver
Receiving systems T
riple superheterodyne
Intermediate frequency 70.455MHz, 455kHz, 20.2kHz
J3E:
6.3μV or less (1.6 to 4MHz)
3.5μV or less (4 to 29.9999MHz)
F1B: 1.8μV or less (1.6 to 4MHz)
1.0μV or less (4 to 29.9999MHz)
AF output 5.0W max. 1W rated
Clarifier range 200Hz in 1Hz steps
Line output 600Ω, 0dBm (balanced)
Two-Tone Generator
Frequency of tones
1300Hz and 2200Hz
Frequency tolerance 1.5% or better
Duration of tones 250ms10ms
Variation between two tones 1:1.2 or less
Duration of the alarm signal 30 to 60s
Modulation depth 80%10%
NFC-196 Antenna Tuner (option)
Frequency range 1.6 to 30MHz
Power capability 200W pep
SWR after tuning 2 : 1
Tuning time
Automatic tuning : typical 3s
Preset tuning : typical 0.1s
Operating temperature -30
˚C to +60˚C
Power requirement 10.2VDC to 16.2VDC
negative-grounded
1.5A max
SPECIFICATION
JSB-196 SSB Radiotelephone
JSB-196
Components Model Q'ty Remarks
SSB Radiotelephone JSB-196 1
Hand Microphone NVT-140 1 Curl Cable
Power cable 7ZCJD 0043A 1 L=1m
Accessory JSB 196 1 Spare fuse,
-Access terminal, etc.
Instruction Manual 7ZPJD0108B 1 English
STANDARD COMPONENTS
Item Model Remark
Antenna Tuner NFC-196 With 5m RF and
control cables
DSC/NBDP MODEM NCT-196N With 1.5m control cable
and 3m power cable
(for voluntary fitting)
DC-DC Converter NBG-300
OPTION

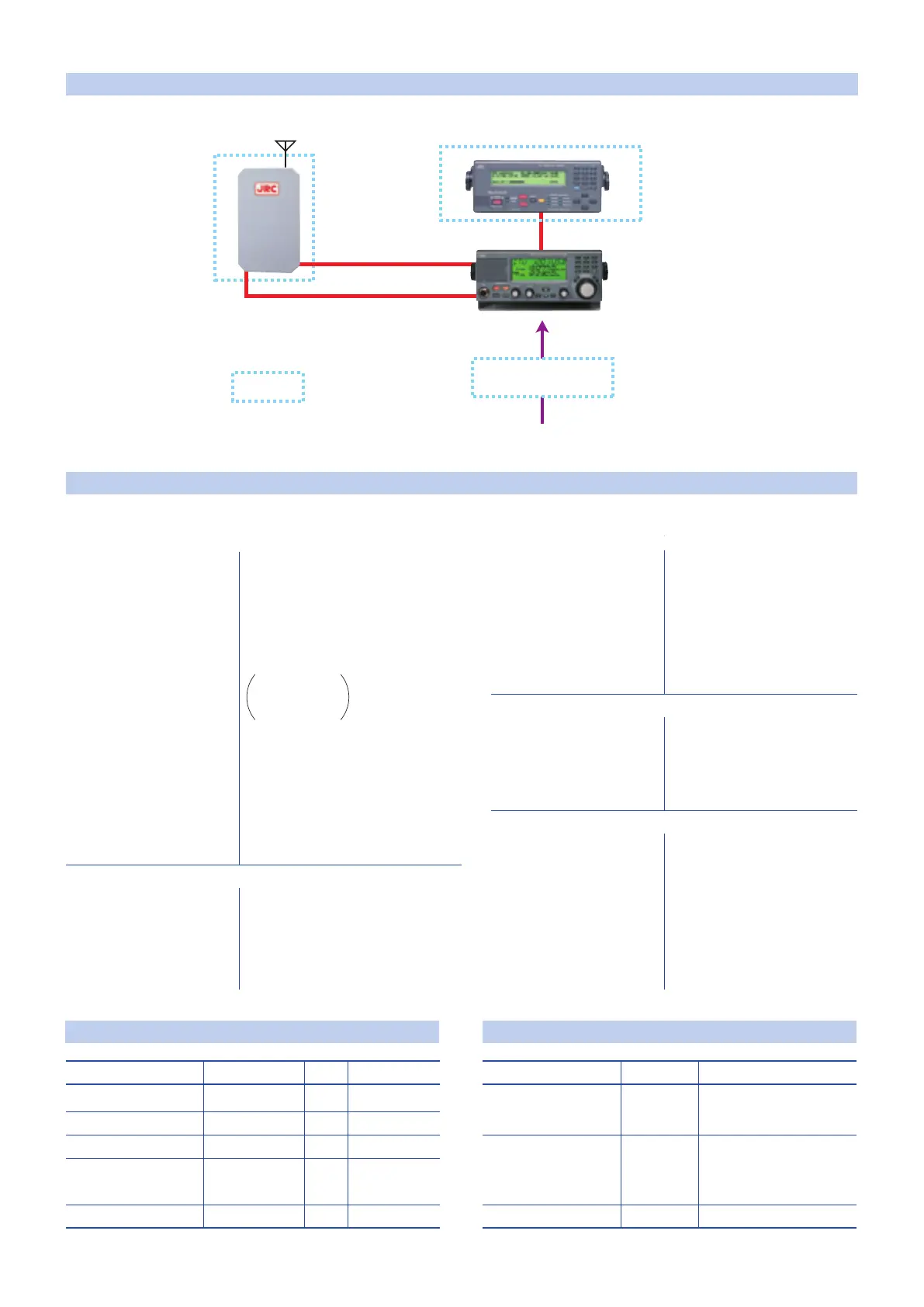

Transmission/Reception
Antenna
DSC/NBDP MODEM NCT-196N
(for voluntary fiting)
Antenna Tuner
NFC-196
DC13.6V
DC24V power supply
Control Cable(5m)
RF Cable(5m)
(Option)
DC-DC Converter
NBG-300
OPTION
SSB
Radiotelephone
JSB-196
