Page '

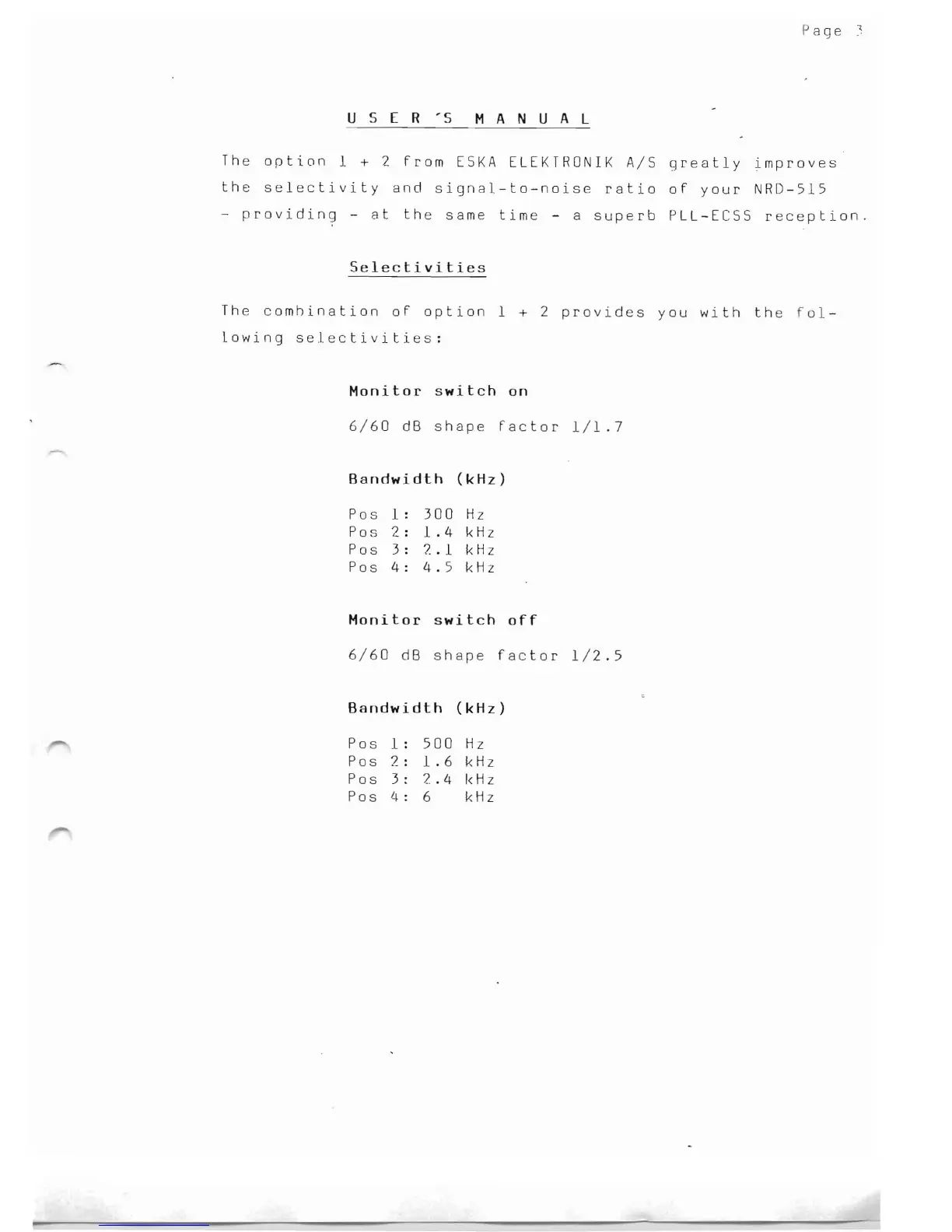

U 5 E R '5 M A N U A L
The option l + 2 from ESKA ELEKTRONIK A/S greatly improves
the selectivity and signal-to-noise ratio of your NRD-515
- providing - at the same time - a superb PLL-ECSS reception.
Selectivities
The comhination of option l + 2 provides you with the fol-
lowing selectivities:
Monitor switch on
6/60 dB shape factor 1/1.7
Bandwidth (kHz)
Pos l: 300 Hz
Pos 2: 1.4 kHz
Pos 3: 7..1 kHz
Pos 4: 4.5 kHz
Monitor switch off
6/60 dB shape factor 1/2.5
Bandwidth (kHz)
Pos l : 500
Hz
Pos
2:
1.6 kHz
Pos 3 : 2.4 I<Hz
Pos
4 :
6
kHz
