JS Pump JS100 User Manual

K
a
iir" F1WAV
ra ra
Ir !l
4
A ,
V
I 
_

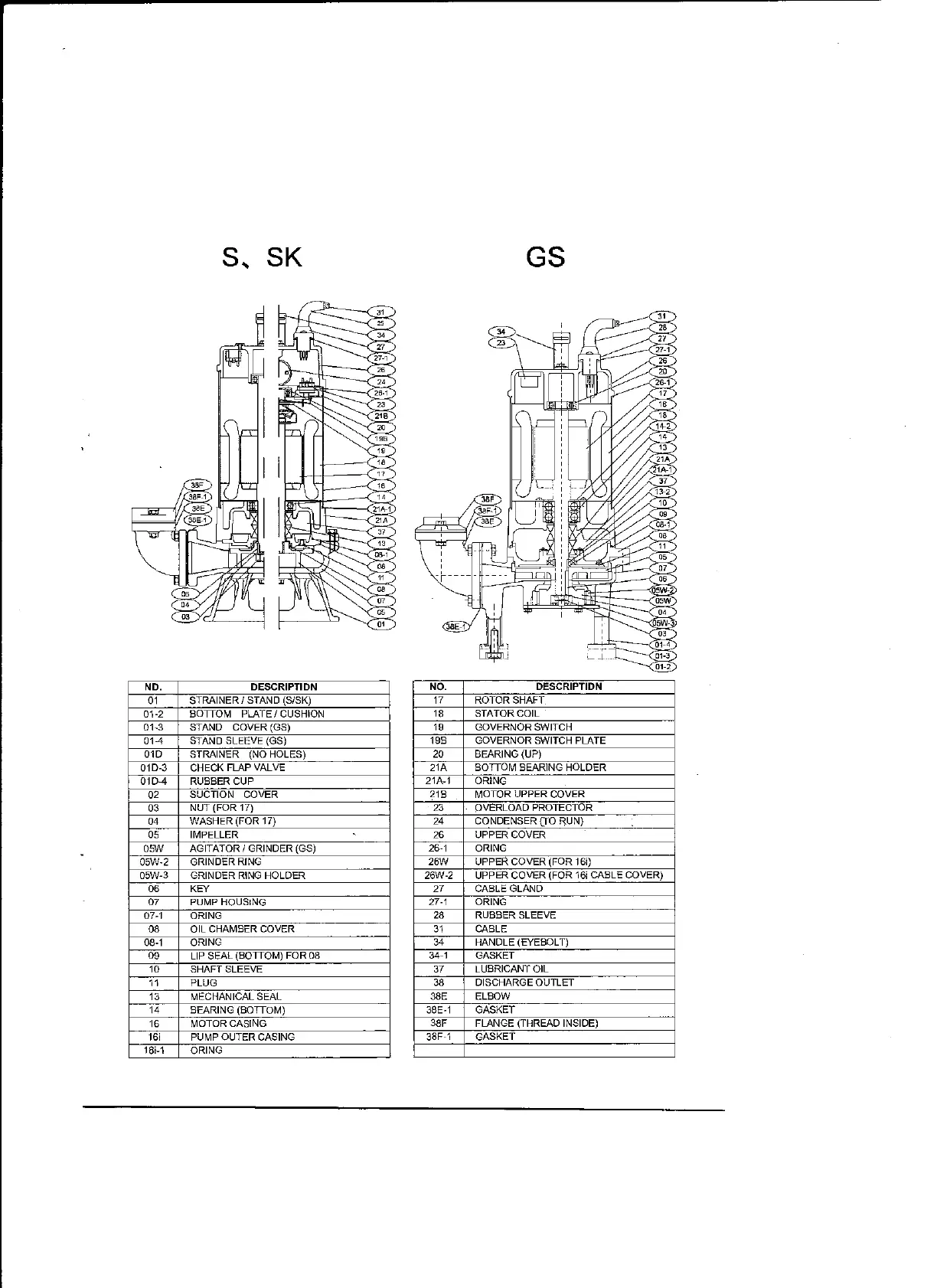

S, SK

GS
O. N DESCRIPTION
01
STRAINER / STAND (5/5K)
01-2
BOTTOM PLATE/CUSHION
01-3 STAND COVER (OS)
01-4 STAND SLEEVE (OS)
OlD STRAINER (ND HOLES)
OID-3 CHECK FLAP VALVE
OID-4 RUBBER CUP
02 SUCTION COVER
03
NUT (FOR I7)
04
WASHER (FOR 17)
05 IMPELLER
05W AGITATOR (GRINDER (OS)
05W-2
GRINDER RING
05W-3 GRINDER RING HOLDER
06 KEY
07 PUMP HOUSING
07-1 ORING
08
OIL CHAMBER COVER
08-I
ORING
09
LIP SEAL (BOTTOM) FOR 08
10 SHAFT SLEEVE
11 PLUG
13 MECHANICAL SEAL
14 BEARING (BOTTOM)
16
MOTOR CASING
161 PUMP OUTER CASING
161-1 ORING
NO. DESCRIPTION
I? ROTOR SHAFT
18 STATORCOIL
19
GOVERNOR SWITCH
19B GOVERNOR SWITCH PLATE
20 BEARING (UP)
21A BOTTOM BEARING HOLDER
21A-1 ORING
21B
MOTOR UPPER COVER
23 OVERLOAD PROTECTOR
24 CONDENSER (TO RUN)
26 UPPER COVER
26-1 ORING
26W UPPER COVER (FOR 161)
26W-2
UPPER COVER (FOR 16i CABLE COVER)
27 CABLE GLAND
27-1 ORING
28 RUBBER SLEEVE
31 CABLE
34 HANDLE (EYEBOLT)
34-1 GASKET
31
LUBRICANT OIL
38 DISCHARGE OUTLET
38E ELBOW
38E-1
GASKET
38F FLANGE (THREAD INSIDE)
38F-I GASKET

JS Pump JS100 Specifications

General

Brand	JS Pump
Model	JS100
Category	Water Pump
Language	English
