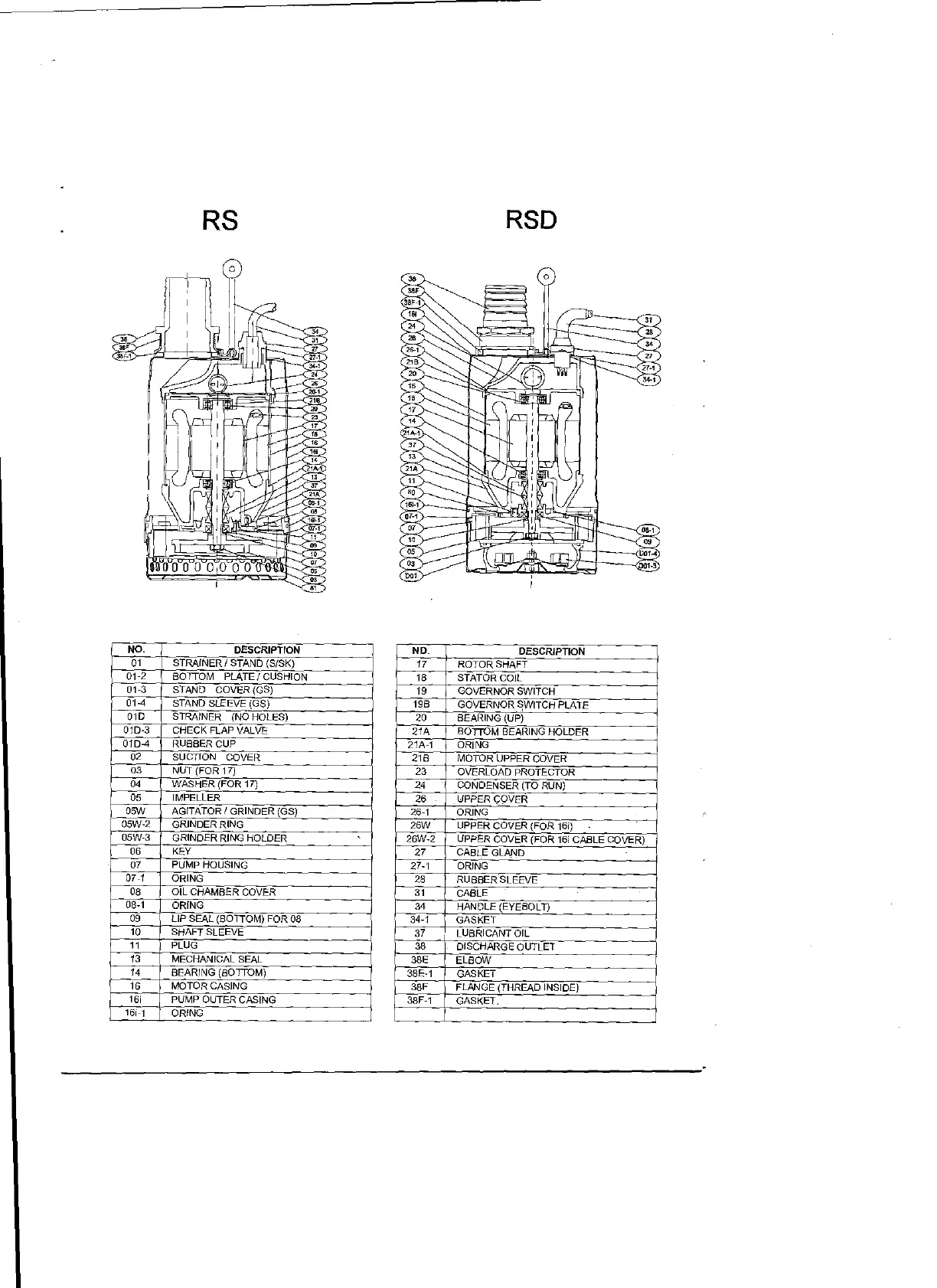

JS Pump JS100 User Manual

RS

RSD
NO.
DESCRIPTION
NO.
DESCRIPTION
01
STRAINER / STAND (5/5K)
17
ROTOR SHAFT
01-2
BOTTOM PLATE! CUSHION
18 STATOR COIL
01-3 STAND COVER (GS)
19 GOVERNOR SWITCH
01-4 STAND SLEEVE (GS)
19B
GOVERNOR SWITCH PLATE
OlD
STRAINER (NO HOLES)
20 BEARING (UP)
OID-3 CHECK FLAP VALVE
21A
BOTTOM BEARING HOLDER
01D
RUBBER CUP
21A-1 ORING
02 SUCTION COVER
218 MOTOR UPPER COVER
03
NUT (FOR IT)
23
OVERLOAD PROTECTOR
04 WASHER (FOR 17)
24 CONDENSER (TO RUN)
05 
IMPELLER
26  UPPER COVER
05W  AGITATOR! GRINDER (GS)
26-1  ORING
OSW-2  GRINDER RING
26W  UPPER COVER (FOR 161)
OSW-3
GRINDER RING HOLDER
26W-2
UPPER COVER (FOR 161 CABLE COVER)
06 KEY
27
CABLE GLAND
07 PUMP HOUSING
27-1
ORING
07-1
ORING
26 RUBBER SLEEVE
08 OIL CHAMBER COVER
31 CABLE
P os_i
ORING
34
34-1
HANDLE (EYEBOLT)
09  LIP SEAL (BOTTOM) FOR 08
GASKET
10  SHAFT SLEEVE
37  LUBRICANT OIL
11 PLUG
38 
DISCHARGE OUTLET
13
MECHANICAL SEAL
38E  ELBOW
14
BEARING (BOTTOM)
3BE-1  GASKET
16 MOTOR CASING
3SF 
FLANGE (THREAD INSIDE)
161
PUMP OUTER CASING
3SF-I
GASKET.
161-1 0 RING
