Page 10

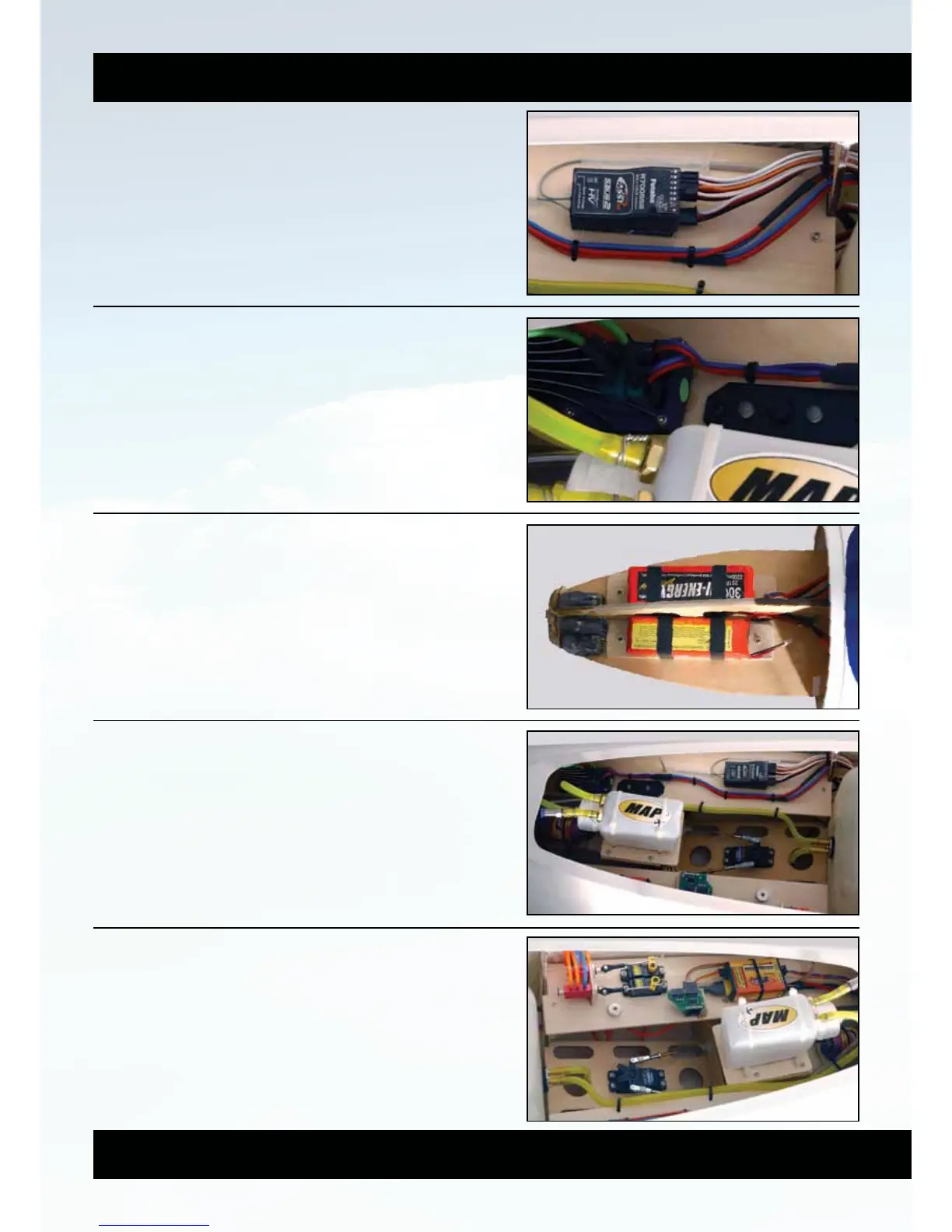

Install the receiver on the right hand equipment plate
using double sided tape and neaten the wiring using
cable ties.
Install the switch and regulator/power system (if used)
in front of the receiver, ensuring easy access to the
switch when the canopy is removed.
ECU and receiver battery packs should be mounted
as far forward as possible to reduce the amount of
nose weight required. Do make sure that the nose
moulding will still fit correctly when the battery packs
are installed.
The right side equipment plate carries the receiver,
switch and power system, note also that the fuel tubing
from main to header tank is secured along the plate,
and the run of the overflow tube from the main tank to
the brass tube glued through the fuselage underside.
Typical layout of equipment shown from the right hand
side, note the forward position of the relatively heavy
fuel pump, just ahead of the header tank.
Step 40
Step 41
Step 42
Step 43
Step 44
