JTS CS-8 Instruction Manual

8 Specifications
Frequency range: . . . . . . . . 35 – 20 000 Hz
THD: . . . . . . . . . . . . . . . . . . < 0.06 %
S / N ratio: . . . . . . . . . . . . . . . > 70 dB
Inputs (sensitivity/ impedance)
Microphone: . . . . . . . . . . . 0.2 mV/ 4.7 kΩ
Line: . . . . . . . . . . . . . . . . . 60 mV/ 20 kΩ
Phantom power (individually switchable)
CS-4: . . . . . . . . . . . . . . . . +12 V
CS-8: . . . . . . . . . . . . . . . . +48 V
Output MIX OUT
Rated output voltage: . . . 1 V
Output impedance: . . . . . 200 Ω

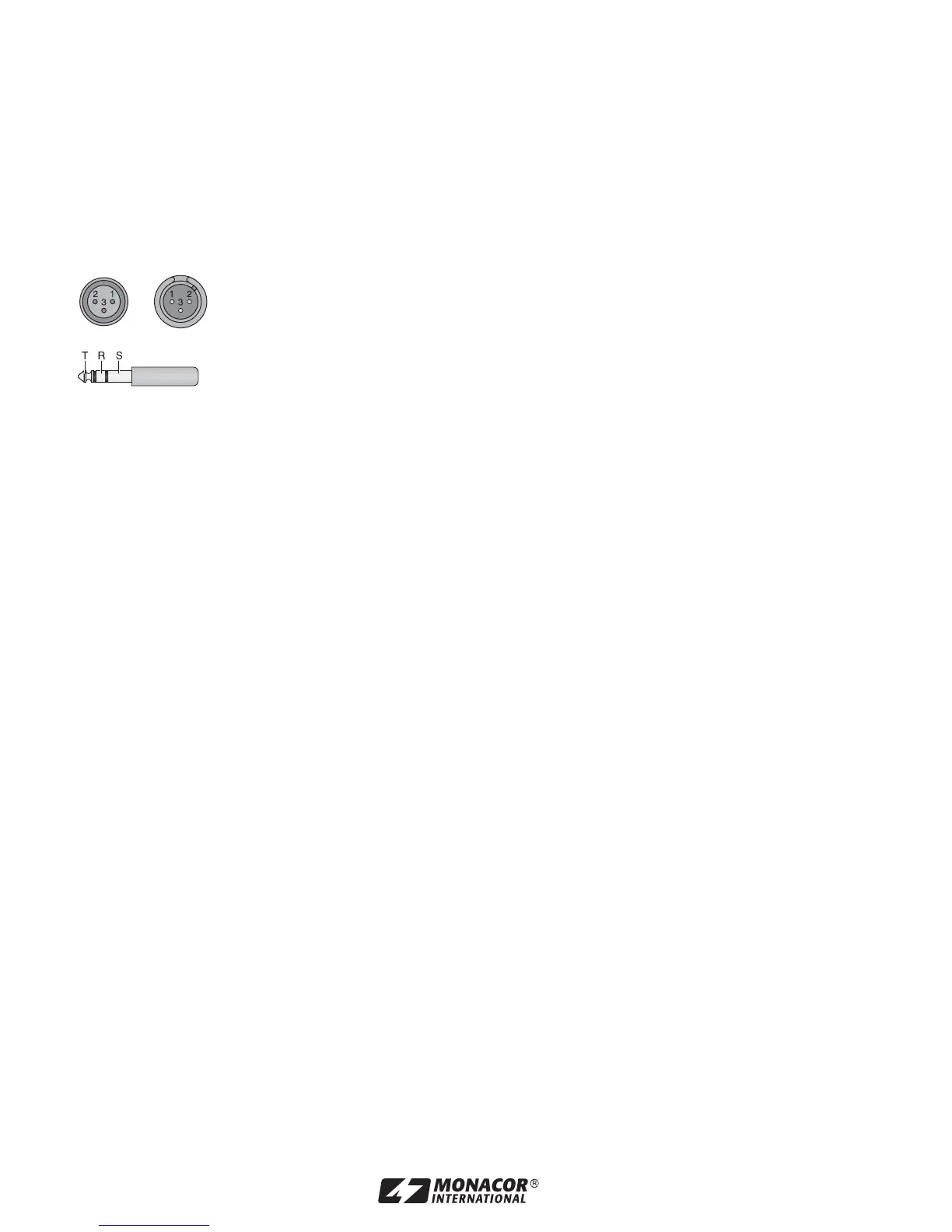

Contact configuration
XLR connections
6.3 mm plug
Control outputs: . . . . . . . . . . 0 V/ +4 V (off / on)
Power supply: . . . . . . . . . . . via plug-in power
supply unit pro-
vided, connected
to 230 V~/50 Hz
Ambient temperature: . . . . . 0 – 40 °C
Dimensions
CS-4: . . . . . . . . . . . . . . . . 200 × 44 × 212 mm
(1 rs)
CS-8: . . . . . . . . . . . . . . . . 420 × 44 × 199 mm
(1 rs)
Weight
CS-4: . . . . . . . . . . . . . . . . 1.4 kg
CS-8: . . . . . . . . . . . . . . . . 2.3 kg
Subject to technical modifications.
T = signal +
R = signal
-
S = ground
1 = ground
2 = signal +
3 = signal -
9
ENGLISH
All rights reserved by MONACOR
®
INTERNATIONAL GmbH & Co. KG. No part of this instruction
manual may be reproduced in any form or by any means for any commercial use.

JTS CS-8 Specifications

Power

power supply	18VDC, 1A
power consumption	18 Watts
fuse	1A 250V

Electrical Characteristics

voltage output	+4VDC±0.3V
phantom power	+48V
control voltage	+12V

Impedance

input impedance (mic)	4.7KΩ
input impedance (line)	20KΩ
output impedance (mic)	300Ω
output impedance (line)	200Ω

Audio Performance

maximum output level (line)	>+17 dB
maximum gain	≥70dB
frequency response	35~20, 000 Hz
thd% input (1 KHz -50dB)	<0.06%
signal-to-noise ratio	>70dB

Weight and Dimensions

weight	2.25kg
dimensions (length)	420.6mm
dimensions (width)	198.5mm
dimensions (height)	44.2mm
