12

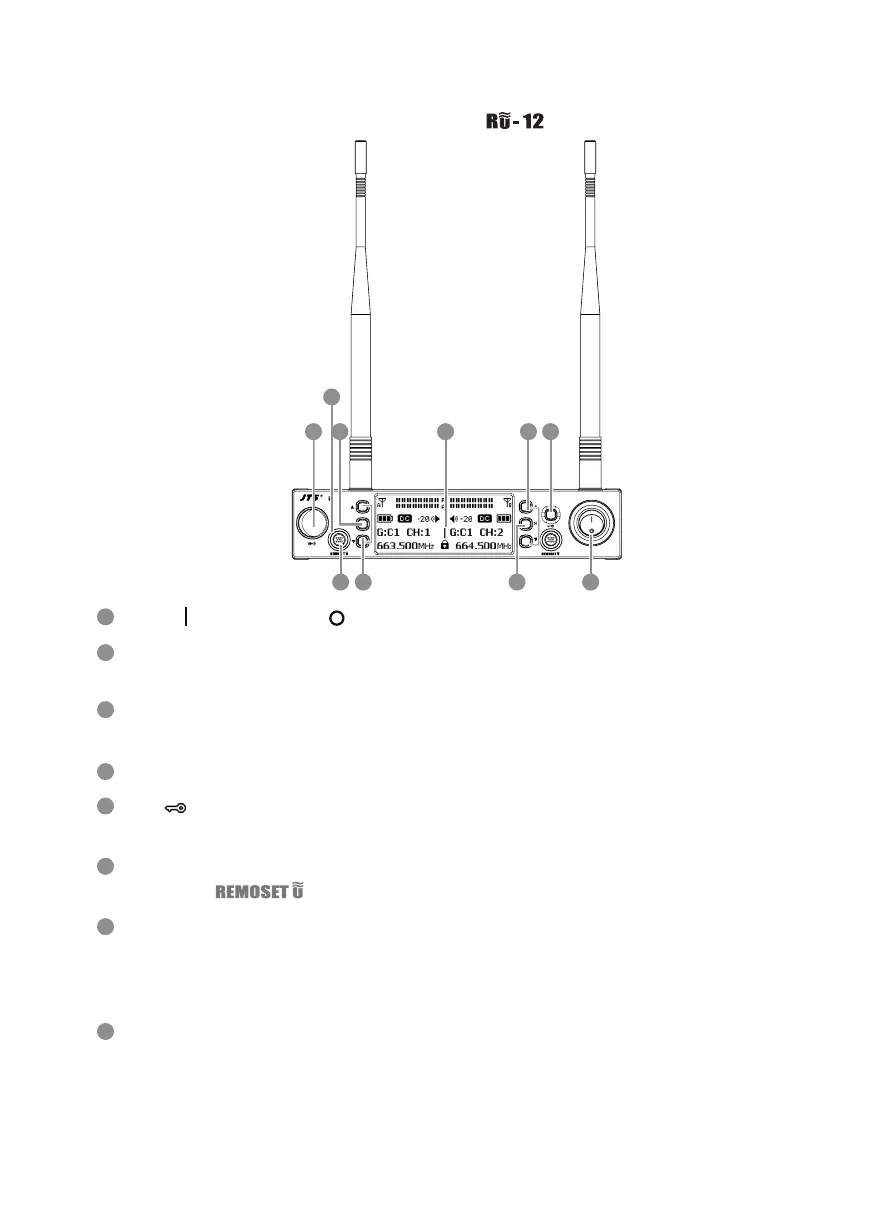

Front panel
4-1-4 UHF PLL dual-channel diversity receiver //
1
4
2
5
3
6
7
8
Power: means “ON” and means “OFF”
SET: this is for function settings. Push and hold for 2 seconds to enter the setting
mode. Push “SET” repeatedly to search for the function you wish to set.
▲/▼In the setting mode, push▲/▼to change the function parameter
In the non-setting mode: push▲/▼to adjust volume
LCD display
Lock :push and hold “Lock” for 2 seconds to lock the buttons in order to prevent
pushing any button by accident.
Remoset u : this allows user to synchronize the transmitter after modifying a param-
eter. Push “ ” to synchronize the settings to the transmitter.
Remoset indicator : this shows the current pairing status. It ashes rapidly when
data is being transmitted and the ashing stops when the synchronization is com-
pleted. However, the ashing slows down if synchronization fails after a period of
time of pairing attempt.
Ultrasonic transmission unit: it transmits digital pairing data at ultrasonic frequency.
When setting, direct the ultrasonic receiving element of the microphone to the ultra-
sonic transmitting unit of the receivers. The eective range is 30º on both sides with
the optimized distance at 30cm.
R -12
UHF PLL DUAL CHANNEL DIVERSIT Y RECEIVER
2
548
7
6 3
3
1
2
