JTS RU-8012DB - Preparing Procedures & Basic Operation

19
MINIATURE MUSIC INSTRUMENT WIRELESS SYSTEM
5. Preparing Procedures & Basic Operation
5-1 Receiver

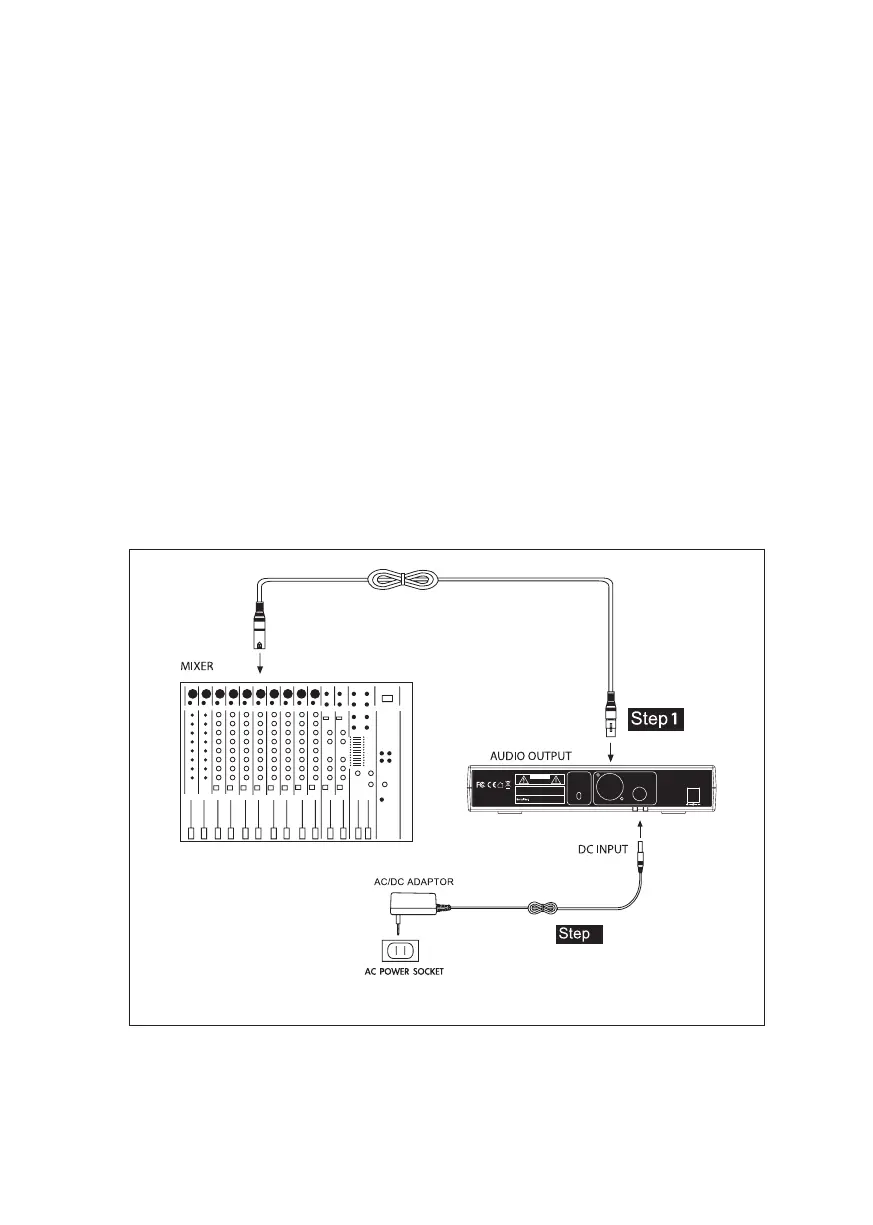

(1) Connect to the subsequent unit (e.g. mixer, or amplier)
Connect one end of a proper AF cable to the AF Output or Balanced
XLR Output socket, then plug another end to the “MIC IN” input socket of
a mixer or a amplier (Step 1)
(2) Connect the power supply unit
Plug in one end of AC/DC adaptor cable to Power Supply Jack in the rear
panel of receiver, and plug another end into an AC outlet (Step 2)
Caution
To prevent accidental disconnection of the plug from the jack, lead the
cable around the hook of the strain relief.
2
0dB
-20dB
AF OUTPUT
OUTPUT
LEVEL
Freq.Range:
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
DCV INPUT
12-18V/200mA
BALANCED
UNBALANCED
Made in Taiwan
No. 148, 9th Industry Road,
Ta-Li Industrial Park,
Taichung City, Taiwan, R.O.C.
JTS PROFESSIONAL CO., LTD.
