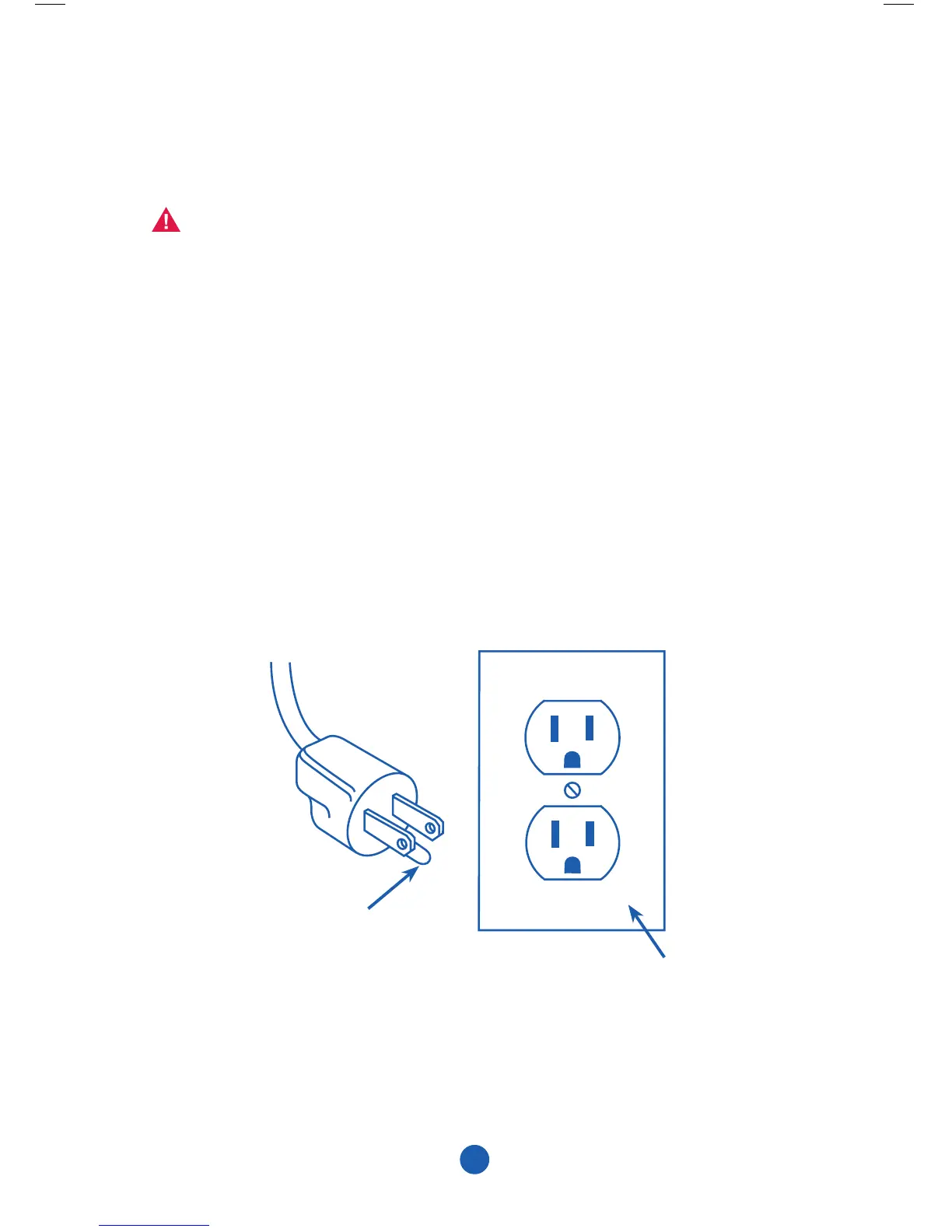

Figure 2
9
GROUNDED GFCI
OUTLET BOX
GROUNDING PIN
Electrical Connection
Your JUGS pitching machine is powered by a 90 volt motor(s). Do not operate
this machine on direct current (DC). A substantial voltage drop will cause a loss of
power and the motor will overheat. If the machine does not operate when plugged
into an outlet, double check the power supply. Your pitching machine will operate
under a standard 110 voltage AC outlet. Do not use an adapter with this product.
This machine is intended for use on a circuit that has an outlet like the one
shown in Figure 2. It also has a grounding pin like the one shown.
When working with the machine outdoors, use an extension cord designed
for outside use. This is indicated by the letters “WA” on the cord’s jacket. Before
using the extension cord, inspect it for loose or exposed wires and cut or worn
insulation.
WARNING: Keep the cord away from the rotating tire area. Repair or
replace a damaged or worn cord immediately.
