Using the Brakes
The bike comes equipped with front and rear Tektro Dorado
hydraulic disc brakes; the very best available for e-bikes. The
brakes’ main function is to slow down or to stop the bicycle.

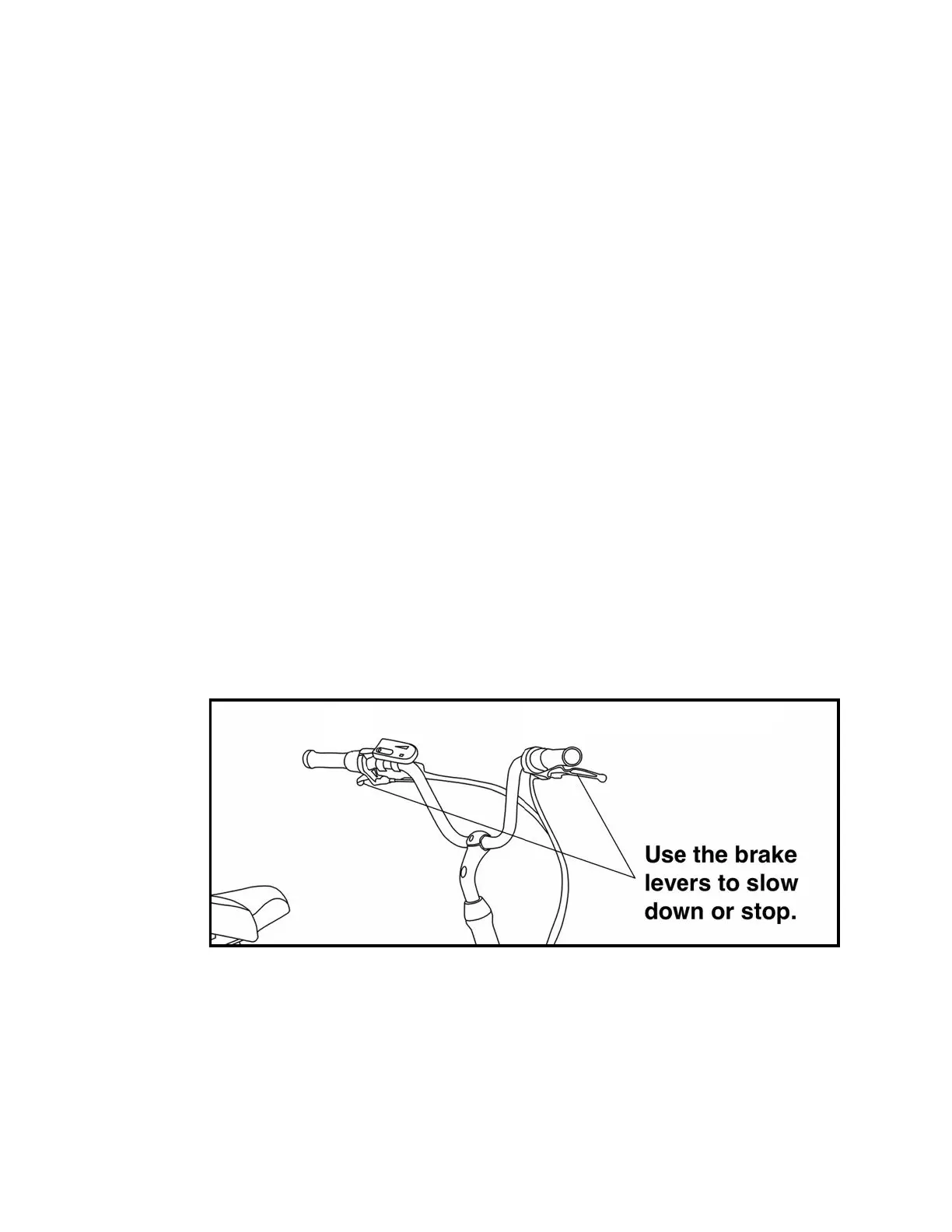

The brake on the front wheel is controlled by the lever on the left-
hand side of the handlebar
The brake on the rear wheel is controlled by the lever on the right-
hand side of the handlebar
The front brake provides the majority of the bicycle's stopping
capability
When slowing down on slippery surfaces, use the rear brake first
before applying the front brake
A signal wire from each brake lever automatically cuts power to the
motor when either brake is being used. This prevents undue wear to
the electric motor
4
