How to read the battery level

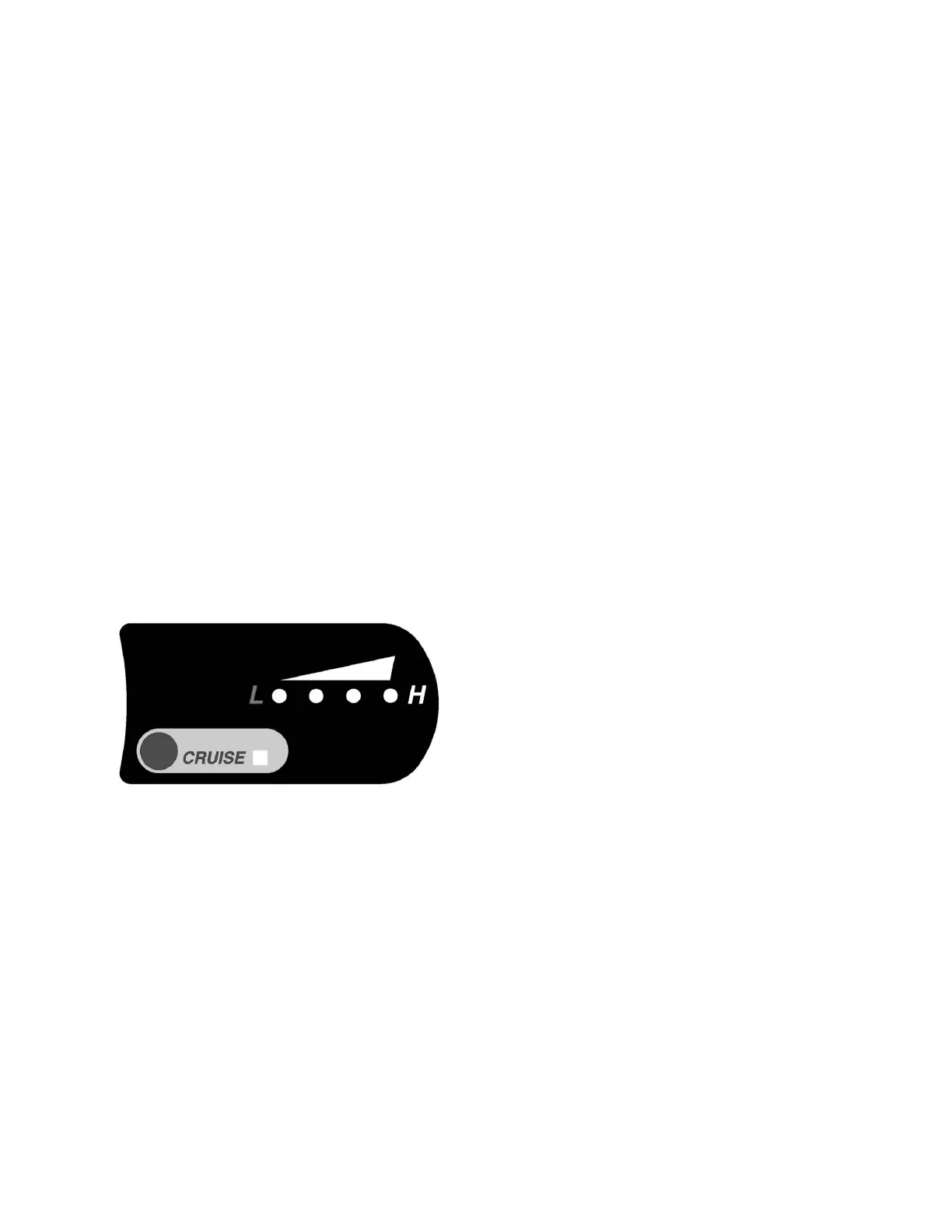

There are 4 LED lights on the display panel which will give you an
indication of the batteryʼs voltage. Because the battery gauge
measures voltage, only an approximate estimation of the battery's
state can be obtained. The battery’s voltage can vary greatly
depending on a variety of conditions.
The voltage will decrease temporarily when using the throttle. It may
drop to only 1 light when going uphill regardless of the charge state.
This is normal operation. The voltage will be lower if the battery has
been in a cold environment.
To more accurately read the batteryʼs charge state, let off the throttle.
The display lights will stabilize after 1 second to give an indication of
the battery’s level.
Use this guideline to estimate the battery's charge level:
Let off the throttle to read the Lights !!!! 4 Lights
The battery is between 80% and 100% charged.
!!!! 3 Lights!
The battery is between 40% and 80% charged. Speed will feel reduced.
!!!! 2 Lights!
The battery level is low and should be recharged soon.
!!!! 1 Light!
Stop using the throttle, recharge the battery pack.
