JUKI HZL-35Z Service Manual

SECTION
PAGE
1
1
(1)
(3)
(4)
(2)
(5)
(6)

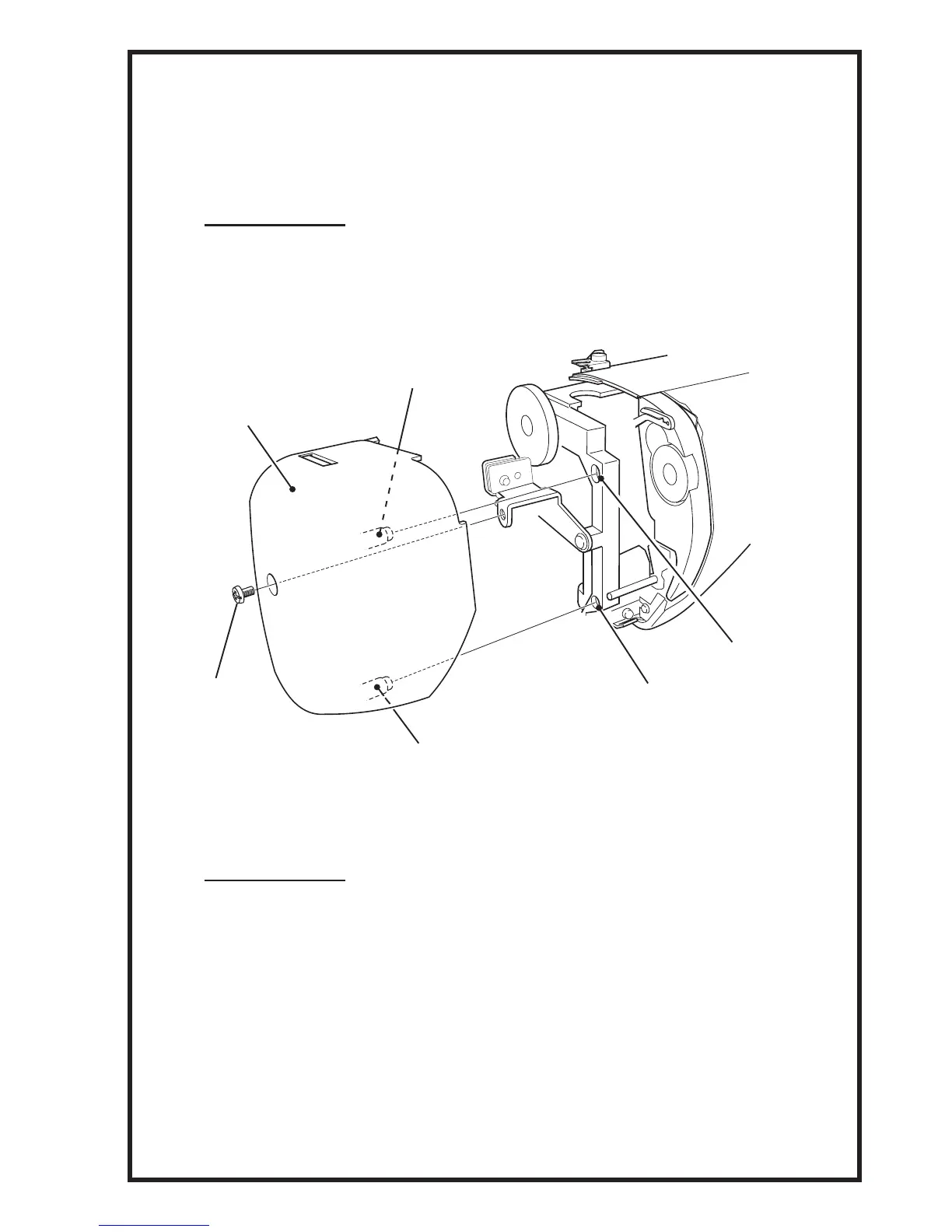

[ 1 ] DISASSEMBLING OF OUTER PARTS
1. Face cover
Disassembling
1. Remove screw (1) and take out face cover (2).
Re-assembling
1. Insert juts (5), (6) of face cover (2) into holes (3), (4) of arm.
2. Fix screw (1) fitting face cover profile to arm profile.
