MEB-3200SS, 3200RS, 3200JS, 3200CS, 3200TS (September, 2003) 2/4

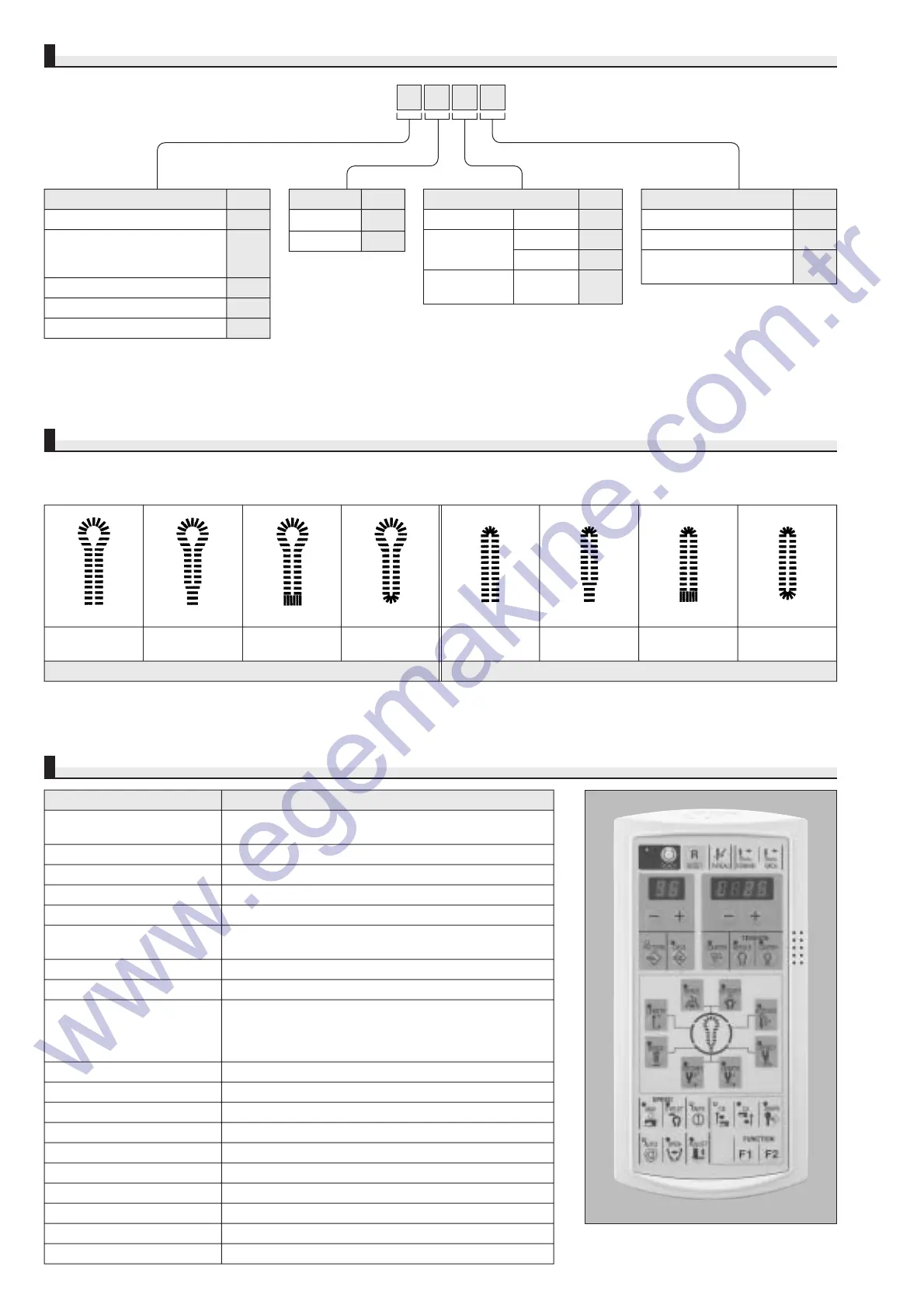

OPERATION PANEL
WHEN YOU PLACE ORDERS (COMPLETE)
EYLET SHAPES AND STRAIGHT BUTTONHOLE SHAPES
LIST OF MAJOR FUNCTIONS OF THE OPERATION PANEL
Code
K
D
L
M
Power supply
Single-phase 220〜240V
3-phase
220〜240V
220〜415V
Single-/3-phase
220〜415V
(for CE)
Buttonhole
with a taper bar
Buttonhole with
a straight bartack
Buttonhole with
a round bartack
Buttonhole
with a taper bar
Buttonhole with
a straight bartack
Buttonhole with
a round bartack
● The machine is provided as standard with 10 different stitching shape patterns.
As many as 89 different patterns can be stored in memory and selected.
＊ Registered in standard patterns (S, R type)
＊＊ Registered in standard patterns (J, C type)
Eyelet buttonhole
Item Function
The needle bar turns by 180 degrees to allow the operator to
thread the machine head from this side of the machine.
Moves the feed forward stitch by stitch.
Moves the feed backward stitch by stitch.
Displays and specifies a pattern number.
Displays and specifies a data number.
Can be used as a counter for the number pieces.
(The counter can either count up or count down.)
Displays and specifies data on needle thread tension.
Displays and specifies data on looper thread tension.
Specifies data on the respective buttonhole shape sections.
Cutting length, number of parallel buttonhole sections, number
of buttonhole eyelet sections, cutting space, eyelet section space,
taper bar length, number of taper bar sections, taper bar offset
Specifies a sewing speed.
Specifies a reduced speed for eyelet section
Switches between operation with and without the knife.
Establishes data on the cut-before knife.
Establishes data on the cut-after knife.
Selects the type number of knife to be used.
Switches between automatic operation and manual operation.
Selects the mode used to hold open the material-opening device.
Enters the cloth cutting knife adjusting mode.
Activates the desired data setting using the memory switch.
Straight buttonhole
＊ ＊ ＊ ＊ ＊
＊＊
＊
＊＊
＊
＊＊
＊
Needle threading
Forward
Backward
Pattern No.
Data No.
Counter
Needle thread tension
Looper thread tension
Programming of data on detailed
stitching shape
Sewing speed
Sewing speed for eyelet section
Knife ON/OFF
Cut-before knife
Cut-after knife
Knife No.
Automatic operation
Material-opening device
Knife adjustment
Function
Table stand Code
Standard S
On the table A
Option Code
Not provided Z
Needle thread clamp device A
Multi-cutting device
Needle thread clamp device
＊
M
＊When option category M (multi-cutting
device, needle thread clamp device) is
selected, S is the only sewing specification
category available for selection (men's and
ladies' wear).
＊When the sewing specification category T (trousers)
is selected, A is the only option category available
for selection (needle thread clamp device).
The table stand "A" is
applicable for the
MEB3200J/C/T only.
Application Code
For men's and ladies' wear S
For combined use for lateral and
longitudinal buttonholing: R
for men's and ladies' wear
For jeans J
For cotton pants and working wear C
For trousers
＊
T
MEB3200
