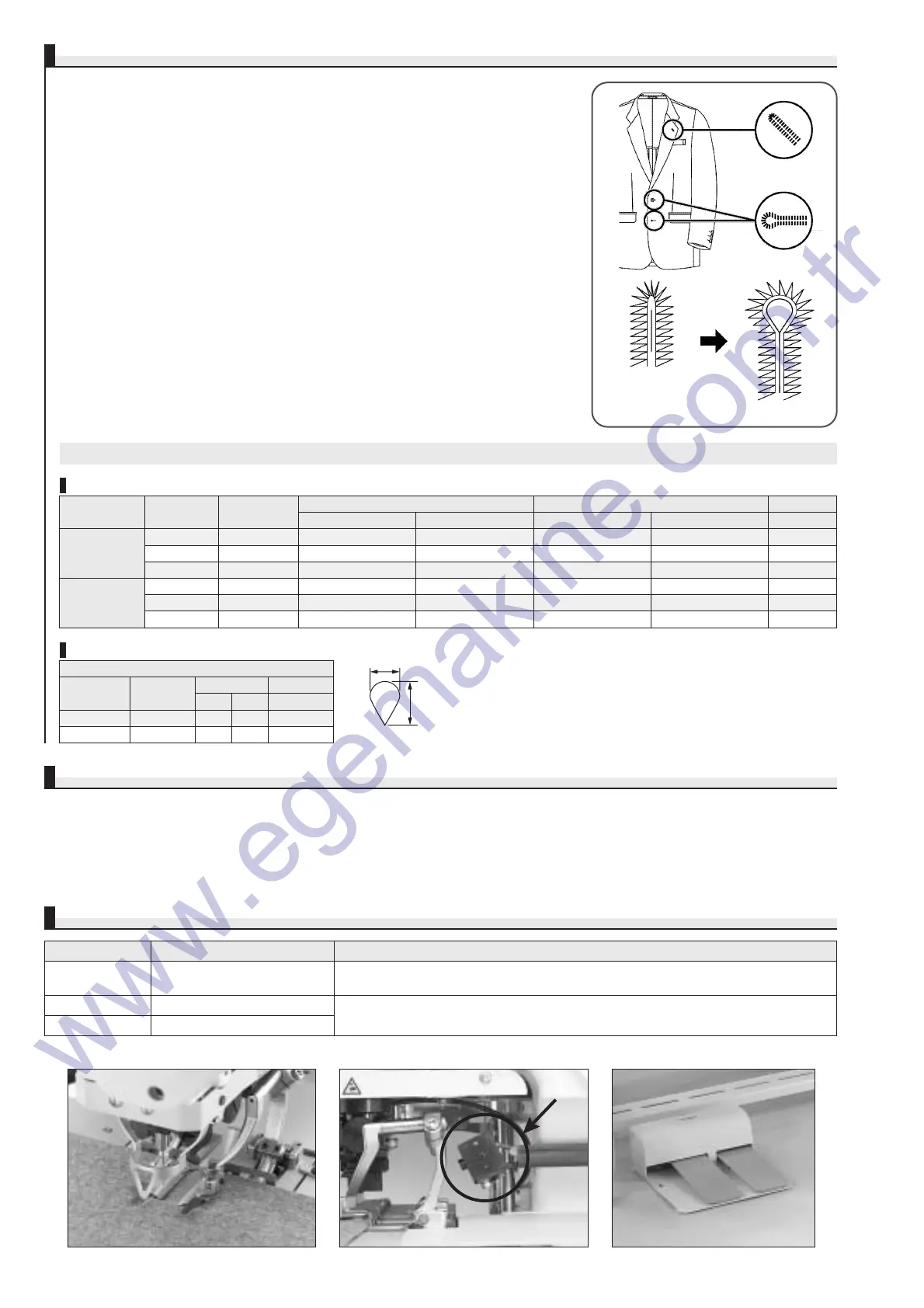

MEB-3200SS, 3200RS, 3200JS, 3200CS, 3200TS (September, 2003) 4/4
Shape
X
Y
Flower hole Eyelet buttonhole
Flower hole
Eyelet buttonhole
Pedal switch, asm.Marking lamp, asm.
Part No. Description
320-70054 Marking lamp, asm.
M8590-513-0AA Pedal switch, asm.
M9014-620-0A0 Pedal switchcable, asm.
Feature
When placing the material on the machine, accurate lateral positioning is guaranteed.
(for MEB-3200SS, JS, CS)
The work clamp can be lifted/lowered and the machine can be stand using the pedal switch.
OPTIONS
MULTI-CUTTING DEVICE
● The multi-cutting device incorporates a separate cloth cutting knife with two
sections of blade --- one intended for the eyelet sections of buttonholes and
one intended for straight sections. When sewing men's wear, the machine
can sew eyelet buttonholes on a front body and straight buttonholes on a
lapel without changing the knife. Conventionally, two different types of
buttonholing machines are required for these processes. By performing two
different kinds of buttonholing, the MEB-3200SS□M halves the time required
for the setup procedure, including color thread changing. The end result is
increased productivity.
● By dropping the knife two or more times per cycle, the machine can sew
buttonholes of various sizes without changing the knife guard (18mm to
38mm for eyelet buttonholes and 10mm to 38mm for straight buttonholes).
The machine is best suited for small-lot production of ladies' wear subject to
frequent design changes.
NEEDLE THREAD CLAMP DEVICE
● MEB-3200□S□A, provided with a needle thread clamp device.
● The needle thread clamp device eliminates the thread securing procedure by tucking the needle thread in the finished seams.
● The needle thread clamp device retains the needle thread to ensure neat seam formation from the very first stitch.
＊The needle thread clamp device can be retrofitted to the machine. Optional part: Part No.: 320-24481
REPLACEMENT GAUGES
Knife guard (for combined use for eyelet and straight buttonhole)
Cloth cutting knife (eyelet)
Knife guard Knife guard
Part No.
Max. sewing length (mm) Min. sewing length (mm) Application
shape length (mm)
Eyelet buttonhole Straight buttonhole Eyelet buttonhole Straight buttonhole S
32 320-87603 38 38 32 22
No-step type 26 320-87702 38 38 26 16
18 320-87801 38 38 18 10 ◎
32 320-87900 38 38 22 22
Stepped type 26 320-88007 38 38 16 16
18 320-88106 38 38 10 10
Multi-cutting type
Eyelet name Part No.
Shape (mm) Application
XY S
3A 320-87207 2.9 4.4 ◎
6A 320-87306 2.7 5.1
