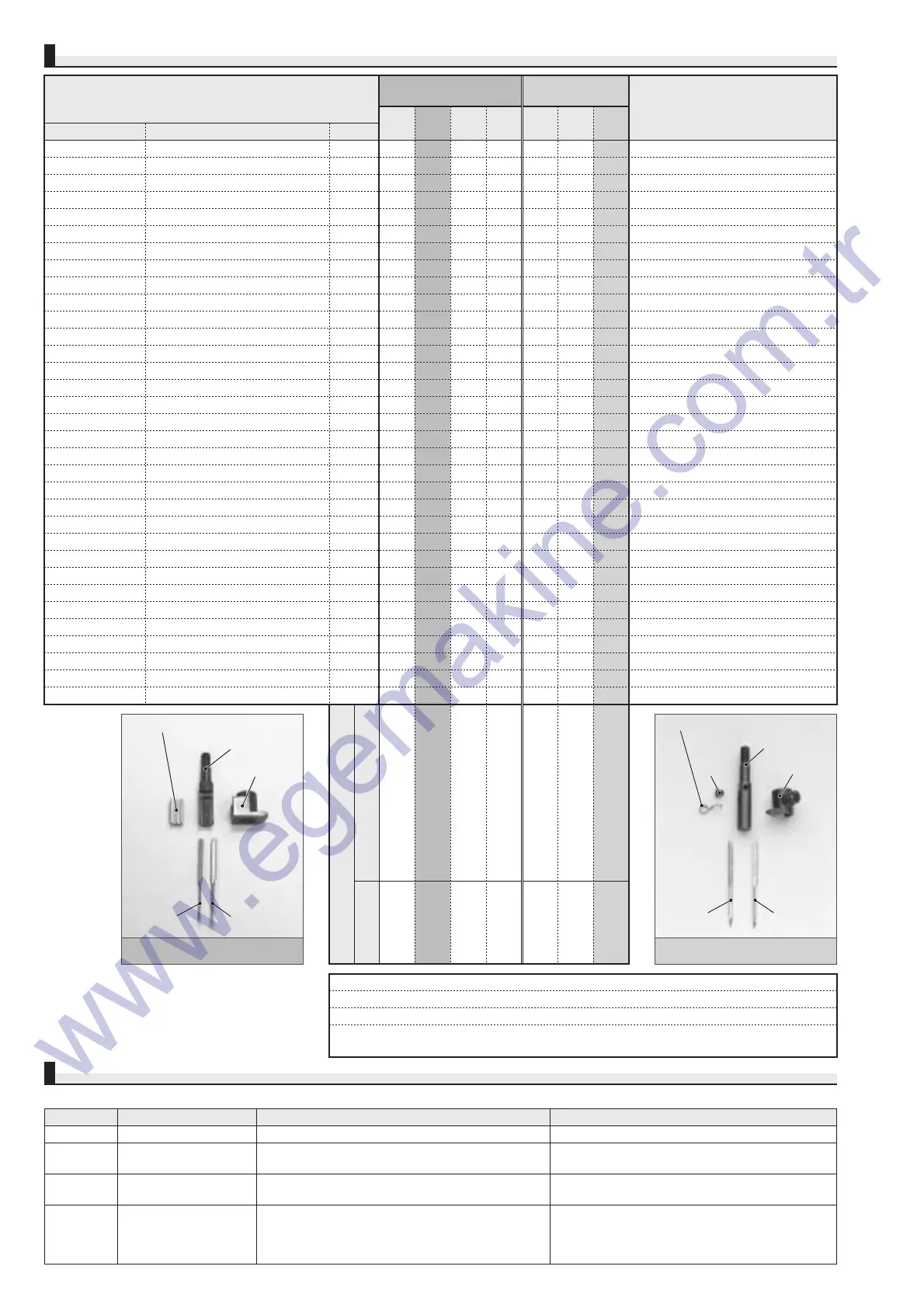

MP-200N (September, 2003) 2/2
Needle clamp spacer
Needle clamp
Needle holder
Needle
Hook-needle
Replaceable parts
Part No. Description
Quantity
231-24100 Needle clamp S 1
231-24308 Needle clamp spacer (1.2mm) 1
231-24407 Needle clamp spacer (1.6mm) 1
231-24506 Needle clamp spacer (2.0mm) 1
231-24605 Needle clamp spacer (2.5mm) 1
231-24803 Needle clamp (3mm) 1
231-24902 Needle clamp (4mm) 1
231-25008 Needle clamp (5mm) 1
231-24209 Needle holder S 1
SS-8090540-SP Screw 1
231-25107 Needle holder (3mm) 1
231-25206 Needle holder (4mm) 1
231-25305 Needle holder (5mm) 1
SS-7090530-SP Needle clamp screw 1
231-25404 Needle clamp hook 1
SS-5060310-SP Screw 1
231-22658 Presser S (asm.) 1
231-22757 Presser L (asm.) 1
231-23003 Throat plate (1.4×3.0) 1
231-23102 Throat plate (1.6×4.2) 1
231-23201 Throat plate (1.6×4.7) 1
231-23300 Throat plate (2.2×5.6) 1
231-23409 Throat plate (2.2×6.6) 1
231-23508 Throat plate (2.2×7.6) 1
231-25750 Spreader fitting base (asm.) 1
231-38209 Spreader (JC1023) 1
SM-4020301-SC Screw 1
231-25800 Spreader (3mm) 1
231-25909 Spreader (4mm) 1
231-26006 Spreader (5mm) 1
231-36104 Looper clank 1
231-21502 Looper clank B 1
SM-8060612-TP Screw 2
Remarks
1.2 1.6 2.0 2.5 3.0 4.0 5.0
mm mm mm mm mm mm mm
▼◎▼▼ S type, common
○ S type, exclusive to 1.2mm
◎ S type, exclusive to 1.6mm
● S type, exclusive to 2.0mm
○ S type, exclusive to 2.5mm
○ L type, exclusive to 3.0mm
○ L type, exclusive to 4.0mm
◎ L type, exclusive to 5.0mm
▼◎▼▼ S type, common
▼◎▼▼ S type, common
○ L type, exclusive to 3.0mm
○ L type, exclusive to 4.0mm
◎ L type, exclusive to 5.0mm
○○◎L type, common
○○◎L type, common
○○◎L type, common
▼◎▼▼ S type, common
▼▼◎L type, common
○ S type, exclusive to 1.2mm
◎▼ S type, common to 1.6~2.0mm
○ S type, exclusive to 2.5mm
○ L type, exclusive to 3.0mm
○ L type, exclusive to 4.0mm
◎ L type, exclusive to 5.0mm
▼◎▼▼○ S type, common/L type 3.0mm
▼◎▼▼ S type, common
▼◎▼▼○ S type, common/L type 3.0mm
○ L type, exclusive to 3.0mm
○ L type, exclusive to 4.0mm
◎ L type, exclusive to 5.0mm
▼◎▼▼ S type, common
▼▼◎L type, common
▼ ◎ ▼ ▼ ▼ ▼ ◎ Common to types and sizes
◎ Standard parts for S and L types (gauge set is not prepared)
● Accessory parts for S type (gauge set is not prepared)
○ Parts to be purchased (included in a gauge set) at the time of changing sizes
▼ Parts not to be purchased (not included in a gauge set) at the time of changing sizes since
they are included in S or L type machine as accessories.
＊
In order to be applicable to a wider range of materials, various types of needle bar cranks with different thread take-up timings have been prepared.
●Needle bar crank
Part No. Thread take-up timing Type Remarks
231-21106 Standard
231-21205 Standard −10°
231-21304 Standard ＋10°
231-21403 Stepless setting
Needle gauge 1.6mm Needle gauge 5.0mm
Needle clamp
Screw
Needle holder
Needle Hook-needle
Needle clamp hook
―
Thread is applied with a higher tension as compared
with the standard needle bar crank
Thread is applied with a lower tension as compared
with the standard needle bar crank
―
Standard timing (provided as standard)
Type timing, of which is earlier than that of the
standard needle bar crank by 10°
Type timing, of which is later than that of the standard
needle bar crank by 10°
A Needle bar crank which has a flat shaft to permit the
stepless setting of thread take-up timing.
Note, however, that the needle bar stroke changes
according to the thread take-up timing.
S type
(1.6mm, standard)
L type
(5.0mm, standard)
REPLACEABLE PARTS OF GAUGES
OPTIONS
Part number of gauge set
Part No. Description
231-24357 Needle gauge size 1.2mm S set
Not prepared Standard specifications
Not prepared
Needle clamp spacer
(accessory parts)
231-24654 Needle gauge size 2.5mm S set
231-24861 Needle gauge size 3.0mm L set
231-24960 Needle gauge size 4.0mm L set
Not prepared Standard specifications
To Next Page
