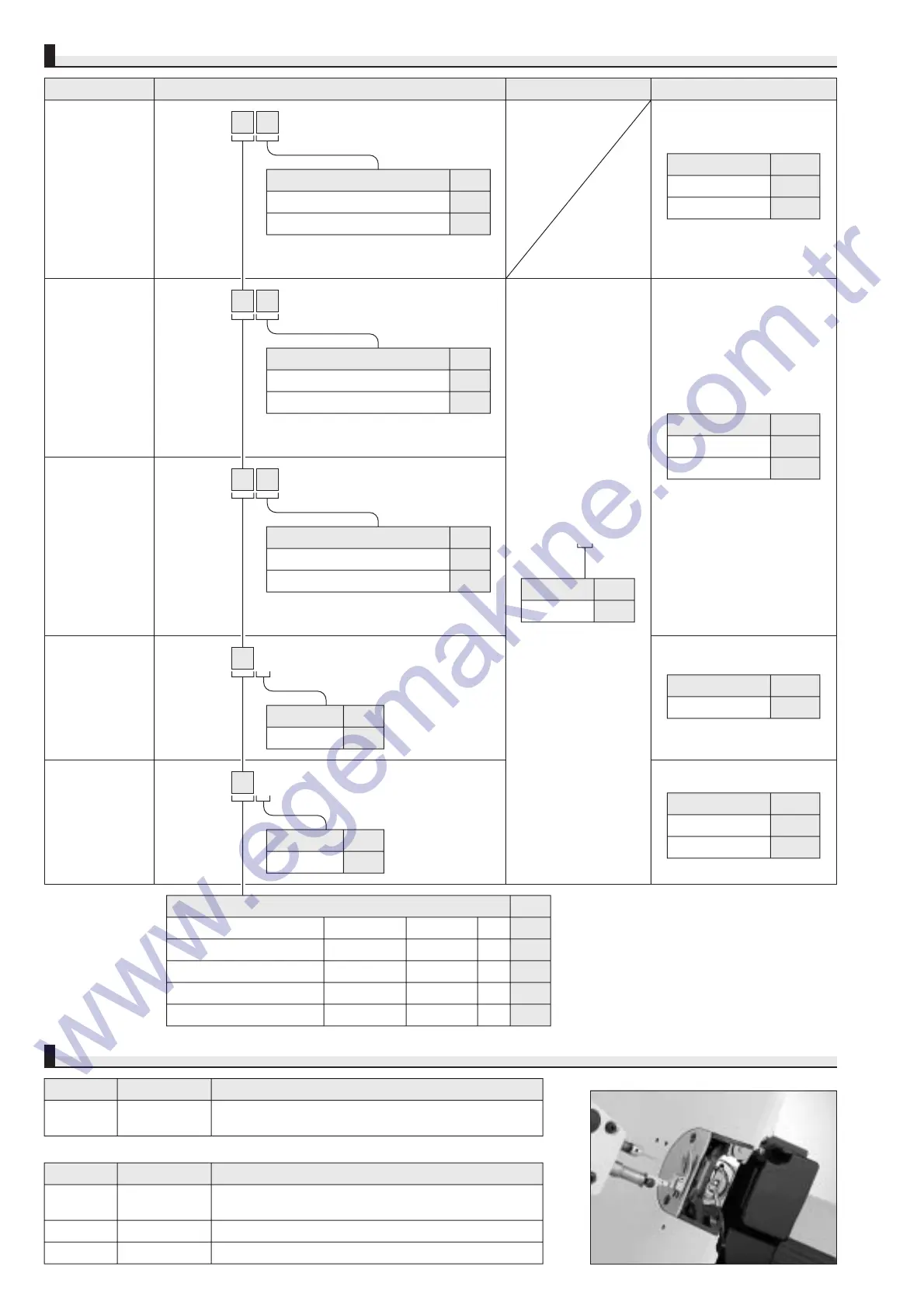

SC-910, SC-380, EC-10B (September, 2003) 2/5
AE-4
OPTIONS
● Remaining bobbin thread detector
PSC BOX/CONTROL PANEL/MOTOR FOR SC
SC910
SC910
SC910
M91S
Operation panel Code
IP-100B IP100B
CP-160D CP160D
Operation panel Code
IP-100C IP100C
CP-160A CP160A
Operation panel Code
IP-100C IP100C
Operation panel Code
IP-100B IP100B
CP-160B CP160B
Pulley belt Code
Standard S
Control box Code
Standard S
Provided with a built-in I/O board A
● Control box provided with a built in I/O board (Code A)
should be selected for the machine head equipped
with the remaining bobbin thread detector (AE-8).
● Control box provided with a built in I/O board (Code A)
should be selected for the machine head equipped
with the remaining bobbin thread detector (AE-4).
● Control box provided with a built in I/O board (Code A)
should be selected for the machine head equipped
with the remaining bobbin thread detector (AE-5).
PSC box Code
For JUS(LA)
＊
Single-phase 100〜120V PFL S
For JUS
＊
, General Export 3-phase 200〜240V PFL D
For General Export Single-phase 200〜240V PFL K
For EU (CE) Single-phase 200〜240V PFL N
For China Single-phase 200〜240V PFL U
＊JUS: North America and Central and South America.
Model name PSC box Motor for SC Operation panel
Control box Code
Standard S
Provided with a built-in I/O board A
Control box Code
Standard S
Provided with a built-in I/O board A
SC910 S
Control box Code
Standard S
SC910 S
Control box Code
Standard S
Part No. Description Feature
400-06080 I/O unit A
To retrofit the AE-4, AE-5 or AE-8 to your existing machine,
an I/O unit A which is separately available, is required.
Model Part No. Application
AE-4 GAE-040000A0
DDL-5550N-7, DDL-8700-7, DLN-5410N-7, DLU-5490N-7,
DLU-5494N-7, DLD-5430N-7, DLM-5400N-7, DMN-5420N-7
AE-5 GAE-050000A0 DDL-5600N-7, DLN-5410NJ-7
AE-8 GAE-080000A0 DDL-9000, DLN-9010
DDL-9000
DLN-9010
DDL-5550N-7
DDL-8700-7
DLN-5410N-7
DLU-5490N-7
DLD-5430N-7
DLM-5400N-7
DMN-5420N-7
DDL-5600N-7
DLN-5410NJ-7
DLU5494N-7
LZ-2282N-7
LZ-2284N-7
LZ-2284NU-7
LZ-2284C-7
LH-31□□-7
＊
＊Except LH-3162-7,
LH-3182-7
