SC-910, SC-380, EC-10B (September, 2003) 4/5
CP-160A, CP-160B
● The EC-10B enables the sewing machine to perform
thread trimming, stop with its needle up/down,
perform automatic reverse feed stitching at sewing start
and sewing end, and perform one-touch reverse feed
stitching with a switch. Needless to say, the number
of reverse feed stitches can be specified.
● A contactless electromagnetic coupling is adopted.
This means that the clutch disc does not require any
maintenance. Furthermore, cooling efficiency is
enhanced, there by preventing the motor from running
at very hot temperatures.
● In addition to the EC-10B's error-identification and signal
input/output checking modes, the machine features a
new resistor pack system for identification of sewing
machine used for improved maintainability.

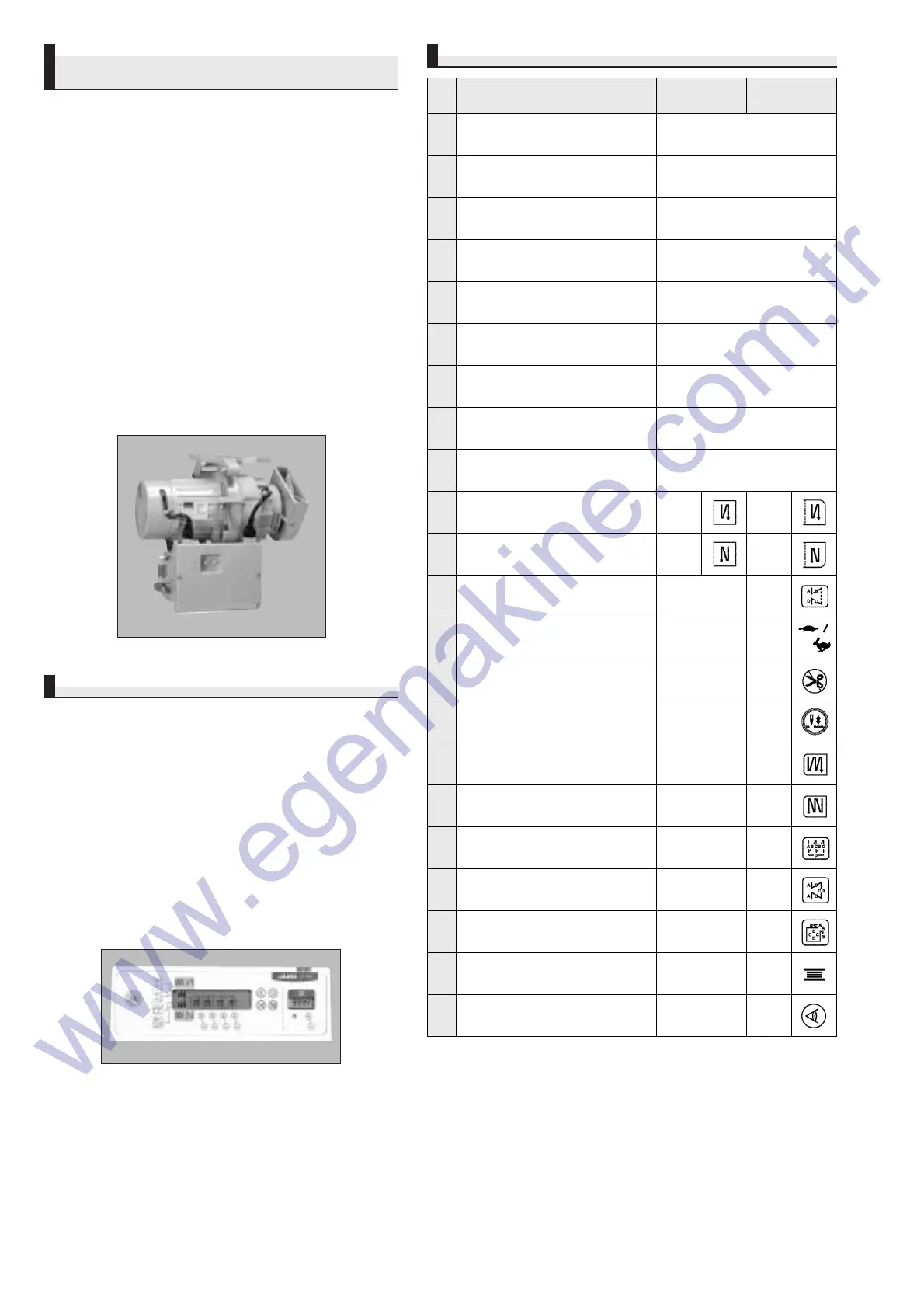

ELECTRONIC-STOP MOTOR/
CONTROL BOX EC-10B
OPERATION PANEL CP-160 (OPTION)
OPERATION PANEL SPECIFICATIONS
● Along with its standard functions, the operation panel
offers users a bobbin thread counter for higher
efficiency and pattern sewing. Functions such as multi-
layer stitching, constant-dimension sewing, and
rectangle stitching.
● The easy-to-read operation panel facilitates function
selection and easy input of sewing data such as the
number of stitches.
● The optional ED-2 material edge sensor can be attached
to the operation panel.
(for 1-needle, lockstitch machine)
● 1-needle, lockstitch machine: CP-160A
● LH-3100 series, LZ-2280N series: CP-160B
EC-10B
○
○
○
△
△
○
○
○
○
Automatic thread trimmer
Automatic back tack function
Wiper
Soft-start
Auto-lifter
Support for sewing machine for
standing use
Stop with needle up/down
Normal stop with needle up
Normal stop with needle down
Automatic back tack stitching at
sewing start
Automatic stitching at sewing end
Back tack pattern switch
Max speed limitation variable resistor
Thread trimming prohibition switch
Needle up/down compensating switch
Double back tack switch for start
Double back tack switch for end
Overlapped stitching pattern switch
Constant-dimension stitching pattern
Programmable seam length
Bobbin thread counter
Material edge sensor
No. Function EC-10B
EC-10B/CP-160
(optional)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
○
○
○
○
○
○
○
○
○
○
○
○
○
○
○
△
△
(0〜15 stitches)
△
●
Specified inside the control box.
＊
●
Operative when the machine is equipped with auto-lifter (AK83: optional).
＊＊
●
Pedal unit (PK-70, or 71: optionally available) for standing work can be attached to
the sewing machine.
＊＊＊
●
Operative when the machine is equipped with a material edge sensor
(ED-2:optional). (for 1-needle, lock stitch machine)
(0〜19
stitches)
＊＊＊
＊
＊＊
