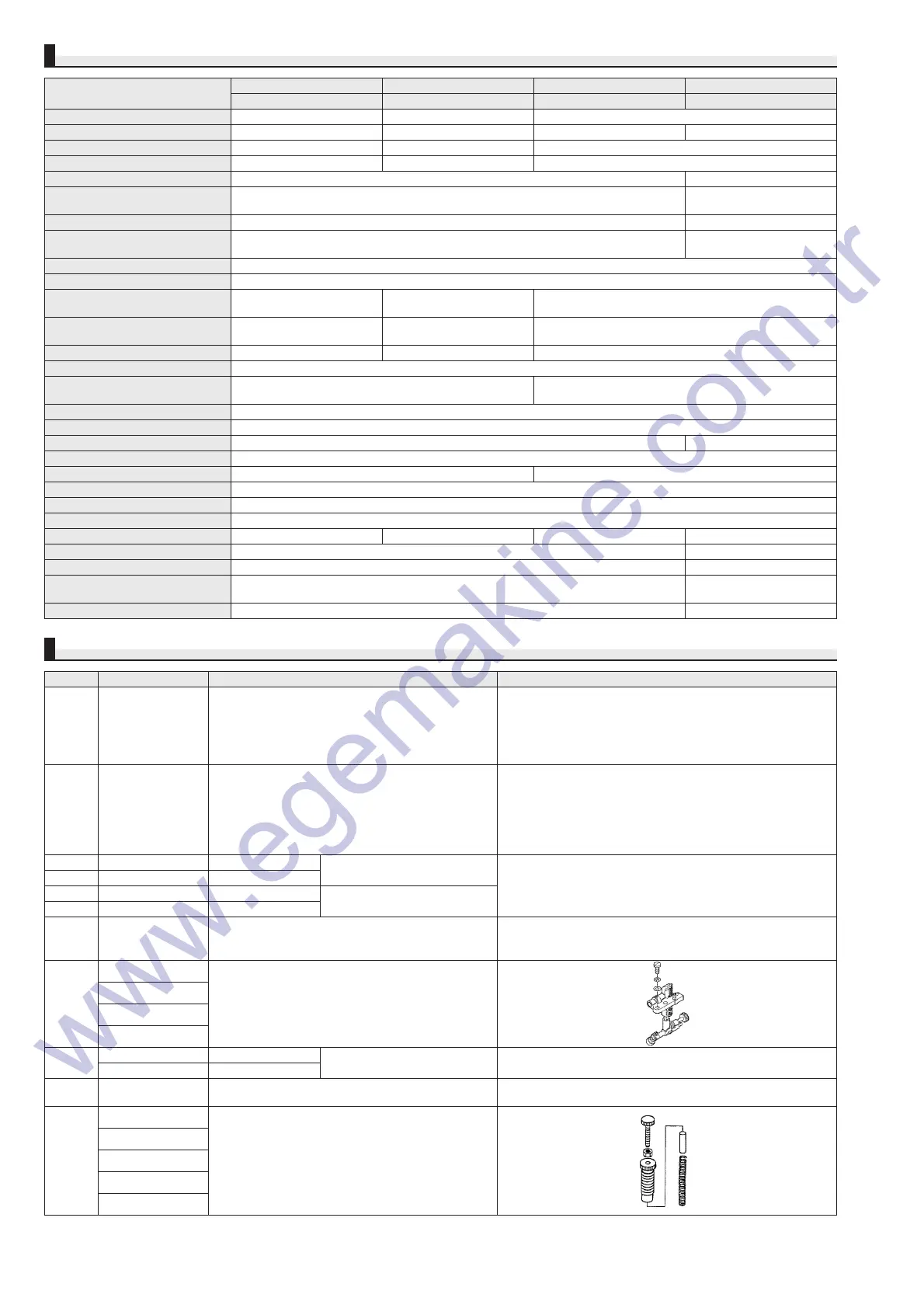

LU-1508NS, 1508NH, 1510N, 1510N-7, 1509NS, 1509NH, 1511N-7 (September, 2003) 2/4
SPECIFICATIONS
OPTIONS
Model name
LU-1508NS, LU-1509NS LU-1508NH, LU-1509NH LU-1510N LU-1510N-7, LU-1511N-7
− − −
With automatic thread trimmer
Application For heavy materials For extra heavy materials For heavy materials
Max. sewing speed 2,500rpm 2,000rpm 2,500rpm 3,000rpm
Max. stitch length 9mm (Normal/Reverse feed) 10mm (Normal/Reverse feed) 9mm (Normal/Reverse feed)
Needle bar stroke 36mm 38mm 36mm
Lift of the presser foot By hand: 9mm, By knee: 16mm (max.) By hand: 9mm, Auto: 16mm
Auto-lifter Option
Provided as standard
(Pneumatic auto-lifter: AK123B)
Alternating vertical movement 2.5〜6.5mm 1〜6.5mm
Dial for adjustment of alternating
vertical movement
− Provided as standard
Thread take-up Slide type
Hook Vertical-axis double-capacity hook
Needle 135×17 Standard 190R or 135×17 135×17
(at the time of delivery) (Nm160) Nm125〜Nm180 (Nm160) Nm125〜Nm200 (Nm160) Nm125〜Nm180
Thread
#30〜#5, B46〜B138, #20〜#1, B69〜B207, #30〜#5, B46〜B138,
Nm=60/3〜20/3 Nm=40/3〜8/3 Nm=60/3〜20/3
Locus of feed Rectangular feed Complete rectangular feed Rectangular feed
Needle thread tension box Dual-tension method
Bottom-feed micro-adjustment
mechanism
− Provided as standard
Pitch changing method By dial
Bobbin thread winder Built on the machine head
Knee-lifter mechanism Built on the machine head −
Safety mechanism Provided as standard (Reset with the push of a button)
Lubrication Centralized oil wick lubrication (hook: automatic) Automatic
Lubricating oil JUKI New Defrix Oil No.2 (equivalent to ISO VG32)
Distance from needle to machine arm
255mm
Bed size 517mm×178mm
Weight of the machine head 42.5kg 44.5kg 43kg 48kg
Automatic reverse feed function Option Provided as standard
Compressed air and air consumption
− 0.5MPa {5kg/F} • 0.3NR/min
Power requirement −
Single-phase 100〜120V, 220〜240V
3-phase 200〜220V, 220〜240V
Power consumption − 550VA
Model Part No. Description
DL21
(G kit)
GDL-21000GA0 For installed after the setup of the machine
AE-10
(Kit A)
GAE-10000AA0 For installed after the setup of the machine
AK119A GAK-A19010A0 Knee switch type
Pneumatic auto-lifter
AK119B GAK-A19010B0 Pedal switch type
AK120A GAK-A20010A0 Knee switch type Pneumatic auto-lifter
AK120B GAK-A20010B0 Pedal switch type (provided with air regulator)
― 213-48552
Pneumatic one-touch type reverse feed stitching device
(provided with air regulator)
H152
MAH-152010A0
Suspended ruler
SS-7151610-SP×2
WP-0621016-SD×2
WP-0610002-KN×2
―
MAY-BL6B10A0 Core dia. 6〜10mm
Piping holder
MAY-BL6B20A0 Core dia. 2〜5mm
PK75 ― 3-pedal unit
―
210-06507
Additional spring for presser bar
NS-6110530-SP
210-06408
210-16101
210-06002×3
Feature
Applicable model: LU-1510N-7, LU-1511N-7
For sewing processes that handle heavy materials or multi-layered
parts of material, the alternating vertical movements of the walking
foot and presser foot can be quickly set to maximum by pressing the
DL switch. The result is beautiful seams free from gathered stitches.
The machine is provided with both hand switch and knee switch.
The bobbin thread remaining-amount detecting device warns the
operator with a buzzing sound and lamp indication of the time for
bobbin thread replacement. This allows the operator to concentrate
on sewing work without concern for the remaining amount of
bobbin thread. Since the device directly detects the bobbin thread
amount remaining, cumbersome setting is no longer required
regardless of the material, thread and process.
Applicable model: LU-1508N, LU-1508HN, LU-1510N, 1509N, 1509NH
Applicable model: LU-1508N, LU-1508HN, LU-1510N, 1509N, 1509NH
＊To use auto-lifter and reverse feed stitching device in combination,
select AK119A or AK119B
―
Applicable model: LU-1510N-7, LU-1511N-7
Highly operable 3-pedal unit for standing work.
