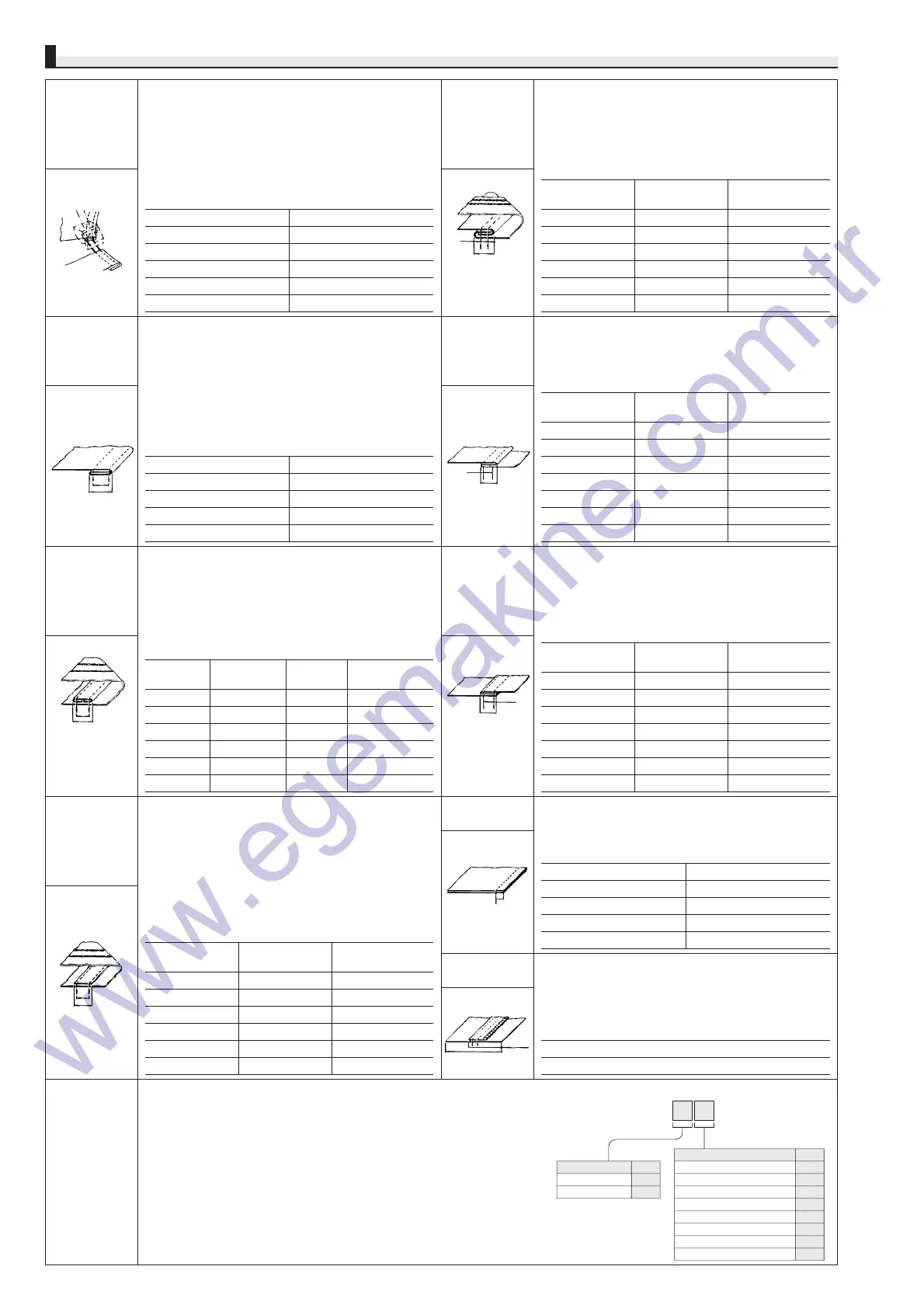

JUKI LS-1300 Series Handbook

MH-380, 382 (September, 2003) 2/3
B
A
A
B
A
B
A
B
A
B
A
B
34mm
50~60mm
● Chain-off
thread cutter
AT-8
● Down turn
hemmer
L050
● Decorative
tape attaching
foot
● Decorative
tape attaching
foot
B050
A: Needle gauge
B: Finished width
A: Needle gauge
B: Finished width
B051
● Tape cutter ■ SPECIFICATIONS ■ WHEN YOU PLACE ORDERS
AT28
A: Needle gauge
B: Finished width
● Lap seam
folder
(Reverse)
M052
A: Needle gauge
B: Finished width
● Left feed top
stitch folder
M054
A: Needle gauge
B: Finished width
● Right feed top
stitch folder
● Superpose
joining guide
● Zipper guide
M055
A: Needle gauge
B: Finished width
Edge allowance:
Max. 20mm
Applicable machines: MH-380, MH-382
Class of work: Jeans, Working wear
Applications: Cut a chaining thread bridging two
workpieces continuously sewn by chainstitch in the way
that a knife blade of the cutter is dropped. Best suited for
continuous sewing on pocket openings of jeans or
working wear.
Applicable machines: MH-380
Class of work: Jeans, Working pants
Applications: Hem jeans hip pocket mouth, especially
suit for sections where high quality straight stitch is
required.
Applicable machines: MH-380
Class of work: Sportswear, Training wear, Swimsuits,
Uniforms, Boxer pants, Rompers
Applications: Stitch accent line attach tapes
Materials: Cotton bias tape, or plain woven tape for
some limited process.
Applicable machines: MH-380
Class of work: Ladies’ wear, Children’ wear, Sportswear,
Uniforms
Applications: Attach decorative tapes and reinforcement
tapes
Materials: Tape: Synthetic suede cloth tape, decorative
tape, plain woven tape. Contact us for special type of
tapes.
Finished
width (mm)
17
15
12
10
8
6
Needle gauge
mm (in)
12.7 (1/2)
9.5 (3/8)
7.9 (5/16)
6.4 (1/4)
4.8 (3/16)
4.0 (5/32)
Tape width
(mm)
34
30
24
20
16
14
Part No.
MAB-0500SLA0
MAB-0500QKA0
MAB-0500MHA0
MAB-0500KFA0
MAB-0500HDA0
MAB-0500GCA0
Applicable machines: MH-380
Class of work: Jeans, Working pants, Pants, Overalls
Applications: Sew side seams
Materials: Medium heavy-weight materials and heavy-
weight materials such as denim, drill, etc.
Applicable machines: MH-380
Class of work: Jeans, Working pants, Jackets, Skirts
Applications: Sew side seams.
Attach flat faces of garments.
Applicable machines: MH-380
Class of work: Jeans, Working pants, Jackets, Skirts
Applications: Sew side seams.
Attach flat faces of garments.
Applicable machines: MH-380
Class of work: Jeans, Working pants
Applications: Sew zippers on left files
Materials: Medium-weight materials such as jeans denim,
cotton gabardine, drill etc.
Applicable machines: MH-382
Applications: Used with lockstitch machines or chainstitch
machines to sew side seam, and similar runstitch & joining
edge of garments with different curve lines
DEVICES AND ATTACHMENTS
Applicable model : MH-380 (Cannot be use with the thread
trimmer type.)
Operating method:Air drive by air switch
Applications :Cutting various tapes related to attaching
reinforcement tape and decorative tape
Cut specifications :Knife width 20mm
Cutting range of the knife 16mm or less
Air pressure : 0.15~0.5 MPa
(1.5~5.0kgf/cm
2
)
Code
A
B
Code
B
C
D
E
F
H
K
L
Switch
Finger switch
Knee switch
AT28
Needle gauge mm (in)
3.2 (1/8")
4.0 (5/32")
4.8 (3/16")
5.6 (7/32")
6.4 (1/4")
7.9 (5/16")
9.5 (3/8")
12.7 (1/2")
＊Needle gauges, 1/8,
5/32, 3/16, 3/8 and
1/2, should be
specially orderd.
Finished width (mm)
14
12
11
10
Guide width mm (in)
Tandem 2-needle
4.0 (5/32)
4.8 (3/16)
6.4 (1/4)
7.9 (5/16)
Part No.
GAT-080000AC
GAT-08000CAC
GAT-08000DAC
GAT-08000FAC
GAT-08000HAC
Part No.
MAL-0500P0A0
MAL-0500M0A0
MAL-0500L0A0
MAL-0500K0A0
Type
Light-weight material
Medium-weight material
Heavy-weight material
Spacer (assy.)
Part No.
MAH-027000AA
MAH-027000AB
MAH-027000AH
MAH-025020A0
Finished width
(mm)
17
14
12
10
10
9
Finished width
(mm)
17
14
12
10
10
9
8
Part No.
MAM-0520S0A0
MAM-0520P0A0
MAM-0520M0A0
MAM-0520K0A0
MAM-0520K0A0
MAM-0520J0A0
Needle gauge
mm (in)
12.7 (1/2)
9.5 (3/8)
7.9 (5/16)
6.4 (1/4)
5.6 (7/32)
4.8 (3/16)
Needle gauge
mm (in)
12.7 (1/2)
9.5 (3/8)
7.9 (5/16)
6.4 (1/4)
5.6 (7/32)
4.8 (3/16)
4.0 (5/32)
Part No.
MAM-0540S0A0
MAM-0540P0A0
MAM-0540M0A0
MAM-0540K0A0
MAM-0540K0A0
MAM-0540J0A0
MAM-0540H0A0
Finished width
(mm)
17
14
12
10
10
9
8
Needle gauge
mm (in)
12.7 (1/2)
9.5 (3/8)
7.9 (5/16)
6.4 (1/4)
5.6 (7/32)
4.8 (3/16)
4.0 (5/32)
Part No.
MAM-0550S0A0
MAM-0550P0A0
MAM-0550M0A0
MAM-0550K0A0
MAM-0550K0A0
MAM-0550J0A0
MAM-0550H0A0
Finished width
(mm)
17
15
12
10
9
8
Needle gauge
mm (in)
12.7 (1/2)
9.5 (3/8)
7.9 (5/16)
6.4 (1/4)
5.6 (7/32)
4.8 (3/16)
Part No.
MAB-0510SLA0
MAB-0510QKA0
MAB-0510MHA0
MAB-0510KFA0
MAB-0510JEA0
MAB-0510HDA0
Part No.
MAQ-020000A0
