3)

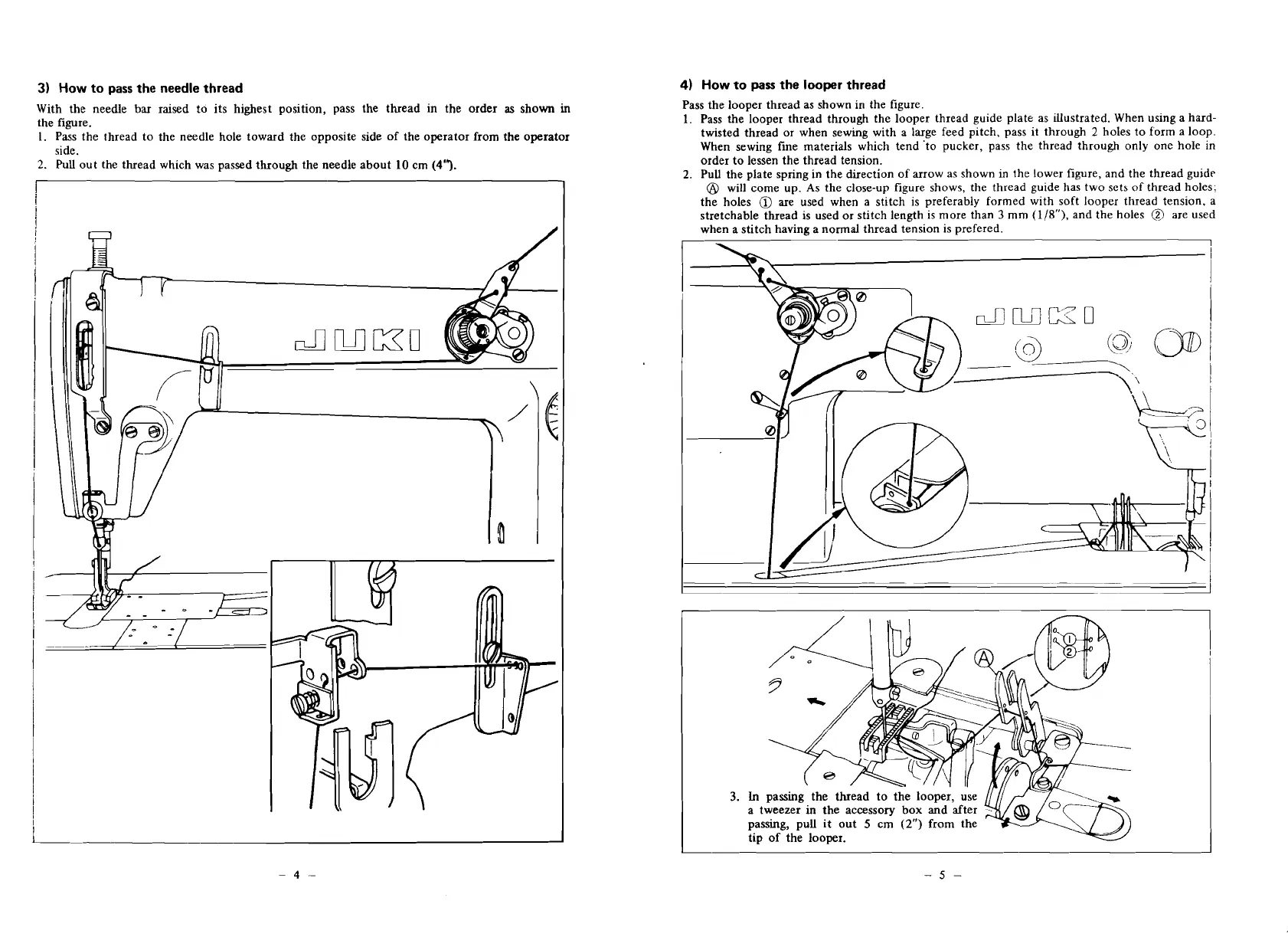

How to pass the needle thread
4)
How to
pass
the looper thread
With the needle bar raised to its highest position, pass the thread in the order
a.
shown
in
the figure.
1. Pass the thread to the needle hole toward the opposite side of the operator from the operator
side.
2.
Pull out the thread which was passed through the needle about
10
cm
(4"').
Pass the looper thread as shown in the figure.
1.
Pass the looper thread through the looper thread guide plate as illustrated. When using a had-
twisted thread or when sewing with a large feed pitch, pass it through
2
holes to form a loop.
When sewing fine materials which tend 'to pucker, pass the thread through only one hole in
order to lessen the thread tension.
2.
Pull the plate spring in the direction of arrow as shown in the lower figure, and the thread guide
@ will come up. As the close-up figure shows, the thread guide has two sets of thread holes;
the holes
@
are used when a stitch is preferably formed with soft looper thread tension. a
stretchable thread is used or stitch length is more than
3
mm
(1/8"),
and the holes
@
are used
when a stitch having a normal thread tension is prefered.
3.
In
passing the thread to the looper, use
a tweezer in the accessory box and
passing,
pull it out
5
c&
(2")
from the
tip of the looper.
