1 mm
1 mm
0.1 mm
0.1 mm

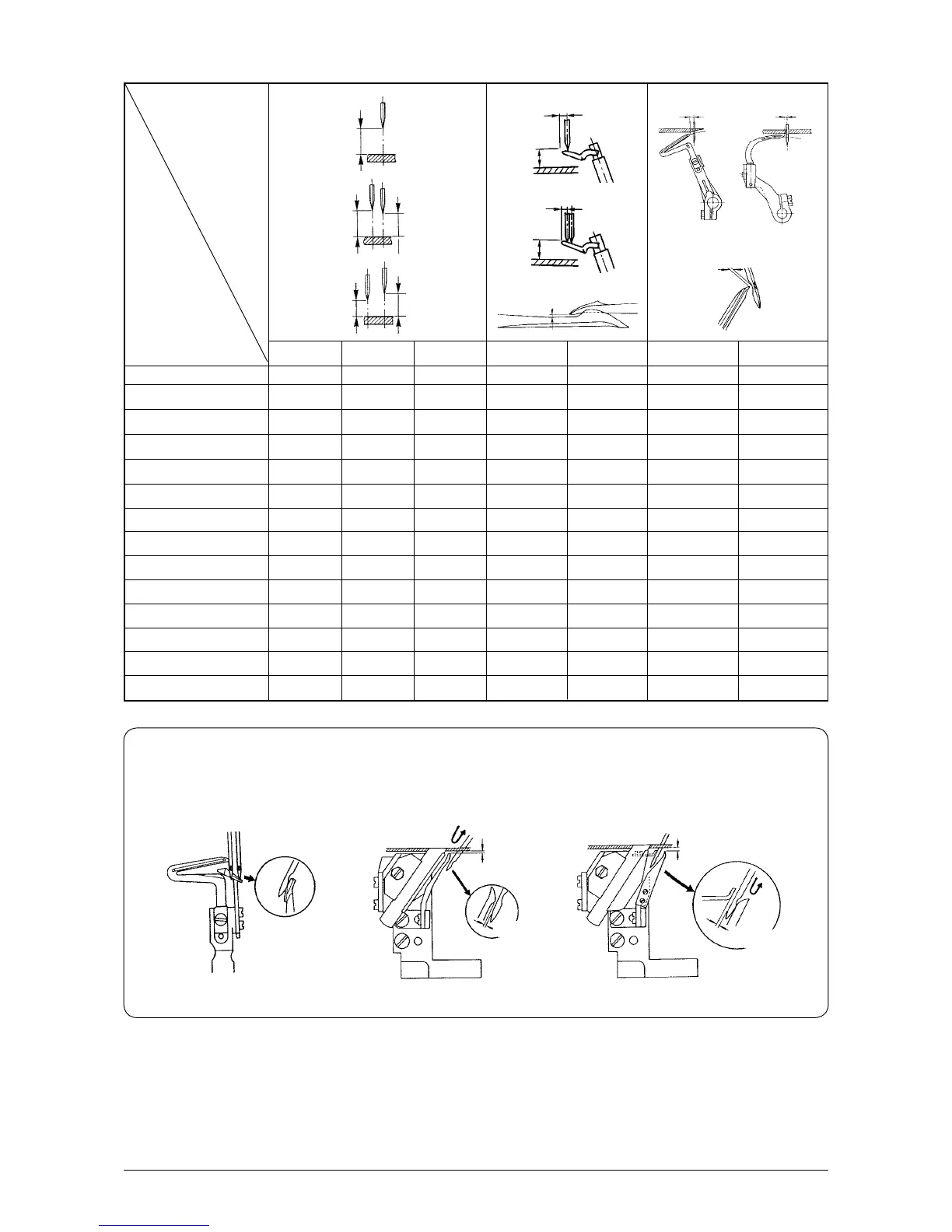

針受け関係 /
Needle guard components / Nadeluntersetzer und die damit verbundenen Bauteile /
Garde-aiguille et pièces connexes / Protector de aguja y componentes relacionados /
Riparo dell’ago ed i componenti attinenti /
针座关系 / İğne koruyucu parçalar
(Unit : mm)
A B C D E F G
MO-6704D-0A
△
-150 10.5 – – 11.0 4.0 4.0 –
MO-6705D-0
△△
-210 10.5 – – 11.0 4.0 4.0 –
MO-6704D-0
△△
-300 10.5 – – 11.0 4.0 3.8 –
MO-6704D-0
△△
-307 10.5 – – 10.3 4.4 3.8 –
MO-6704D-0
△△
-40H 11.3 – – 11.3 4.4 3.8 –
MO-6704D-0F6-50H 11.3 – – 11.3 4.4 3.8 –
MO-6714D-B
△△
-
△
07 10.5 9.1 – 10.3 4.4 3.8 –
MO-6714D-B
△△
-
△△
H 11.3 9.9 – 10.5 4.8 4.0 –
MO-6712D-DF6-50
△
11.0 9.4 – 11.0 3.6 2.2 –
MO-6714D-B
△△
-30P 10.5 9.1 – 10.3 4.4 3.8 –
MO-6716D-
△△△
-300 10.5 – 9.8 11.0 4.0 3.8 1.5 – 1.7
MO-6716D-FF6-307 10.5 – 9.8 10.3 4.4 3.8 1.5 – 1.7
MO-6716D-
△△△
- 11.3 – 10.6 11.3 4.4 3.8 1.5 – 1.7
MO-6716D-
△△△
-30P 10.5 – 9.8 11.0 4.0 3.8 1.5 – 1.7
0.01 – 0.1 mm
A
C
A
04
14
16
E
0.05 – 0.2 mm
B
A
G
F
D
E
D
4
△
H
50H
