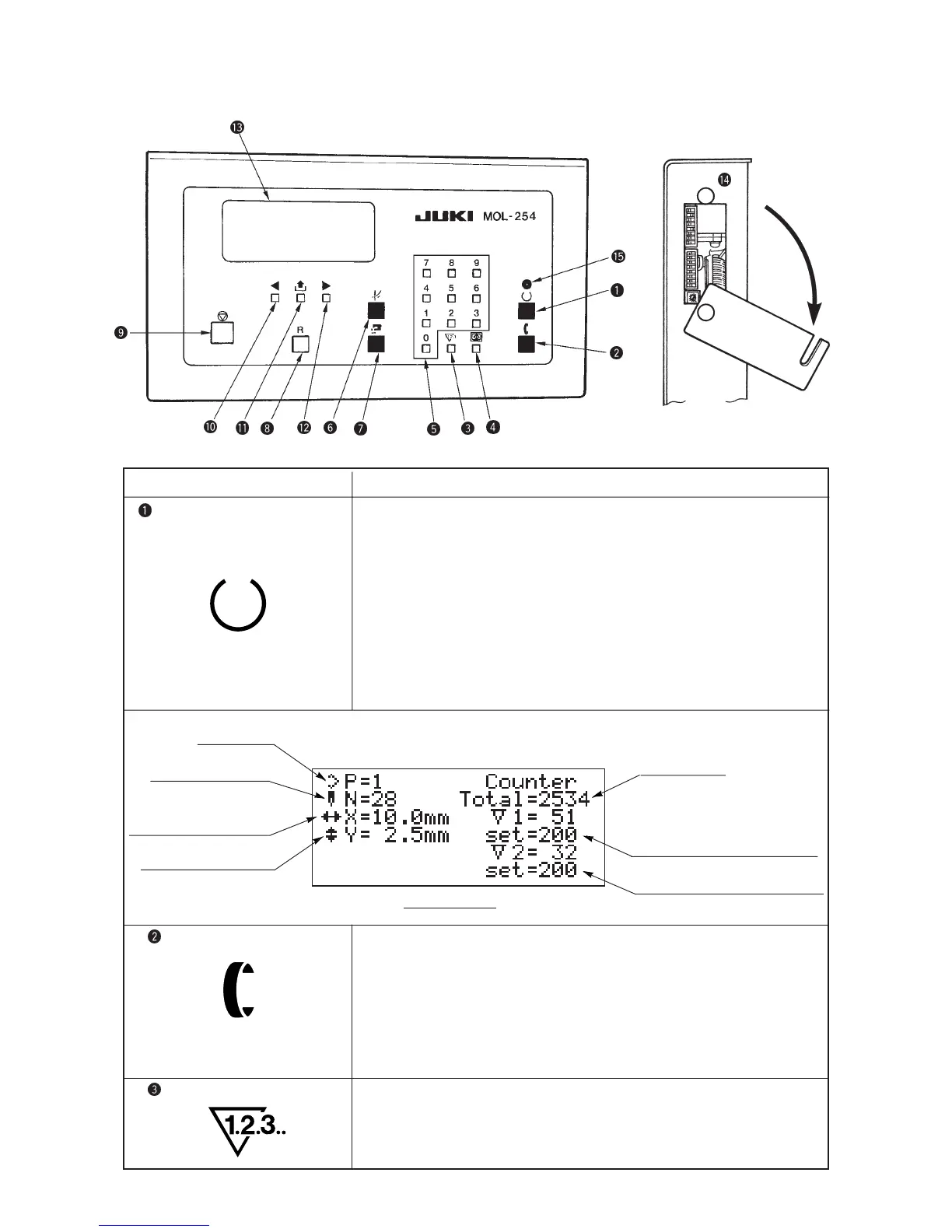

[2] Names and functions of operation box panel
Sewing screen
Pattern No.
Number of stitches
Length of bartacking
Width of bartacking
Total counter
1st hook counter and set value
2nd hook counter and set value
Name of switch Function
Set ready switch This switch is used to perform origin retrieval of the sewing machine and loop
supplying device. The machine is set to the sewing stand-by state. Display
screen moves to sewing screen.
Sewing ready lamp (green) lights up in the sewing stand-by state. When
pressing the set ready switch again, the lamp goes out and the setting screen
appears.
Caution : A hazardous state arises when this switch is turned ON,
since the belt loop supplying device operates at a high
speed. Keep your hands or any other part of your body away
from the area of loop supplying device drive and under the
presser foot of the machine.
Set-back switch
Counter key
a. This switch is used to re-set a belt loop at the stand-by position.
Caution : A hazardous state arises when this switch is turned ON,
since the belt loop supplying device operates at a high
speed. Keep your hands or any other part of your body away
from the area of the belt loop supplying device drive and
under the presser foot of the machine.
b. When selecting step operation, this switch acts as the step-feed switch.
This key is used to enter the counter setting screen.
(Refer to page 33 of the Instruction Manual.)
