JUKI RS-1R Repacking Guide

Packing Guide
2-2

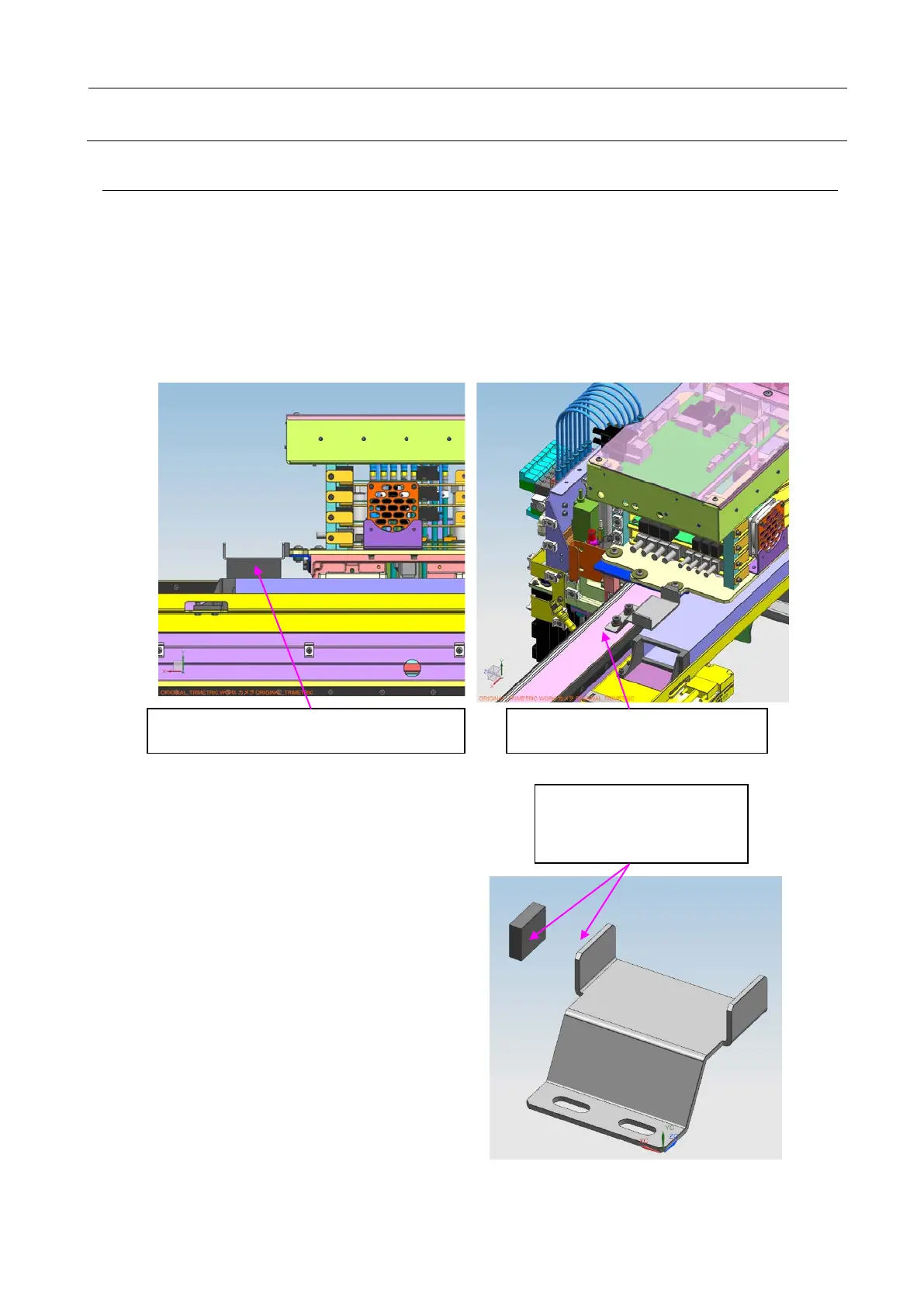

2-2 Securing the Head
1) Attach the set-up caution tag (yellow, part No.: 40087186) to the screw mounting
oval hole part of the X_FIX_BR.
2) Move the head to the leftmost position when viewed from the rear and push it against the
X-stopper rubber.
3) Keep this status and secure the HEAD_TOP_BASE and X-axis frame with the
X_FIX_BR.
Adhere the stopper rubber to the X_FIX_BR and secure the components while pushing
the stopper rubber against the HEAD_TOP_BASE.
Degrease the adhesion surface of the rubber with alcohol.
X STOPPER PLATE (L132E821000) SCREW (SL6061292TN) (2)
X STOPPER PLATE,
surface of the stopper
rubber
