JUKI RS-1R Repacking Guide

Packing Guide
2-1
Chapter 2 X-Y Unit

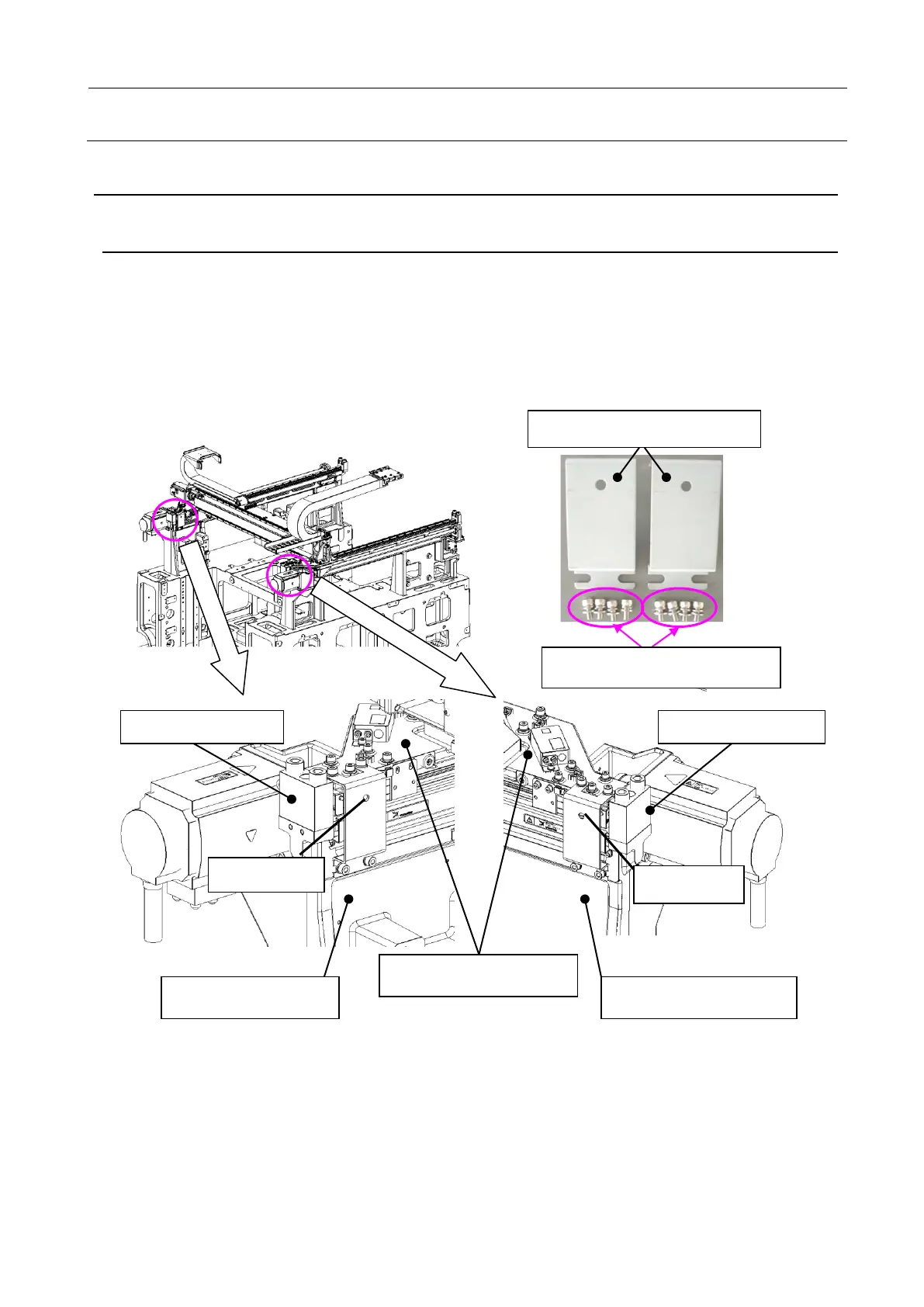

2-1 Securing the X-Axis Frame
1) Put the X_FRAME_END assembly tightly in contact with the Y-stopper assembly and
secure the Y_FIX_BR_3020 to the X_FRAME_END assembly and Y_MOTOR_FRAME
with the screws, and then secure them to the X-axis frame.
After securing, check to make sure that the Y stopper assembly and the X-axis frame end
assembly are in intimate contact with each other.
2) Attach the set-up caution tag (yellow, part No.: 40087186) to the Y_FIX_BR_V2
※左右のＸフレームエンドともに、実施して下さい。
Y_FIX_BR_V2 (40106051)
X_FRAME_END ASM
Caution tag
Caution tag
BASE_FRAME ASM
BASE_FRAME ASM
SCREW (SL6061292TN) (8)
Y_STOPPER ASM
Y_STOPPER ASM
