9.9. Analog inputs/outputs
ALARM
REG+
E-PROG
STAND-BY
In order to use the analog inputs and outputs, the circulator must be
equipped with the electronic module, which is available as option.
Order No. 8 900 100 Electronic module

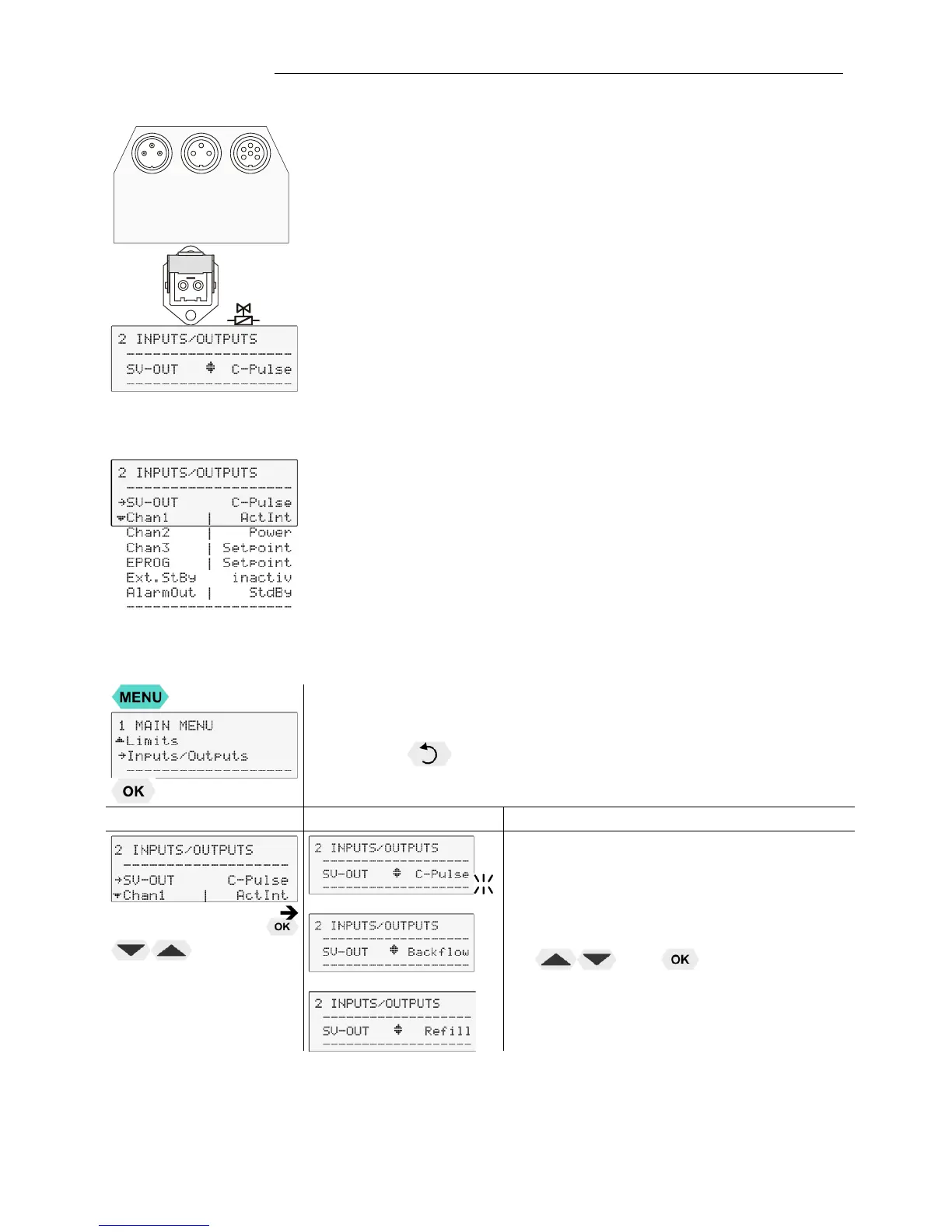

This submenu enables the input and output values to be set for the
programmer input and the temperature recorder outputs of the REG+E-
PROG socket.
The >STAND-BY< input and the >ALARM< output are configurable.
If the electronic module is not installed, this menu can be used only to
switch the control of the solenoid valve (SV).
SV-Output Control connector (14) 230 V max. 1.25 A
Channel 1 voltage output for recorder (V)
Channel 2 voltage output for recorder (V))
Channel 3 current output for recorder (mA)
EPROG external programmer input
External standby Standby input
(for external switch-off)
Alarm output Output for external alarm signal
NOTE:
Channel 2 is pre-configured for the connection of an HST Booster Heater.
Press the key if a parameter is to be retained. (prior to OK)
Level 2 Parameter-Level
or
or
Control output (14) 230 V max. 1,25 A:
Possible parameters:
C-Pulse, Backflow, Refill
The parameter flashes, switch by pressing
and
To Next Page
