REG+E-PROG
Programmer input / temperature recorder output

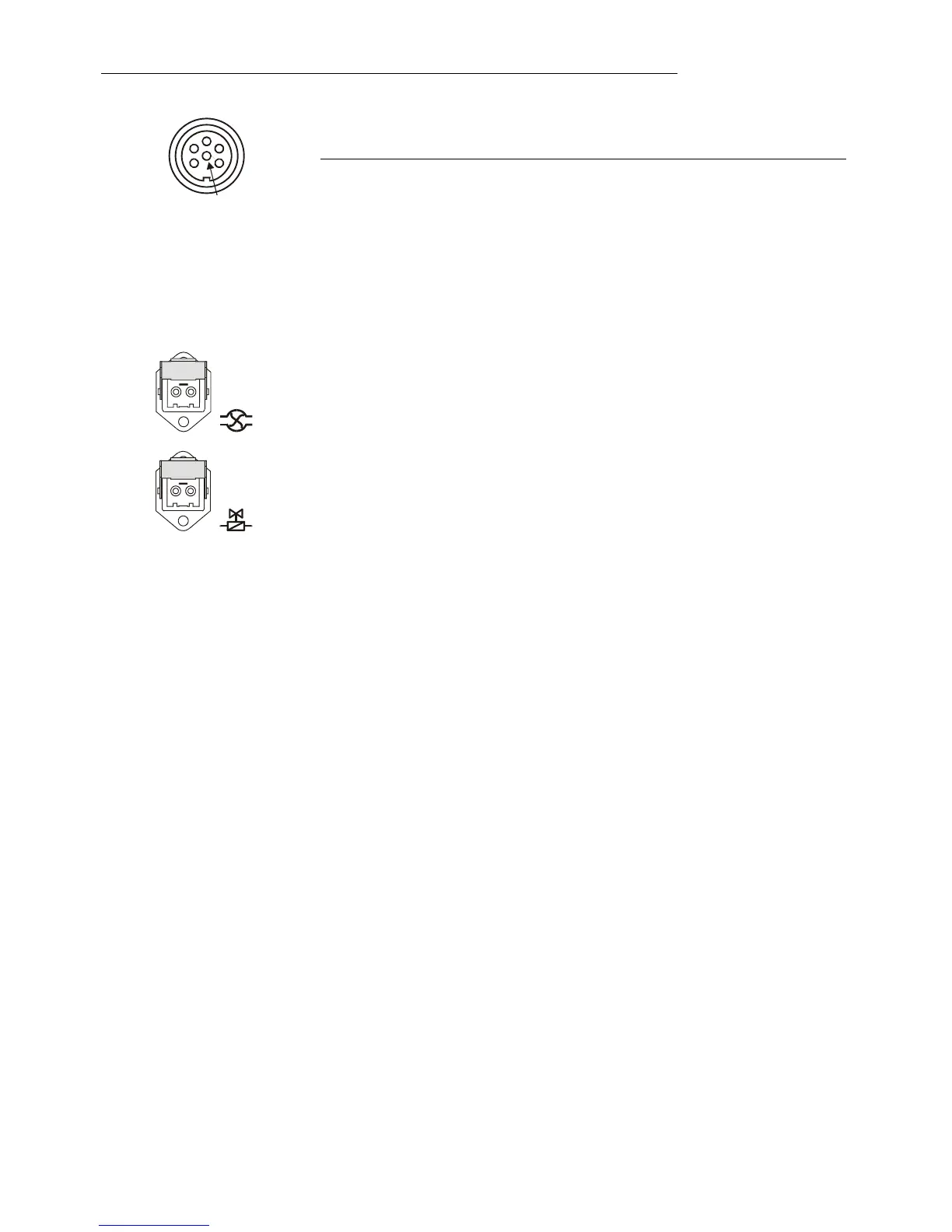

Pin Signal
1 Voltage output Channel 1 0 ... 10 V
2 Voltage output Channel 2 0 ... 10 V
3 GND for outputs 0 V
4 Programmer input EPROG 0 to 10 V / 0 to 20 mA
5 Current output Channel 3 0 to 20 mA / 4 to 20 mA
6 GND for Progammer 0 V
Control connectors (13, 14)
The control output (13) is not powered in the OFF condition.
An external pump motor can be connected.
Output voltage: 230 V / max. 1.25 A
The control output (14) can be adapted to solenoid valves for different
tasks.
