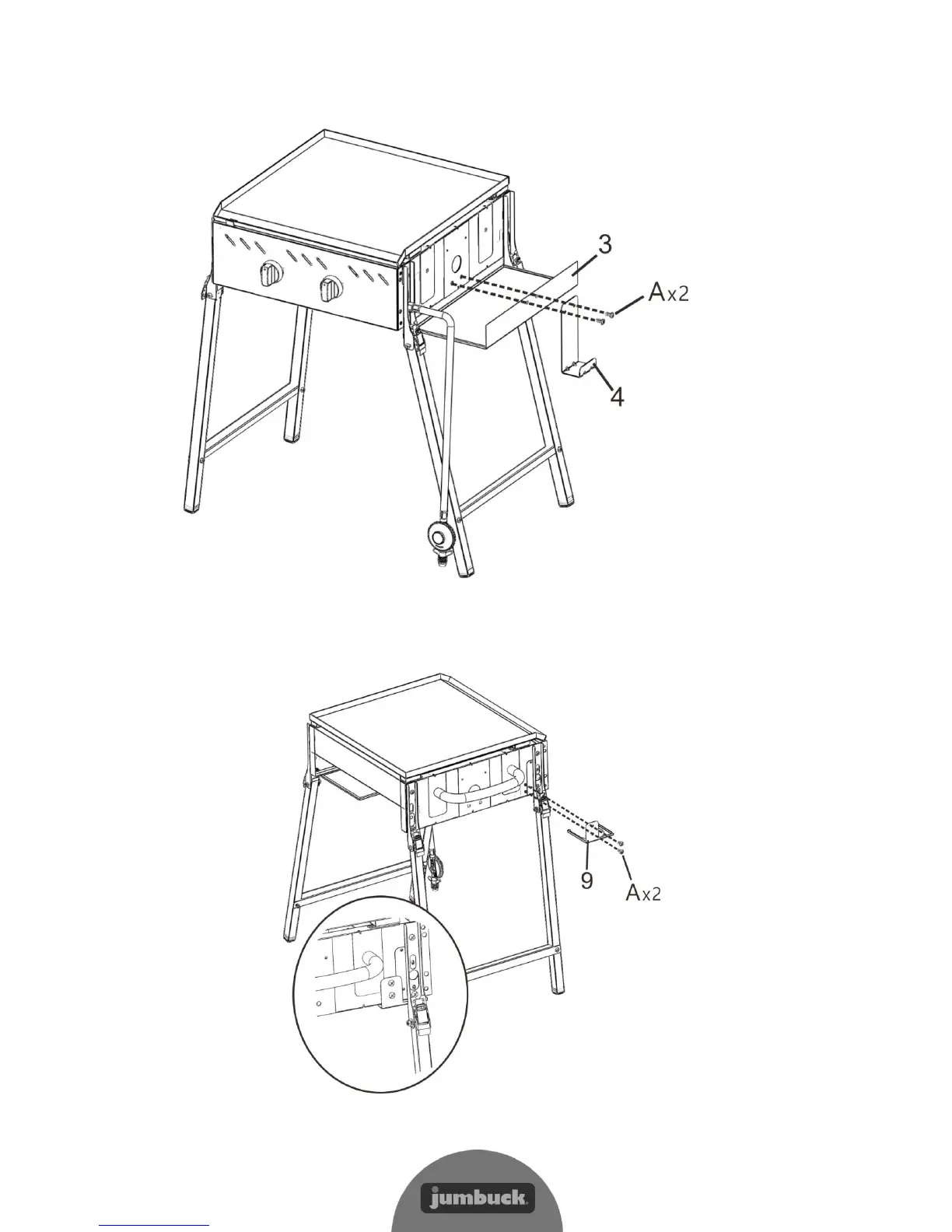

Step 6

Install Cylinder Shield (Part 3) and Cylinder Hook (Part 4) onto BBQ-Body (Part 1) by using M6x15 bolt (Part A x

2) as per illustration below.

Step 7

Install the Oil Cup Support (Part 9) onto the BBQ-Body (Part 1) by using bolt (Part A x 2) as shown below.
