Step 8

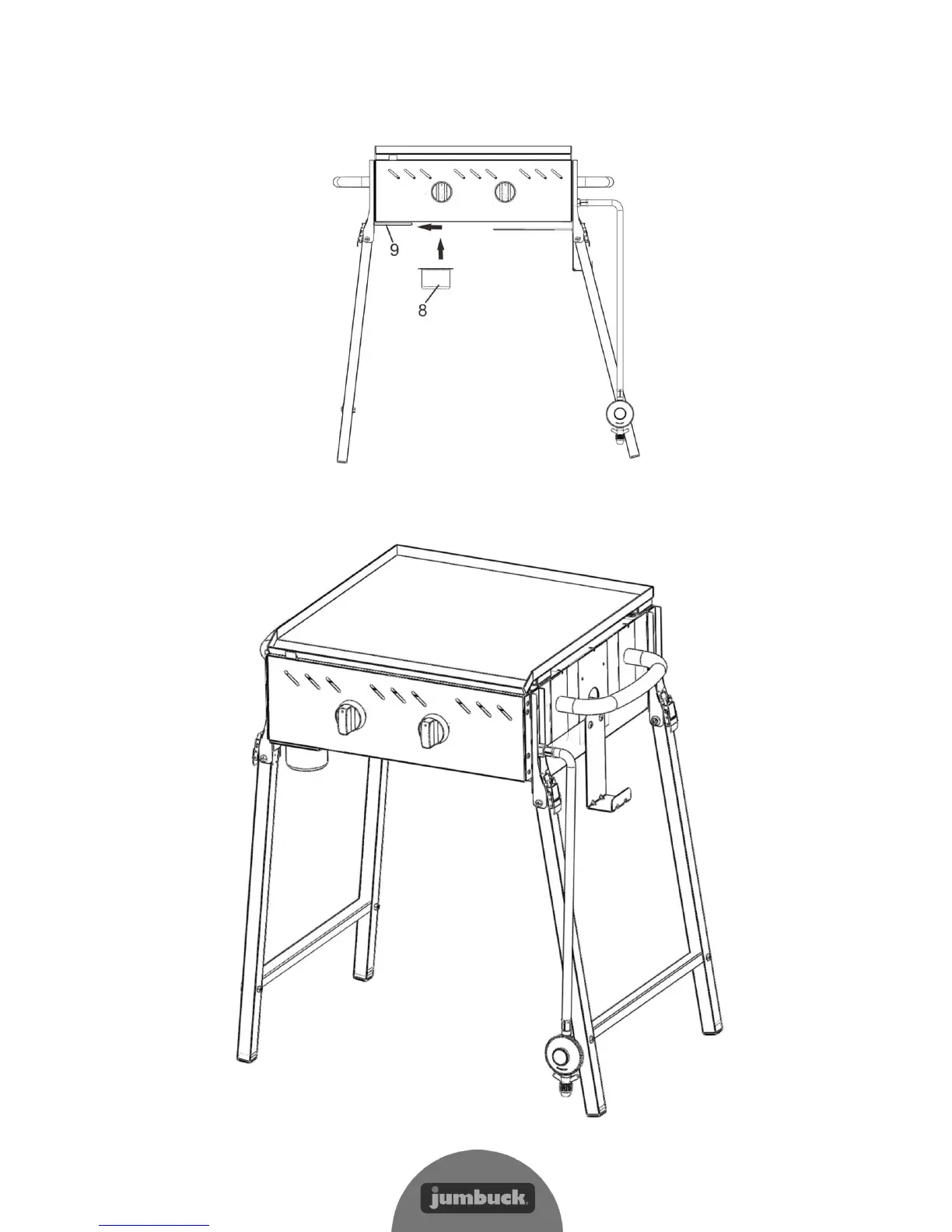

Place Oil Cup (Part 8) onto the Oil Cup Support (Part 9) under the BBQ-Body (Part 1) as per illustration below.
Fully-Assembled
