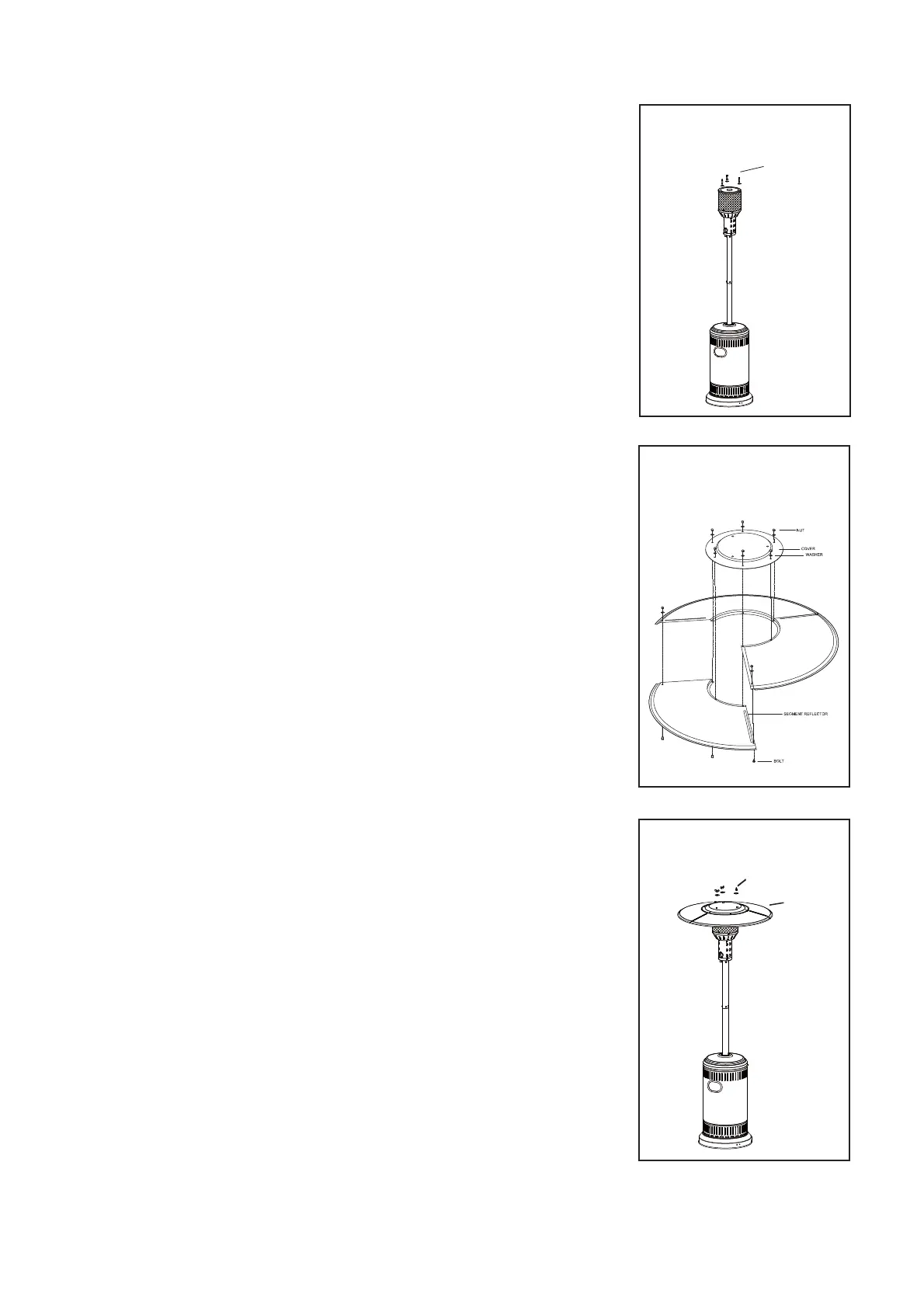

STEP 9
Fasten the reflector with 3 pcs washers and 3 pcs M6 mm wing nuts.
STEP 8
Assemble the 4 piece reflector according to the following sketch.
If your reflector has a protective plastic coating, please remove
before operating the heater.
7-1. Check whether the connection of vertical post and burner are
assembled according to instructions, and all bolts and nuts are
tightened.
7-2. Screw 3 reflector spacers on to burner.
7-3. Put washer Ø6 mm on each reflector spacer.
STEP 7
STEP 7
STEP 8
STEP 9
Reflector flat washer
Reflector
Nut
To Next Page
