3 RTD temperature probe

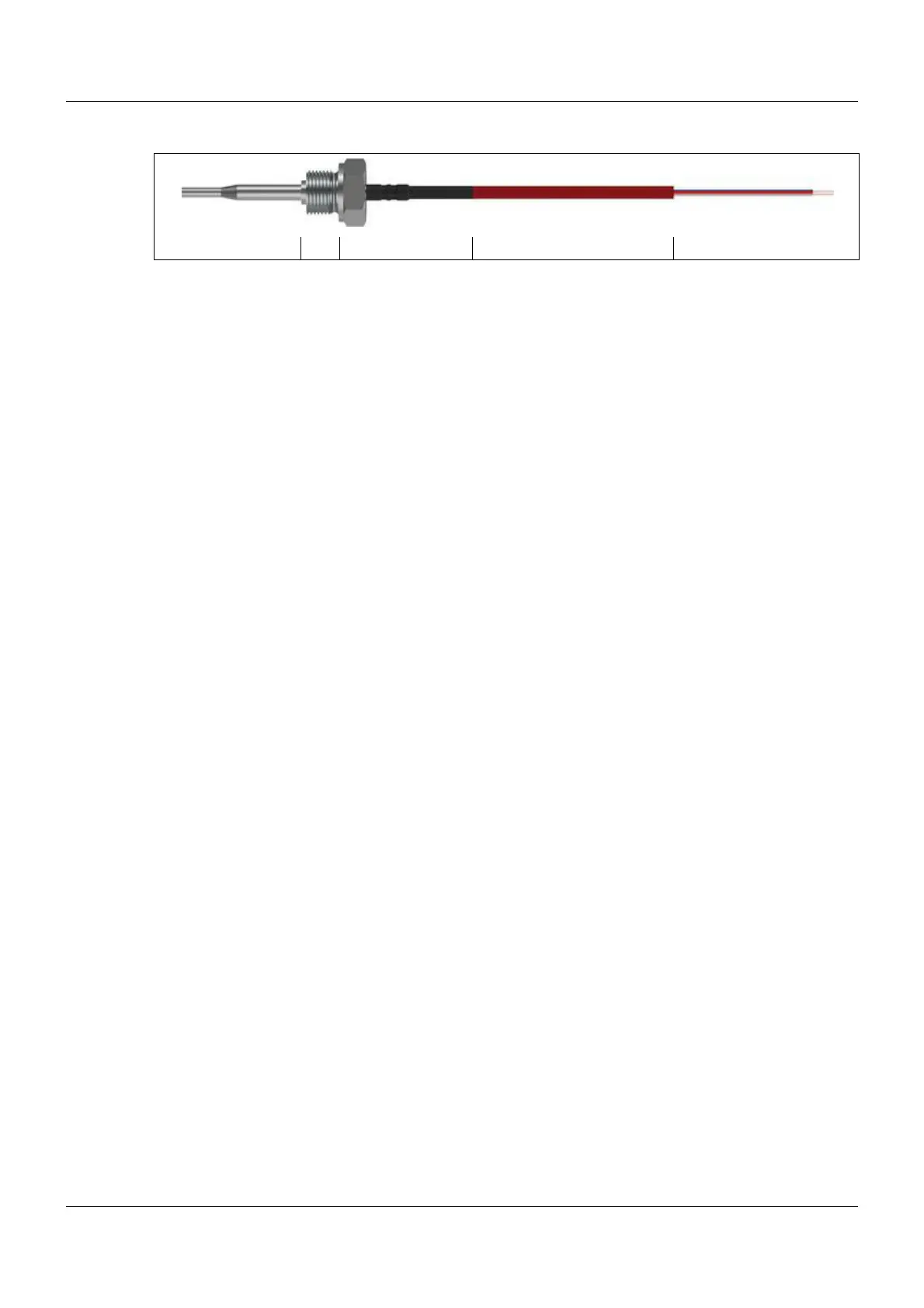

Variant with connection line
A measuring insert can be found in this variant as well.
(1) (2) (3) (4) (5)
(1) Protection tube
• In contact with the process
• Protects the measuring insert against the medium (pressure, flow, etc.)
• On versions with immersion sleeves, the need to open the process can be avoided,
for example to replace the thermometer or measuring insert
(2) Process connection
• Interface with the process
• Thread, flange, etc.
(3) Transition between protection fitting and line
• Used to fasten (strain relief) and seal the line
• Available with bend protection as an optional extra (spring or tube)
(4) Connection line
• For signal transmission
(5) Contacting
• Version as ferrule, connector, etc.
