31
5 Functional test
After the paperless recorder has been installed and wired up, it can be

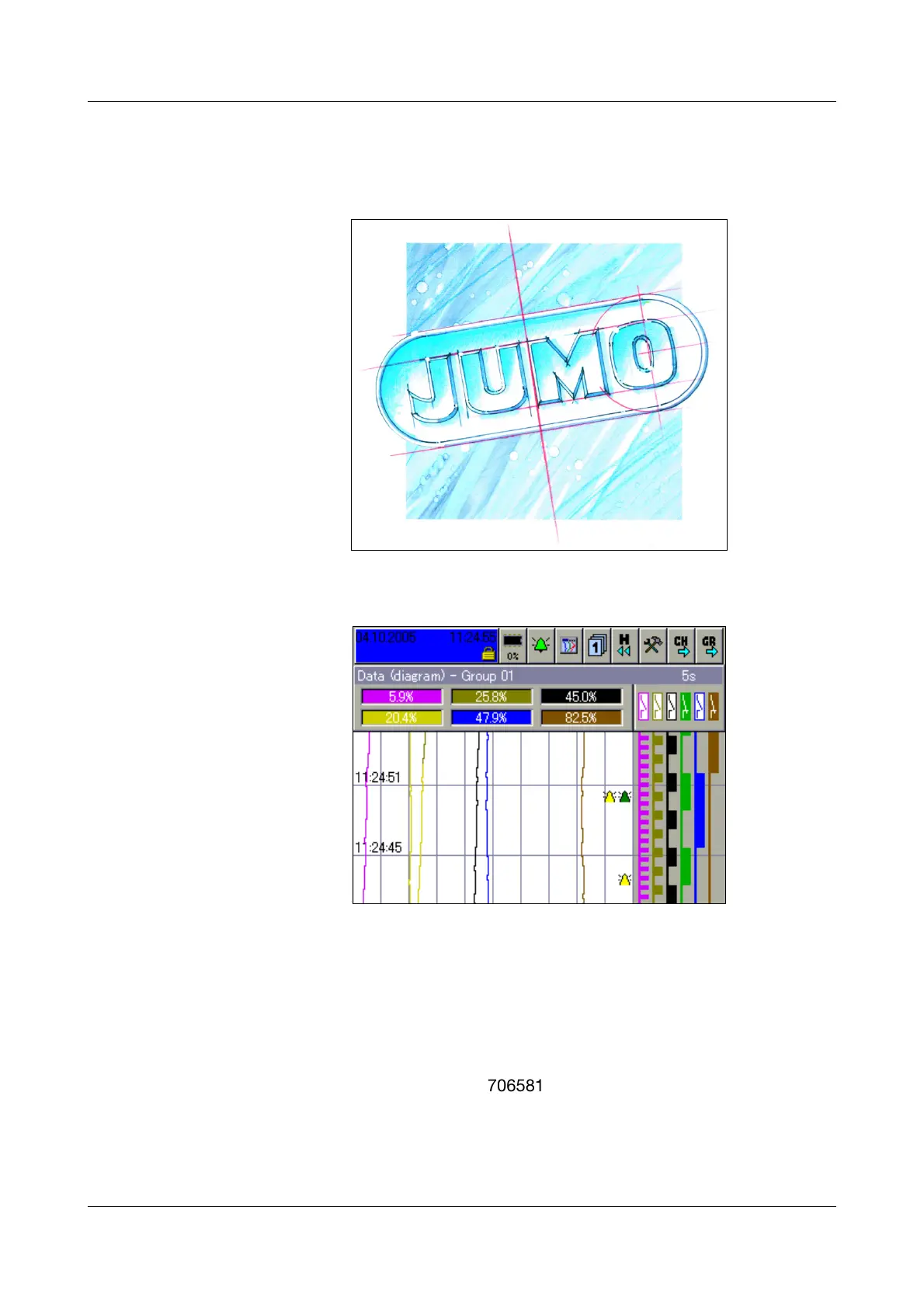

commissioned. After applying or switching on the supply voltage, the start-up
screen will appear for a short time.
Start-up screen
The visualization will start automatically after the initialization phase.
Visualization
The paperless recorder is now in the recording phase.
Further steps
The recorder can be configured by an authorized person, either by
using the touchpad (turn and touch with one finger) or with the
help of the PC setup program.
Further information about configuration can be found in the
Operating Manual B 706581.0.
Finally, make another check that the connection, configuration and
function of the recorder are all correct.
