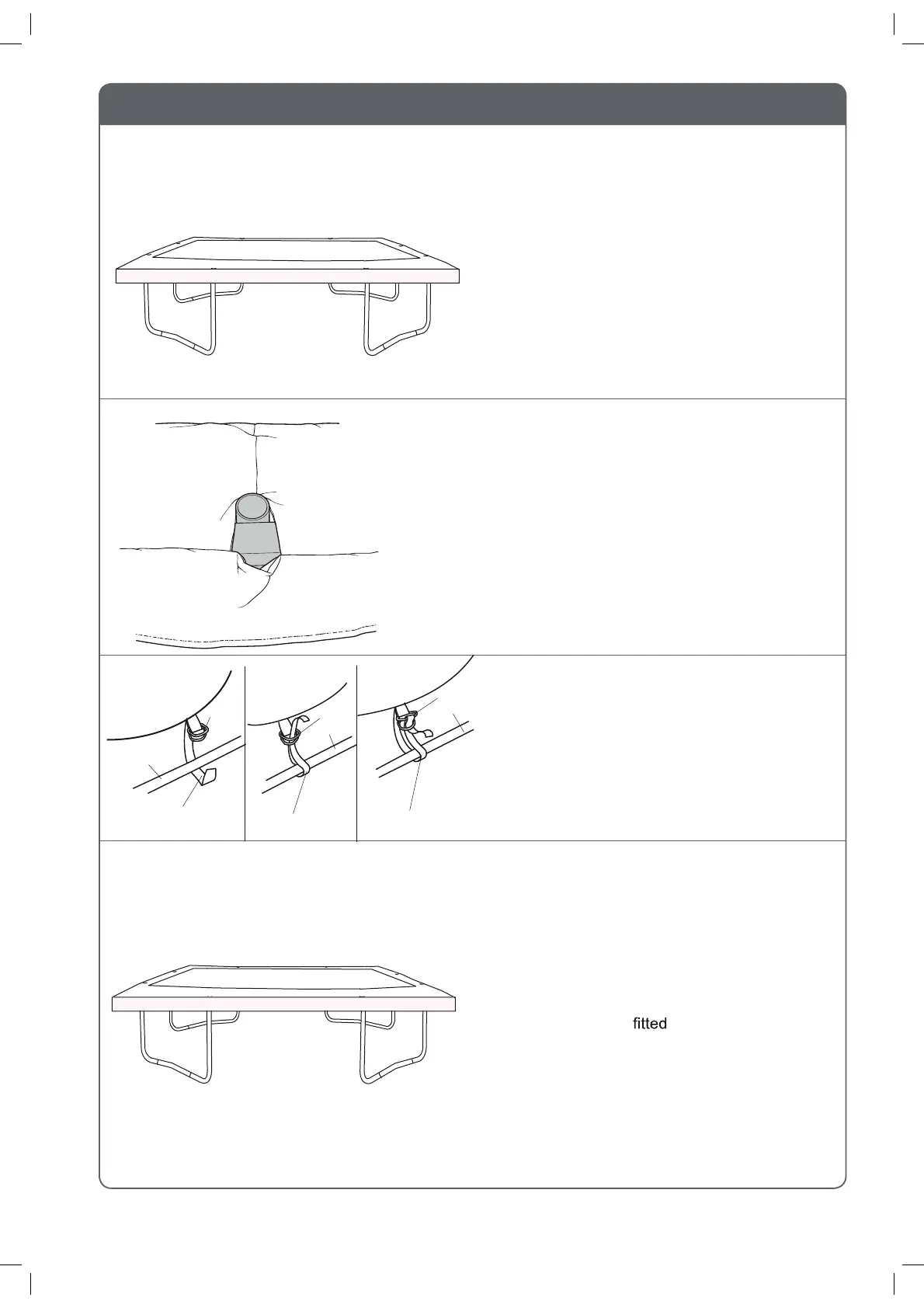

STEP 4 : FITTING THE FRAME PAD
This step will require 2 people.
Lay the frame pad - Part 11 out over the edge of
the frame with the ties facing downwards.
Align the openings in the frame pad with the
T-connector+welded tube's on the frame.
The frame pad is now
and you have
completed step 4.
WARNING: The trampoline MUST NOT be used
during construction.
A
B
C
Frame Pad
Frame Pad
Frame Pad
Top tube
Top tube
Top tube
Webbing
Webbing
Webbing
D-ring
D-ring
D-ring
Look under the trampoline and locate the pairs
of straps near the edge of bed(10) and loop the
See the inset drawing. A, B and C. Repeat this
step with the remaining straps (not shown).
Please note the pad comes in 4 sections.
straps through the D-rings fastening to the
frame.
