4. Note: Use screws (Y2) to assemble the outer legs.
Assemble both outer legs to the outer top rail section
(E,I,J,I).
5. Connect a corner top rail (C or D) to the assembled
middle section.
6. Connect the assembled outer leg to the corner top
rail. Complete each end section by connecting the
remaining corner top rail section.
Note: Check that all screws are in place before
moving on to step 3.
STEP 1: TRAMPOLINE PARTS

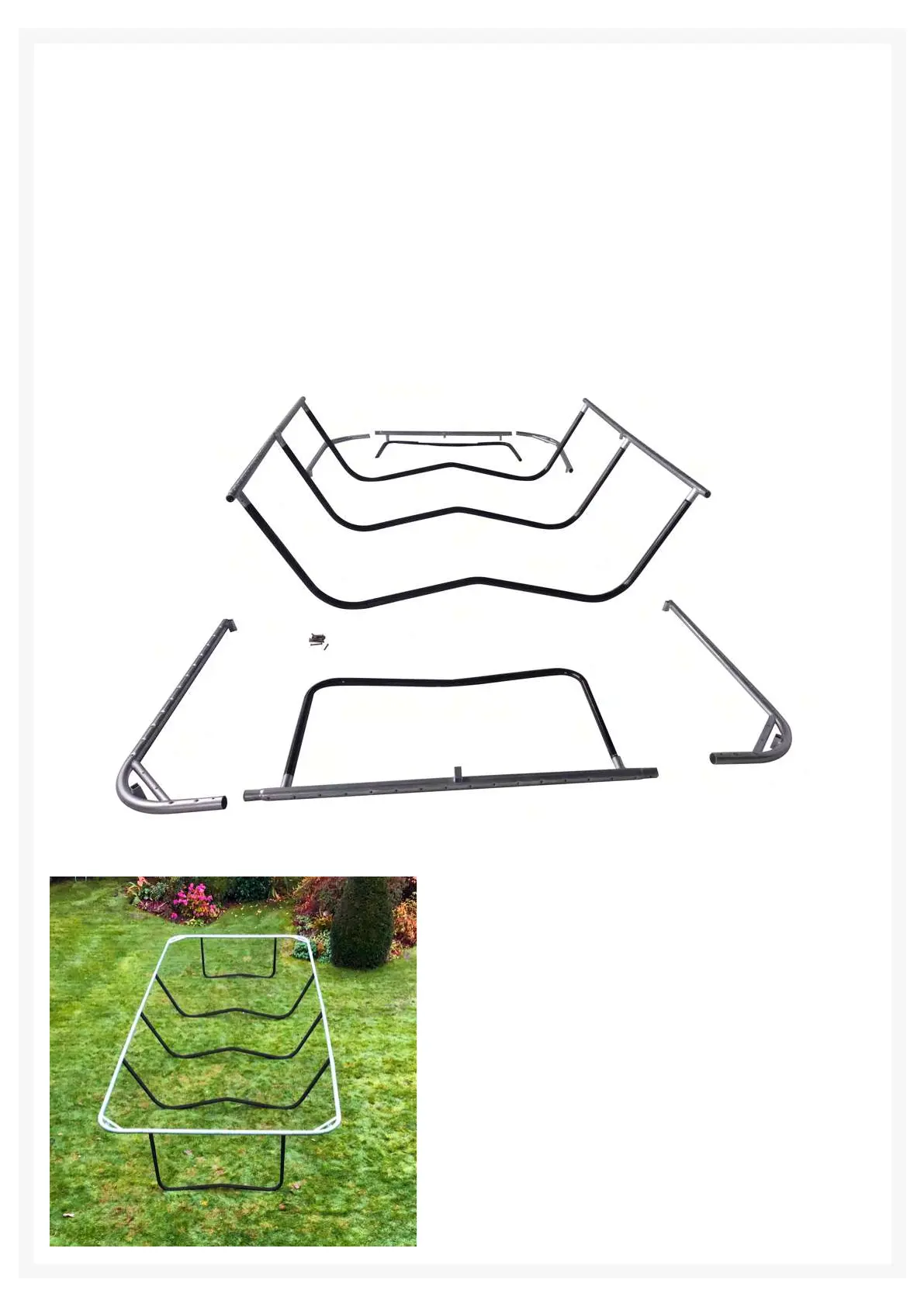

STEP 2: ASSEMBLING THE FRAME
2. Lay out all the frame and leg sections.
3. Note: Use bolts (Y1) to complete the assembly of the middle legs and top rails..
Start by assembling the middle legs (K,L,K)
When all 3 legs are assembled, connect the legs to the centre top rails (F + G).
C
C
D
D
E
E
9
Lay out all the trampoline parts in groups.1.
Check the trampoline parts against the parts listed on pages 6 - 8. Check that you have all the
correct parts you need to build your trampoline. If you are missing any parts DO NOT attempt to build
your trampoline. Please contact our customer service team on: 01342 776 488.
F
IG F
G
K
J
J
L
L
LK
K
K
K
K
I
I
I
Please note: 17ft x 10ft and 15ft x 8ft only have 2 centre legs
